Process plan

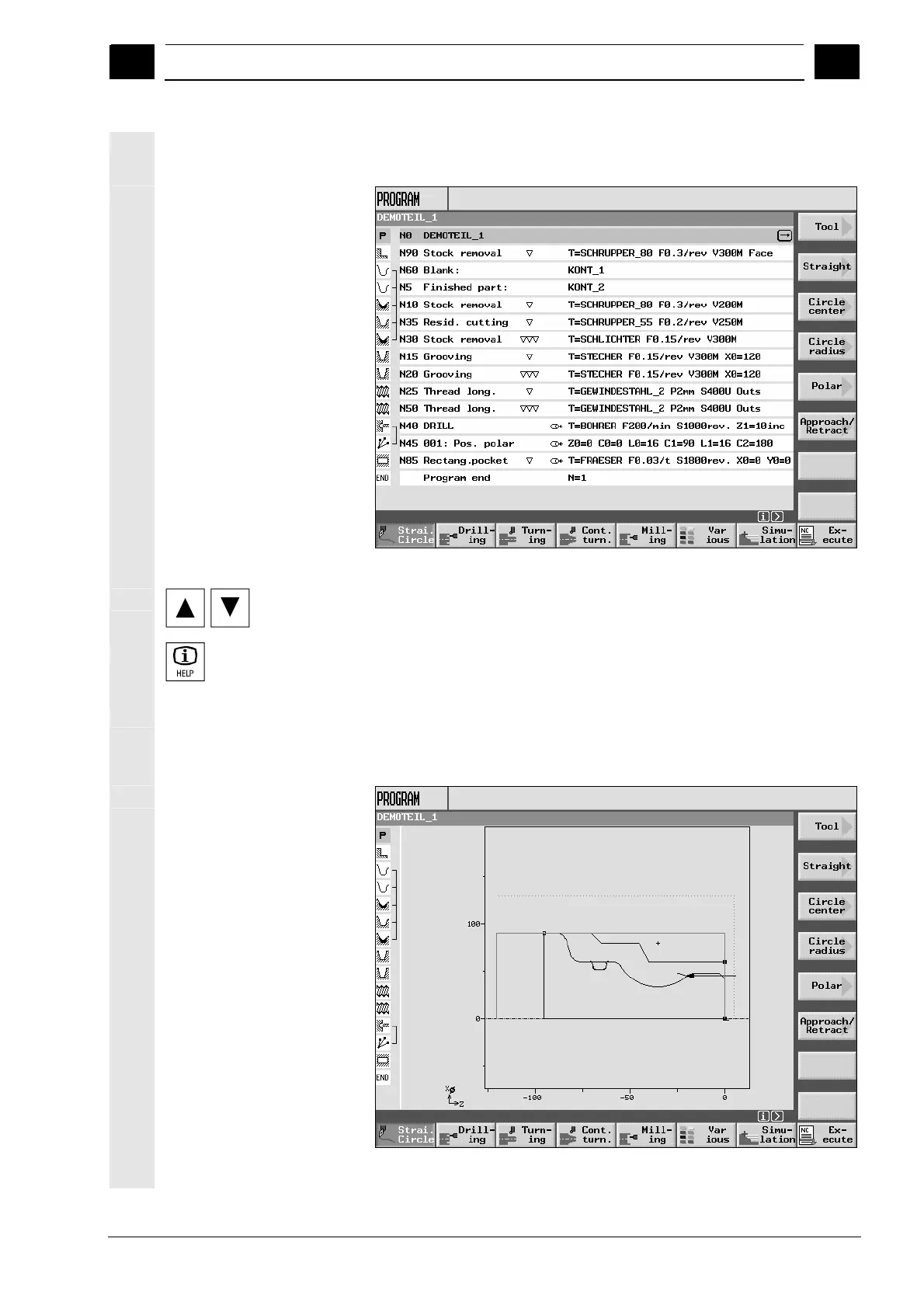

The process plan provides an overview of the separate machining
steps of a program.
Process plan
You can move between the program blocks in the process plan using
the "Cursor up" and "Cursor down" keys.
Use the "Help" key to switch between the process plan and the
programming graphics.
Programming graphics
The programming graphics show the contour of the workpiece as a
dynamic graphic with dashed lines. The program block selected in the
process plan is color-highlighted in the programming graphics.
