Siemens SINUMERIK 808D ADVANCED Training Manual

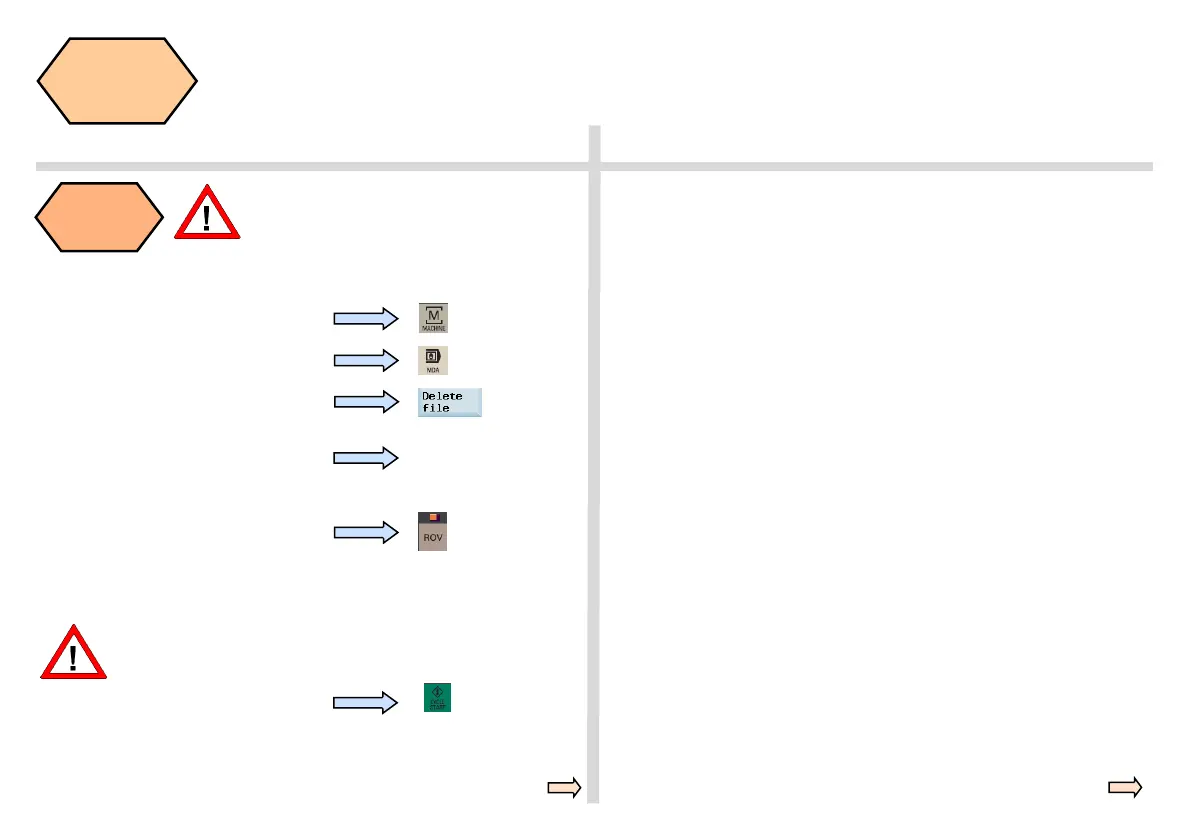

Programming and Operating — Turning Page 22 808D ADVANCED
Tool Setup
s
The tool setup and workpiece setup
must have been performed correctly so
that it can be tested as follows!
Test tool
offset
results
Make sure the feedrate override on the MCP is at 0%!
Note: The ROV function activates the feedrate override switch under the
G00 function.
Press the “MDA” key on the MCP.
Press the “Delete file” SK on the PPU.
Enter the test program recommended
on the right (can also be customized).
G500; select offset
panel as required
T1 D1
G00 X0 Z5
Press the “ROV” key to ensure the
“ROV” function is active (lit up).
Press the “Machine” key on the PPU.
Press “CYCLE START” on the MCP.
Increase the feedrate override gradually to avoid accidents caused by an
axis moving too fast and observe whether the axis moves to the set
position.
In order to ensure the machine safety and correctness, the results of the
tool offset should be tested appropriately.
SEQUENCE
