Siemens SINUMERIK 808D ADVANCED Training Manual

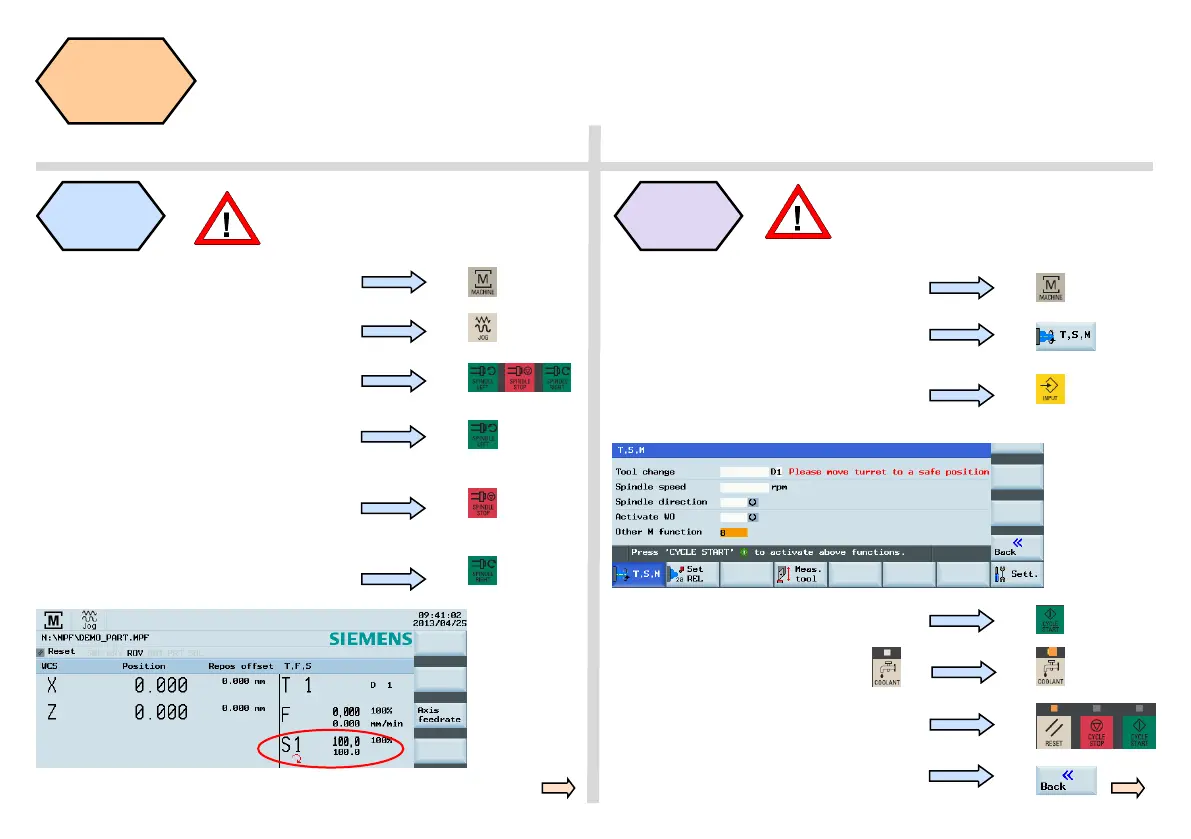

808D ADVANCED Page 21 Programming and Operating — Turning
Tool Setup
s
SEQUENCE
JOG
spindle
A tool must have been loaded and the
turret rotated to the position!
Please make sure all the machine
axes are in safe positions before
executing the M function!
Execute M
function
Press “Spindle stop” on the MCP to stop
the spindle.
Press “Spindle left” on the MCP to start the
spindle in the counter-clockwise direction.
Press “Spindle right” on the MCP to start
the spindle in the clockwise direction.
Press the “Machine” key on the PPU.
Press the “JOG” key on the MCP.
Press the spindle direction key on the MCP
to start/stop the spindle.
Press the “Machine” key on the PPU.
Press the “T.S.M” SK on the PPU.
Use the direction key to move the
highlighted cursor to “Other M
function” and enter “8”. This will
start the coolant.
Press “CYCLE START” on the MCP.
Press the “Back” SK on the PPU.
Press the “Reset” key on the MCP to
stop the coolant function.
The coolant function key on MCP
is active.
