Siemens SINUMERIK 808D ADVANCED Training Manual

Programming and Operating — Turning Page 28 808D ADVANCED
Create Part
Program
Part 1
s
Definition of
target
position
N5 G17 G90 G54 G71
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 X100 Z5
N25 G01 Z-20
N30 Z5
N35 G00 Z500 X100
G90
Absolute positioning;
with G90 at the
beginning of the
program, the geometry
data which follows will
be interpreted relative to
the active zero point in
the program, usually
with G54 or G500 or
G500 + G54.
N5 G17 G90 G54 G70
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 X3.93 Z0.196
N25 G01 G91 Z-0.787
N30 Z0.196
N35 G00 G90 Z19.68 X10
G91
Relative positioning;
with G91 you can add
an incremental value
(G91 defined data is the
relative positioning
using the present
position as the start
point).
Finally you should
change the program to
absolute positioning with
G90.

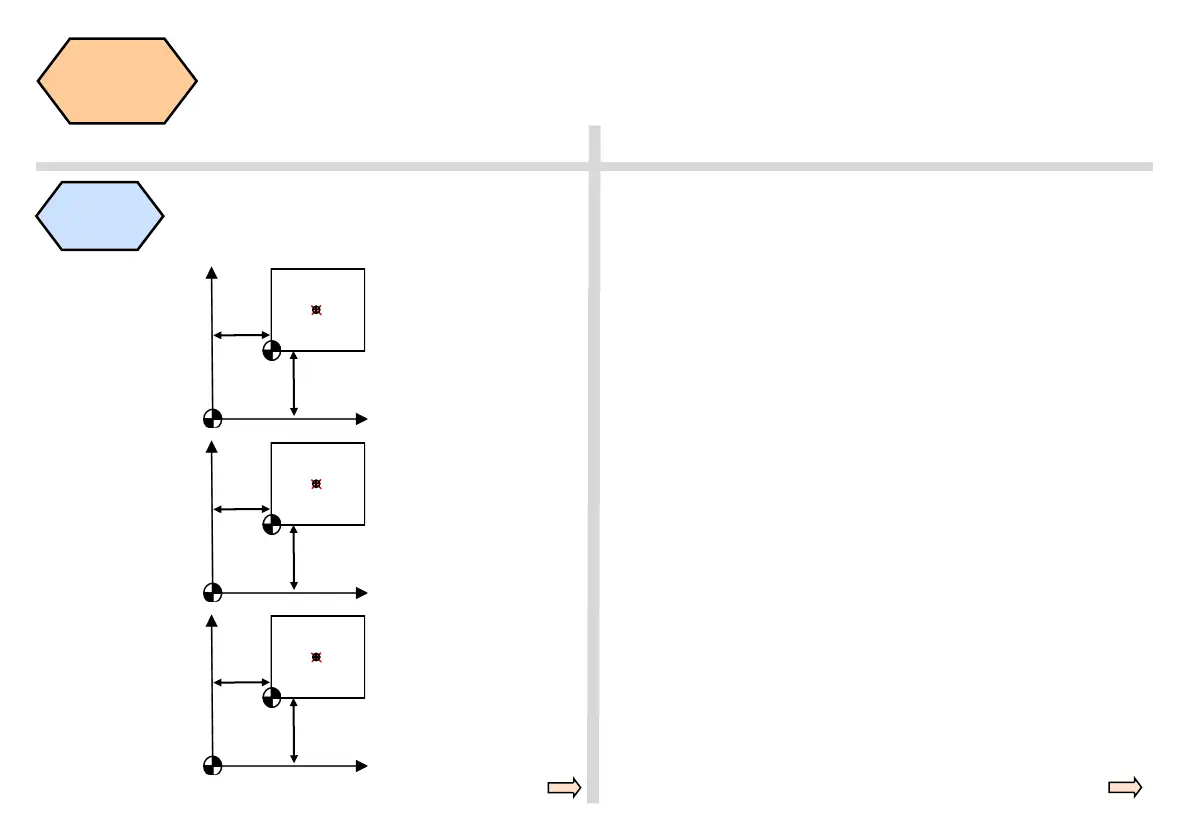

G54 G55 G56 G57
G58 G59
With G500 = 0, the
offset for the work-
piece can be
stored in the G54
workpiece offset.
G500
All absolute path
data will be
relative to this
position. The posi-
tion is written in
the G500 (basic)
zero offset.
G500 + G54
With G500 >< 0
and is activated,
the value in
G500 will be
added to the
value in G54.
N5 G17 G90 G500 G71
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 X50 Z5
N25 G01 Z-5
N30 Z5
N35 G00 Z50 X100
G500 X
G500 Z
X0 Z50
G54 X
G54 Z
X0 Z50
N5 G17 G90 G54 G71
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 X0 Z5
N25 G01 Z-5
N30 Z5
N35 G00 Z50 X100
G500 X
G500 Z
G54 X0
G54 Z0
N5 G17 G90 G500 G71
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 G54 X20 Z5
N25 G01 Z-5
N30 Z5
N35 G00 G53 Z50 X100
Or
Or
BASIC THEORY
