Siemens SINUMERIK 808D ADVANCED Training Manual

808D ADVANCED Page 27 Programming and Operating — Turning
Create Part
Program
Part 1
s
Edit
program

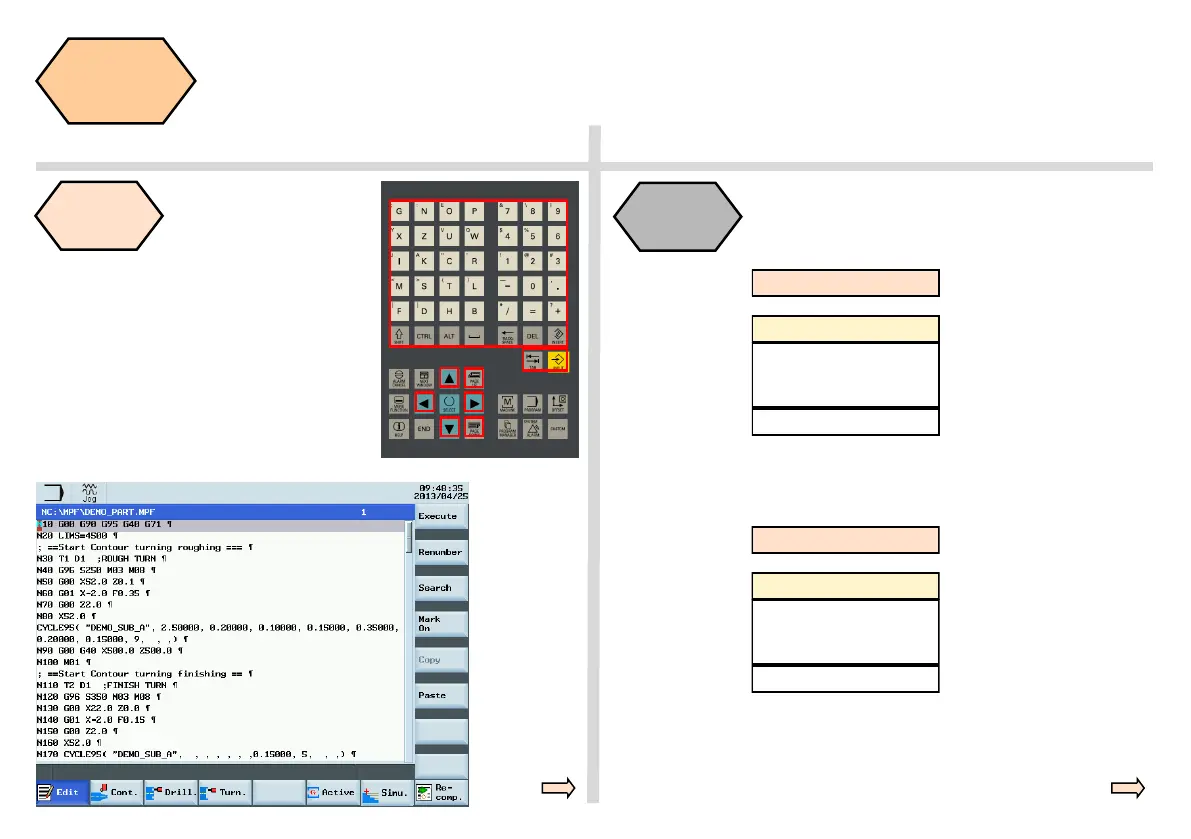

The program shown in the editor can be
created and edited with the correct keys.
Inches
and mm
Return to change tool
T,F,S function
Geometry data / motion
Return to change tool
N5 G17 G90 G54 G71
N10 T1 D1
N15 S5000 M3 G95 F0.3
N20 G00 X100 Z1
N25 G01 X-0.5
N30 Z2
N35 G00 X200 Z50
G71
With G71 at the
header, the
geometry data
will be in the
metric unit
system,
feedrates in the
default metric
system.
Return to change tool
T,F,S function
Geometry data / motion
Return to change tool
N5 G17 G90 G54 G70
N10 T1 D1
N15 S5000 M3 G95 F0.2
N20 G00 X10 Z0.2
N25 G01 X-0.2
N30 Z0.2
N35 G00 X10 Z10
G70
With G70 at the
header, the
geometry data
will be in the
imperial (inches)
unit system, the
feedrate in the
default metric
system.
BASIC THEORY

Siemens SINUMERIK 808D ADVANCED Specifications

General

Brand	Siemens
Model	SINUMERIK 808D ADVANCED
Category	Control Unit
Language	English
