Siemens SINUMERIK 808D ADVANCED Training Manual

Programming and Operating — Turning Page 30 808D ADVANCED
Create Part
Program
Part 1
s
Behavior at
corners
Activation/
deactivation of the
tool radius compensa-
tion when working on
the part contour.
G41 / G42 and G40
With G41/G42,
the radius compensa-
tion of the tool will be
done in the direction
of travel.
G41：Compensation
to left.
G42：Compensation
to right.
G40：Compensation
of the radius can be
deactivated.

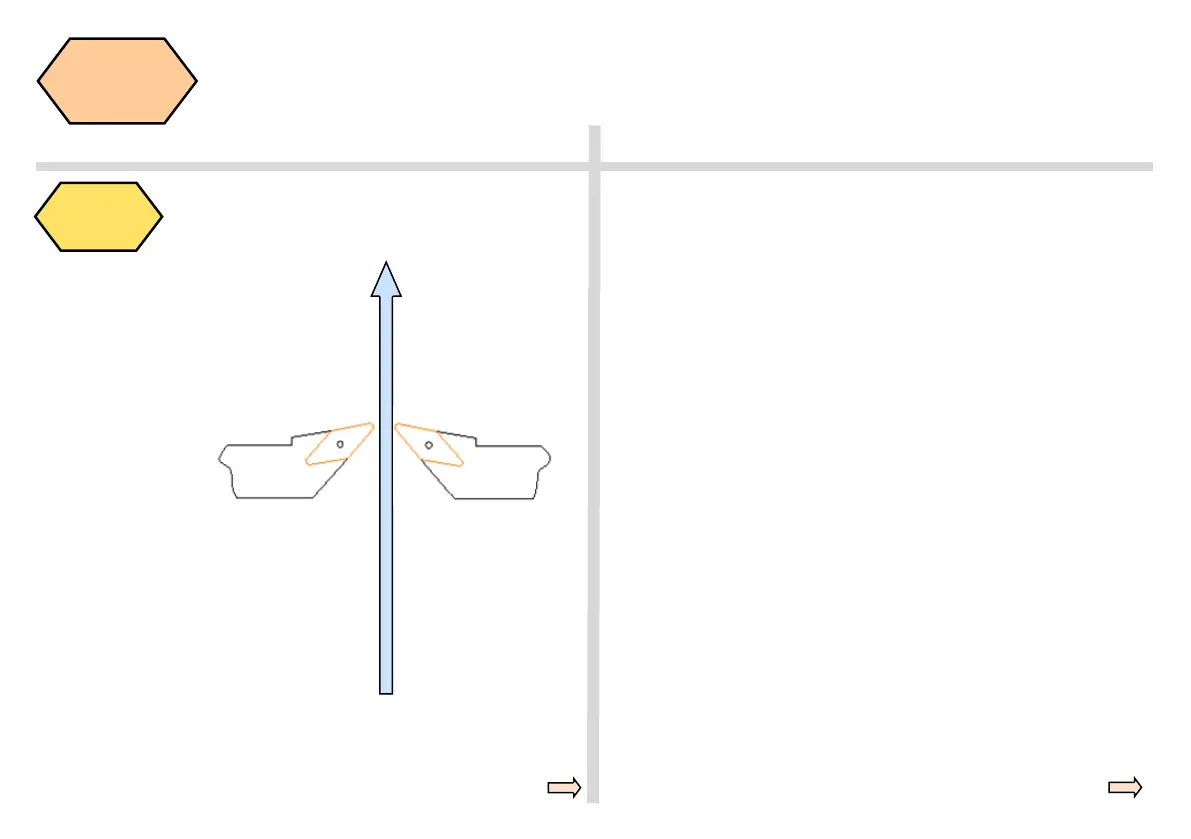

Arrow indicates the
direction of tool motion
along the contour
G41 → direction
along the tool
motion,the tool is
always on the left of
the contour.
G42 → direction
along the tool
motion,the tool is
always on the right
of the contour.
