Milling Part 1: Operation
Programming and Operating Manual, 12/2012, 6FC5398-4DP10-0BA0
7
Introduction
1

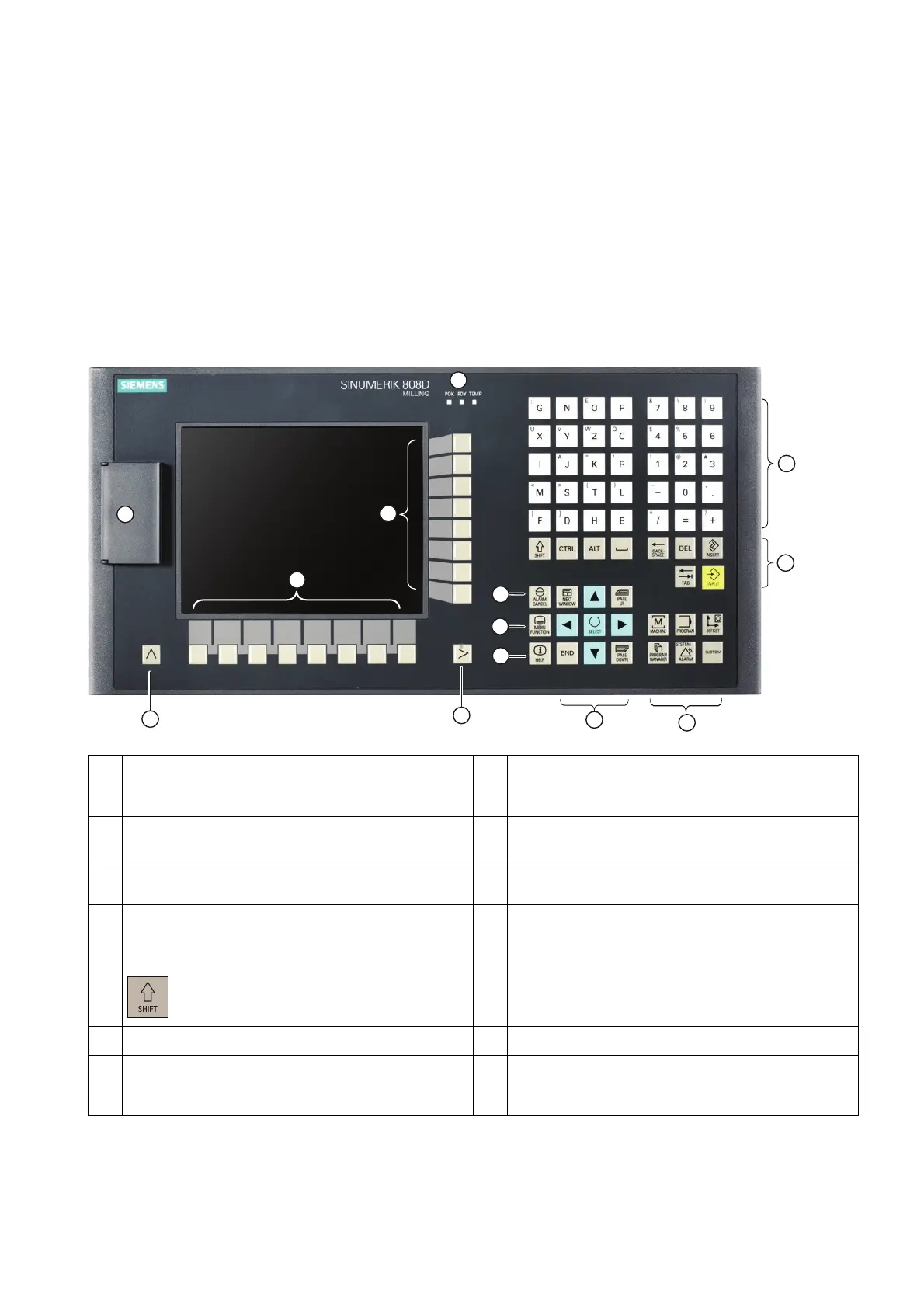

1.1 SINUMERIK 808D operator panels
Elements on the PPU (Panel Processing Unit) front
①
Vertical and horizontal softkeys
Calls specific menu functions
⑦
On-board assistant key
Provides step-by-step guides on basic commissioning
and operation procedures
②
Return key
Returns to the next higher-level menu
⑧
Help key
Calls help information
③
Menu extension key
Reserved for future use
⑨
Cursor keys *
④
Alphabetic and numeric keys
To enter the upper character on the key, hold down the
following key:
⑩
Operating area keys *
⑤
Control keys *
⑪
USB interface *
⑥
Alarm cancellation key
Cancels alarms and messages that are marked with
this symbol
⑫
Status LEDs *
* For more information, refer to the table below.
