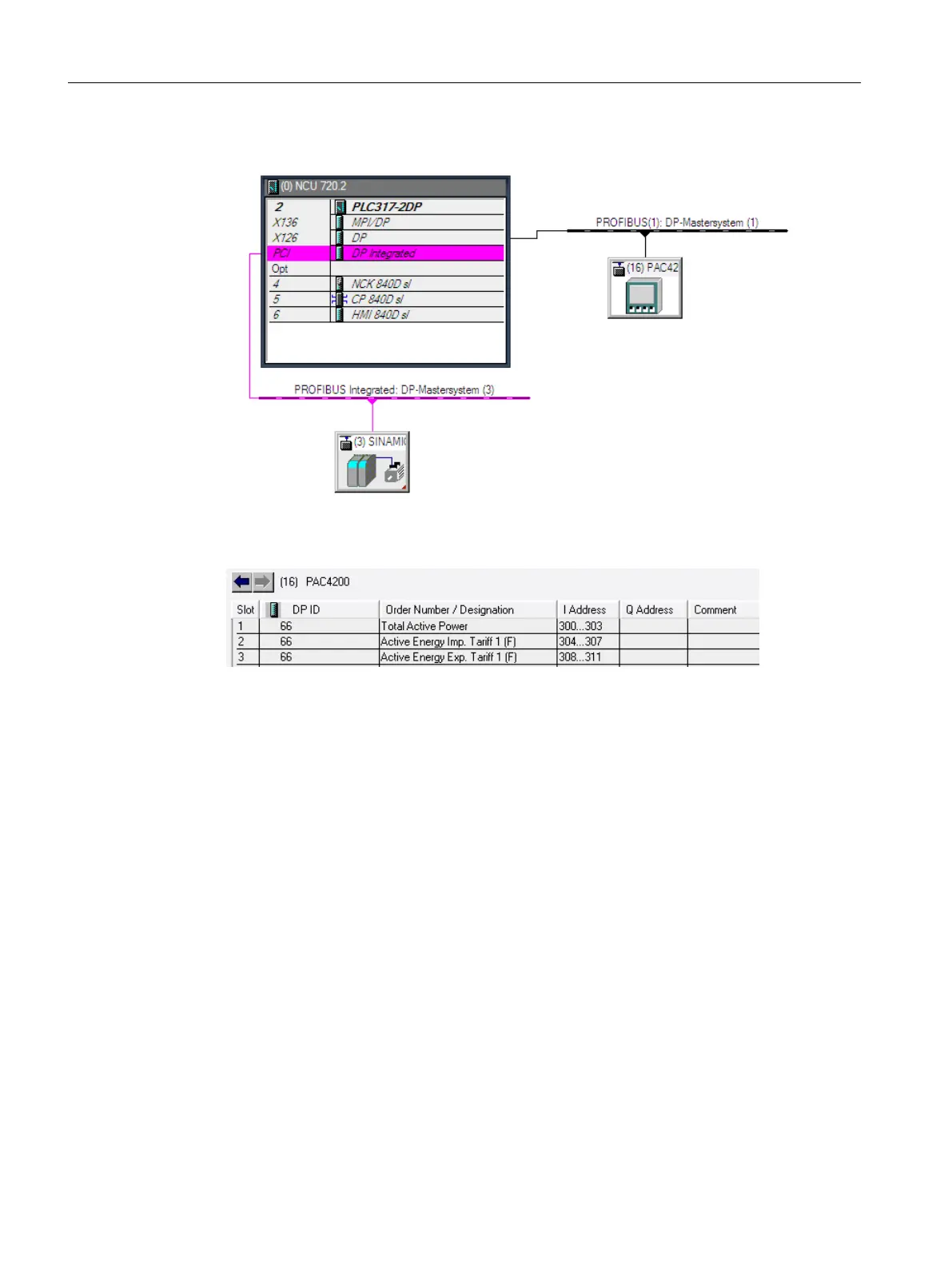

5. In HW Config, drag the selected module to the Profibus DP master system.
6. In the hardware catalog, open the required module and assign the subslots as shown in
the diagram.
Ctrl-E Analysis
3.2 Commissioning the PLC for SENTRON PAC
Ctrl-Energy
18 System Manual, 01/2015, 6FC5397-0EP40-5BA2
