Connecting
7.11 Measuring sockets
NCU 7x0.2
Manual, 02/2011, 6FC5397-0AP20-0BA0
79
7.11 Measuring sockets
Application
The test sockets are used to output analog signals. Any interconnectable signal can be
output to any test socket on the control unit.
● Max. output range of the test signal: 0 ... 5 V
● Test sockets have to be parameterized before use, as there is no default setting on
delivery.
CAUTION
The test sockets should be used exclusively for servicing purposes.
The measurements may only be carried out by appropriately trained specialists.

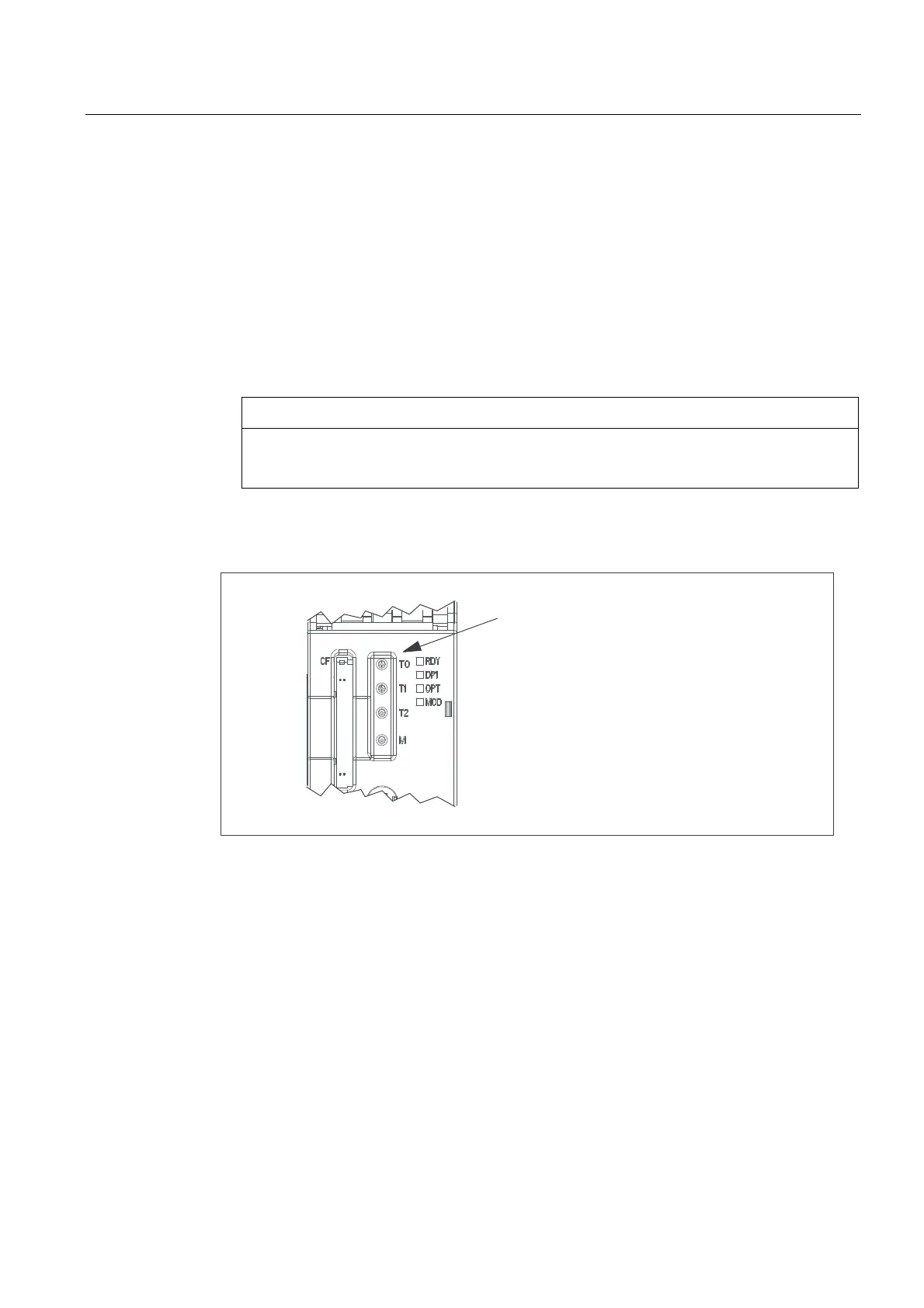

Test socket position
7HVWVRFNHWVPP
7 7HVW VRFNHW
7 7HVW VRFNHW
7 7HVW VRFNHW
0 5HIHUHQFH
Figure 7-17 Test socket arrangement
