Connectable components
9.1 NX10/15
NCU 7x0.2
Manual, 02/2011, 6FC5397-0AP20-0BA0
89

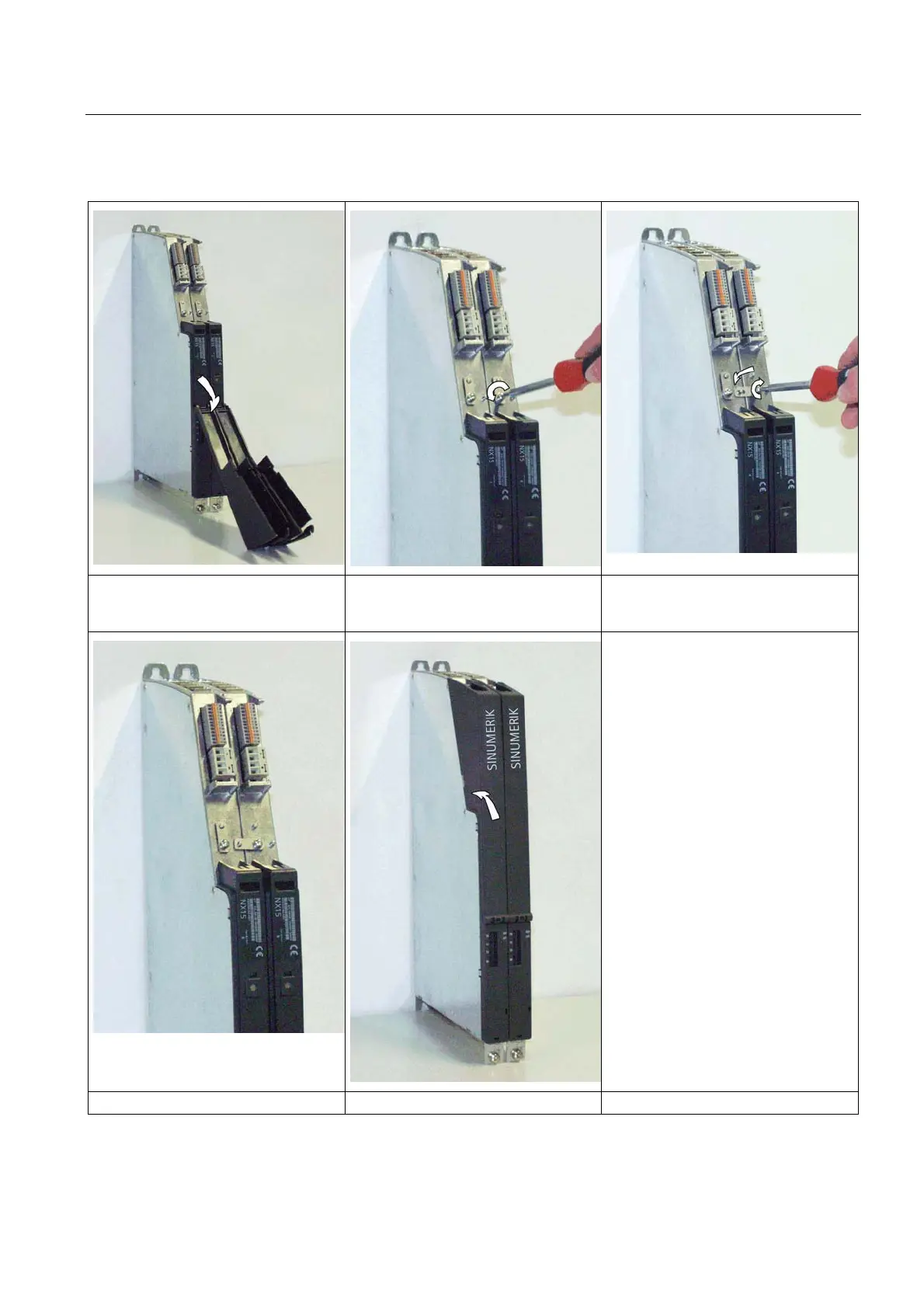

Table 9- 2 Mounting an NX10/15 on another NX10/15
Opening the cover. Unscrewing the screw. The bracket must be moved so that the
pin is in the opening of the bracket.
Tighten the screw.
Mounted bracket. Closing the cover.
