7.2.4 Interfaces
Information about the interface assignment on the PN terminal box can be found in the
“Handheld Terminal HT 2" manual under “Connecting" → “Terminal Box PN" → “Interface
assignment on the PN Plus terminal box"connection.
7.3 PN Basic connection module
7.3.1 Description
The connection module Basic PN was specially developed for installation in the control cabinet.
The terminating connector protrudes through the panel of the control cabinet so that the HT 8
can be connected from the outside.
6\VWHPQHWZRUN
6WDWXVVLJQDOV
(PHUJHQF\6WRS
3DQHOSUHVHQW
6DIHW\
FRPELQDWLRQ
7.
&RQQHFWLQJFDEOH
)DFWRU\QHWZRUN
&RQWUROV\VWHPV
1&8
1&8
1&8
31%DVLFFRQQHFWLRQPRGXOH
(PHUJ6WRSFLUFXLWV
0DFKLQHFRQWUROSDQHO
2SHUDWRUSDQHO
+7
+7
3
3
3

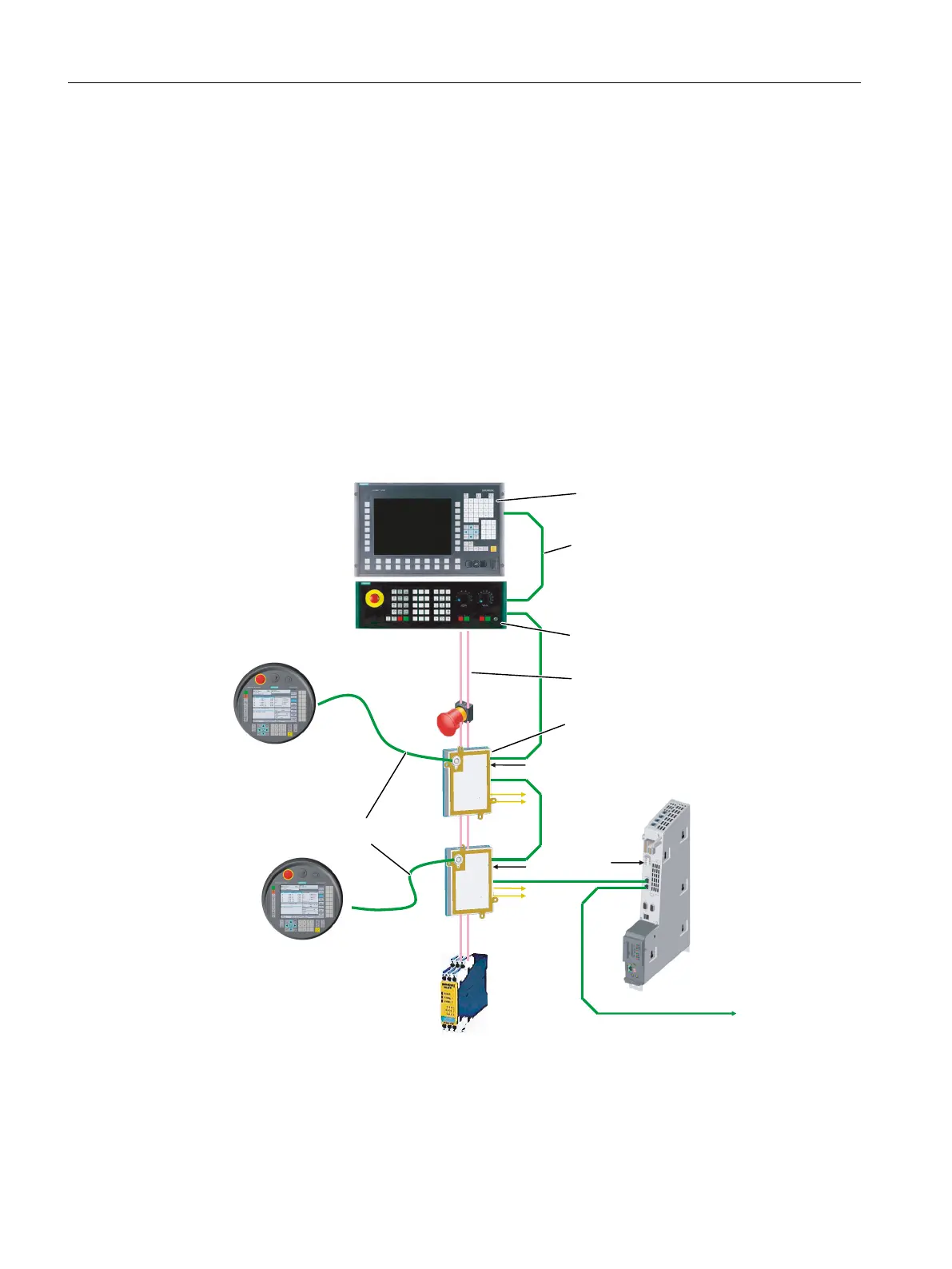

Figure7-5 System con󹪝guration (example)
The connection module Basic PN is not hot plug-capable.
The HT 8 can either be connected directly to the NCU or to the IPC as thin client.
