2.12 Transverse axes (P1)
NC/PLC Interface Signals (Z1)
2-114 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
DB10

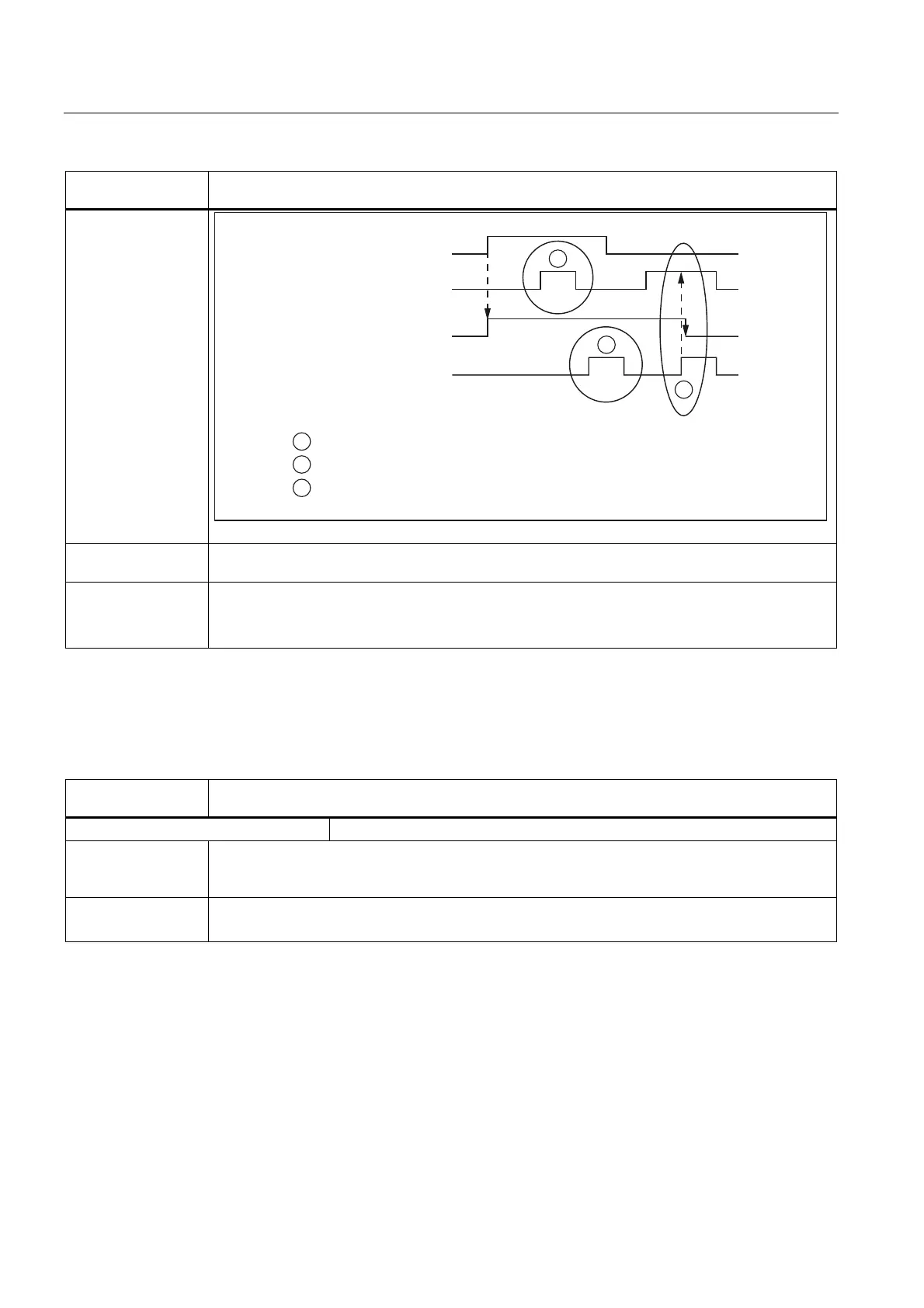

DBX56.2 Acknowledge EMERGENCY STOP






,6DNQRZOHGJH(0(5*(1&<6723
,6(0(5*(1&<6723DFWLYH"
,65(6(7
,65HVHWKDVQRHIIHFW
,6$FNQRZOHGJH(0(5*(1&<6723DQG5(6(7UHVHW(0(5*(1&<6723DFWLYH
,6$FNQRZOHGJH(0(5*(1&<6723KDVQRHIIHFW
,6(0(5*(1&<6723
Special cases,
errors, ......
The EMERGENCY STOP state cannot be reset using the interface signal:
DB21, ... DBX7.7 (reset).
Corresponding to .... DB10 DBX56.1 (EMERGENCY STOP)
DB10 DBX106.1 (acknowledge EMERGENCY STOP)
DB11 DBX0.7 (mode group reset)
2.11.2 Signals from NC (DB10)
DB10
DBX106.1 EMERGENCY STOP active
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The NC is in the EMERGENCY STOP state.
Corresponding to .... DB10 DBX56.1 (EMERGENCY STOP)
DB10 DBX56.2 (acknowledge EMERGENCY STOP)
2.12 2.12 Transverse axes (P1)
No signal descriptions required.
