Siemens SINUMERIK 840Di System Overview

2 System Overview 02.2001
© Siemens AG 2001 All Rights Reserved
2
-12 SINUMERIK 840Di System Overview (SYI) - 02.2001 Edition
2.3 System hardware
Industrial PC
(
PCU
)
Networking
(e.g. TCP/IP)
PROFIBUS-DP (12 MBaud)
•=Siemens A&D Operator Panels
•=OEM Operator Panels
•=PC Monitor and MF2 Keyboard
MCI-Board Extension
(Option)
Fast Dig. I/Os
Measuring Pulses
Handwheels
Prog. Dev's
(e.g. PG 740)
MCP
Operator Units
(HHU/HT6)
MCI Board
SIMODRIVE POSMO SI, CD, C
A
SIMODRIVE 611 universal Non-Siemens Drives
Analog Drives
ADI4
SIMATIC DP ET 200
MPI (1.5 MBaud)

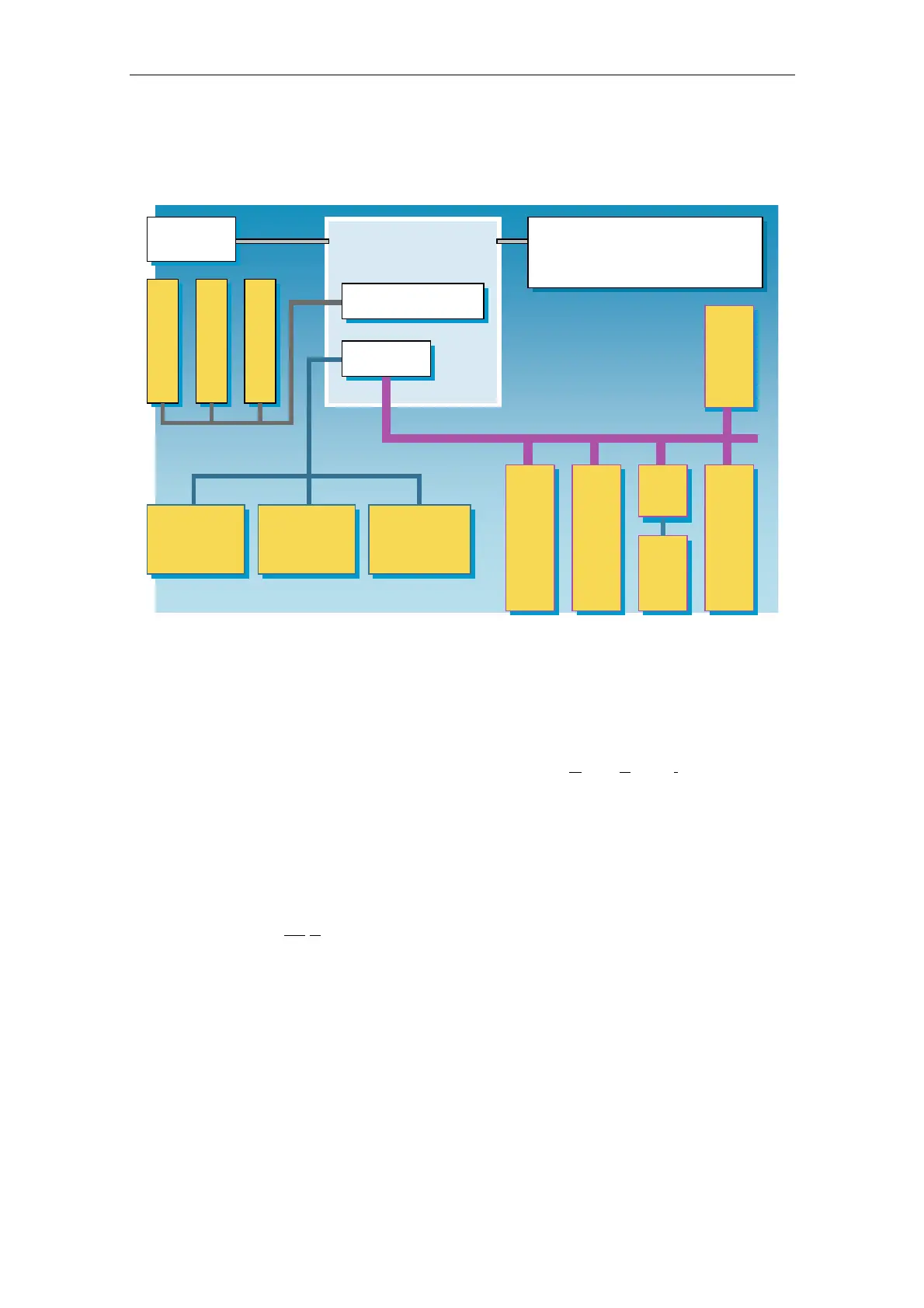

Fig.2-2 The SINUMERIK 840Di hardware (system overview)
Hardware basic variant
The basic variant of the SINUMERIK 840Di is a compact SIEMENS industrial PC
and a PCI plug-in board, the so-called MCI Board (Motion C
ontrol Interface), which
has been developed by Siemens.
PCU (industrial PC)
In view of different cases of applications, PC variants with a differentiated scope of
performance and expandability are planned. The first product stage envisages the
PCU 50 (PC U
nit), a built-in industrial PC with a free ISA/PCI slot for hardware
expansions in two variants (Pentium II/III at 333MHz/500MHZ) for the SINUMERIK
840Di.
A PCU variant with additional free PCI slots is available soon.
