3.5 Handheld operator and programming units
Handheld operator and programming units are connected to the SINUMERIK
840Di via the MPI interface of the MCI Board.
The following components are offered as options:
• Handheld unit (HHU), B-MPI type
• HT 6 Terminal (handheld operator and programming unit)
Handheld unit (HHU), B-MPI type Handheld terminal HT 6

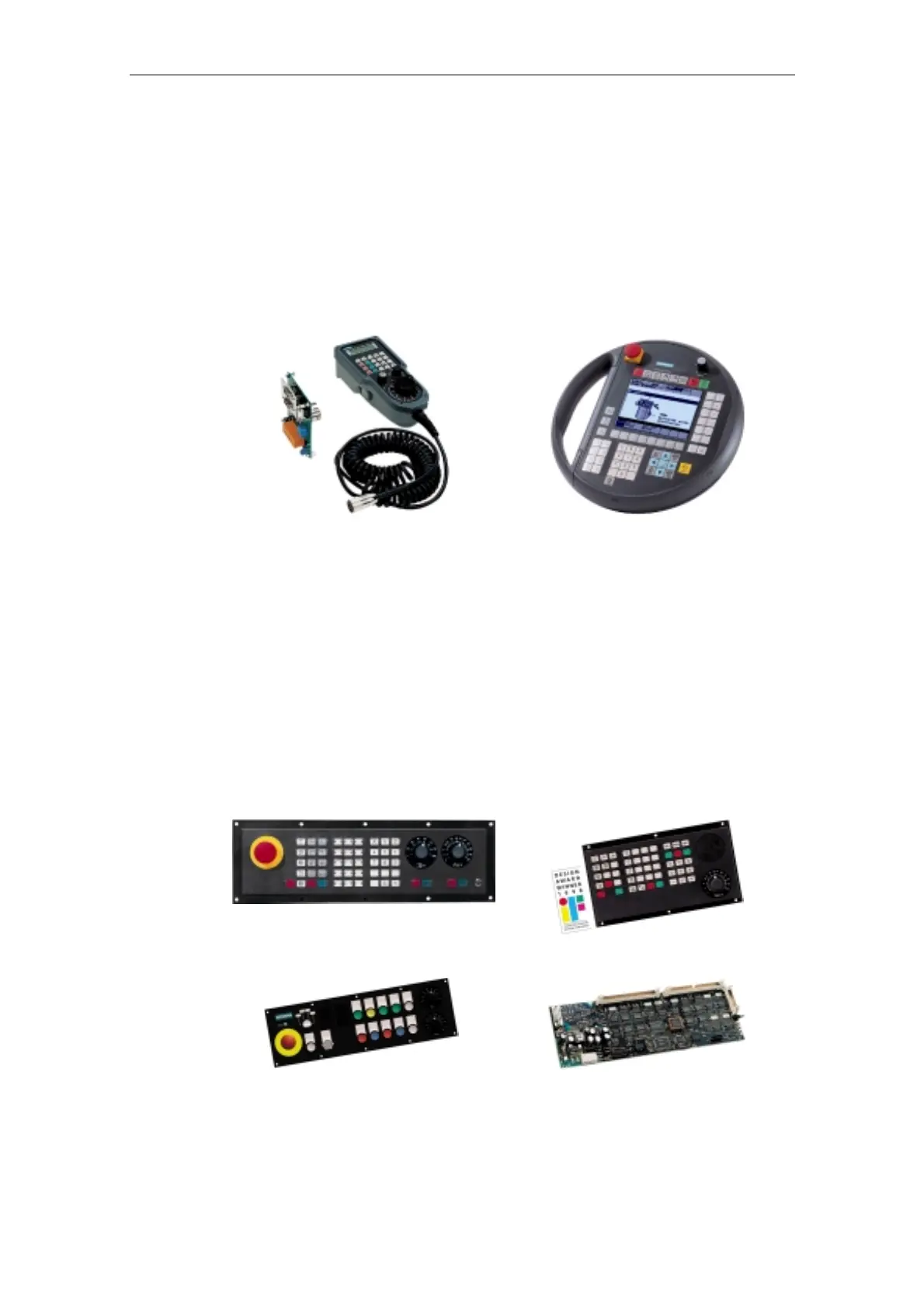

Fig. 3-6 SINUMERIK handheld operator and programming units
3.6 Machine control panels
A machine control panel is connected to the SINUMERIK 840Di via the MPI inter-
face of the MCI Board.
The following components are offered as options:
• 19" machine control panel
• OP 32S machine control panel
• PP 031-MC pushbutton panel
• MPI interface (interface for customized machine control panels)
19" machine control panel OP32S machine control panel
PP031-MC pushbutton panel MPI interface
Fig. 3-7 SINUMERIK Machine control panels
