3.4 Operator panel fronts
The new operator panel fronts can be connected via the PCU interfaces for TFT
and STN displays:
• SINUMERIK operator panel front OP 010
• SINUMERIK operator panel front OP 010C
• SINUMERIK operator panel front OP 010S
• SINUMERIK operator panel front OP 012
• SINUMERIK operator panel front OP 015
The most important features of the new operator panel fronts are:
• STN or TFT color display in sizes of 10.4'', 12.1'' and 15''
• Mechanical and membrane keyboards
• USB connection for keyboard or mouse on the front side of all operator panel
fronts
• Some of the panels possess an integrated mouse
An alternative to the connection of a SINUMERIK operator panel front is the con-
nection of a VGA monitor, a PC standard keyboard (MF-II) or a mouse.
The USB connection is intended for future applications and, in its first stage, it will
exclusively be intended for keyboard and mouse.
OP010 OP010C OP010S
OP012 OP015

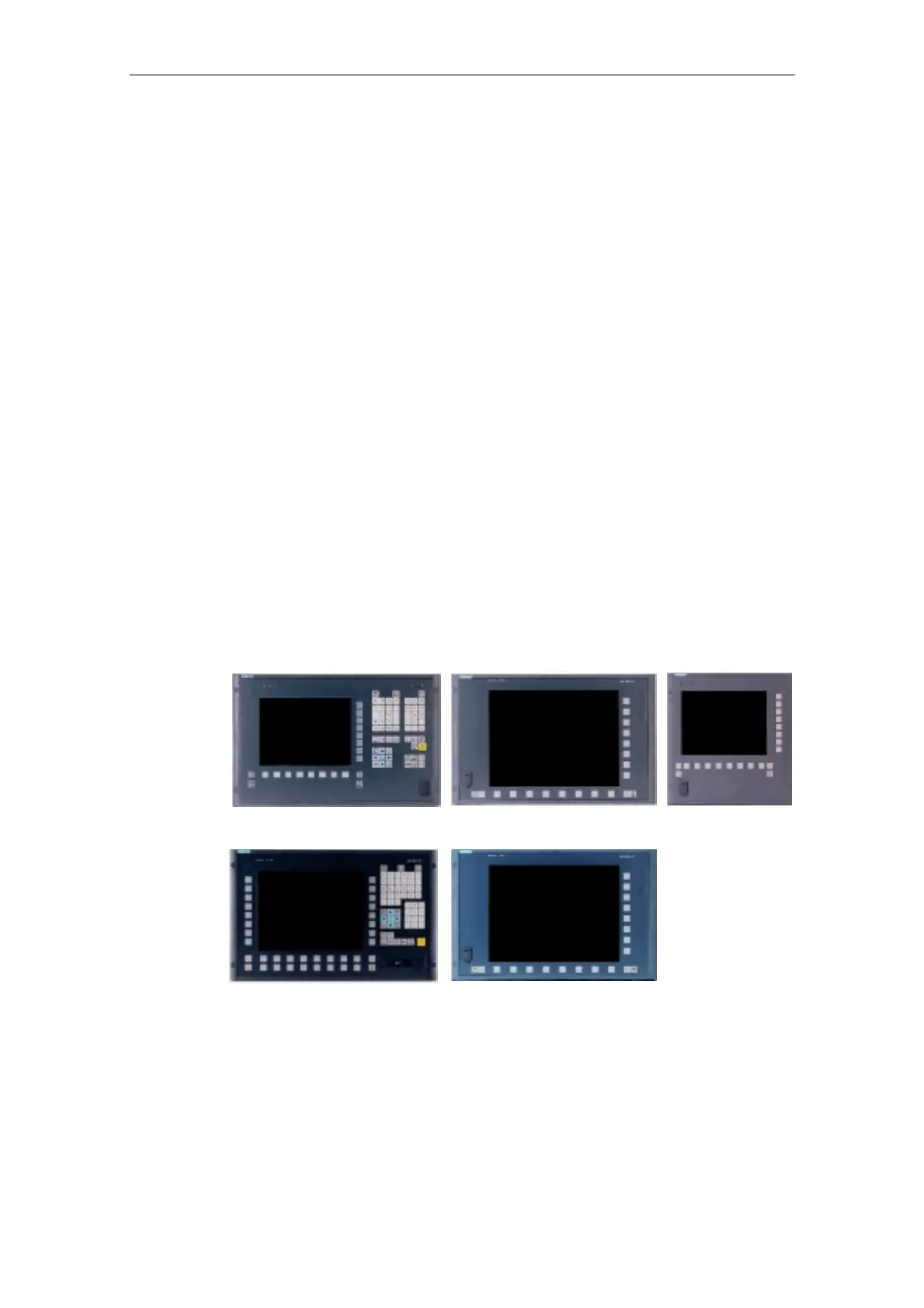

Fig. 3-5 SINUMERIK operator panels
