4.2 View
MPP 1500D

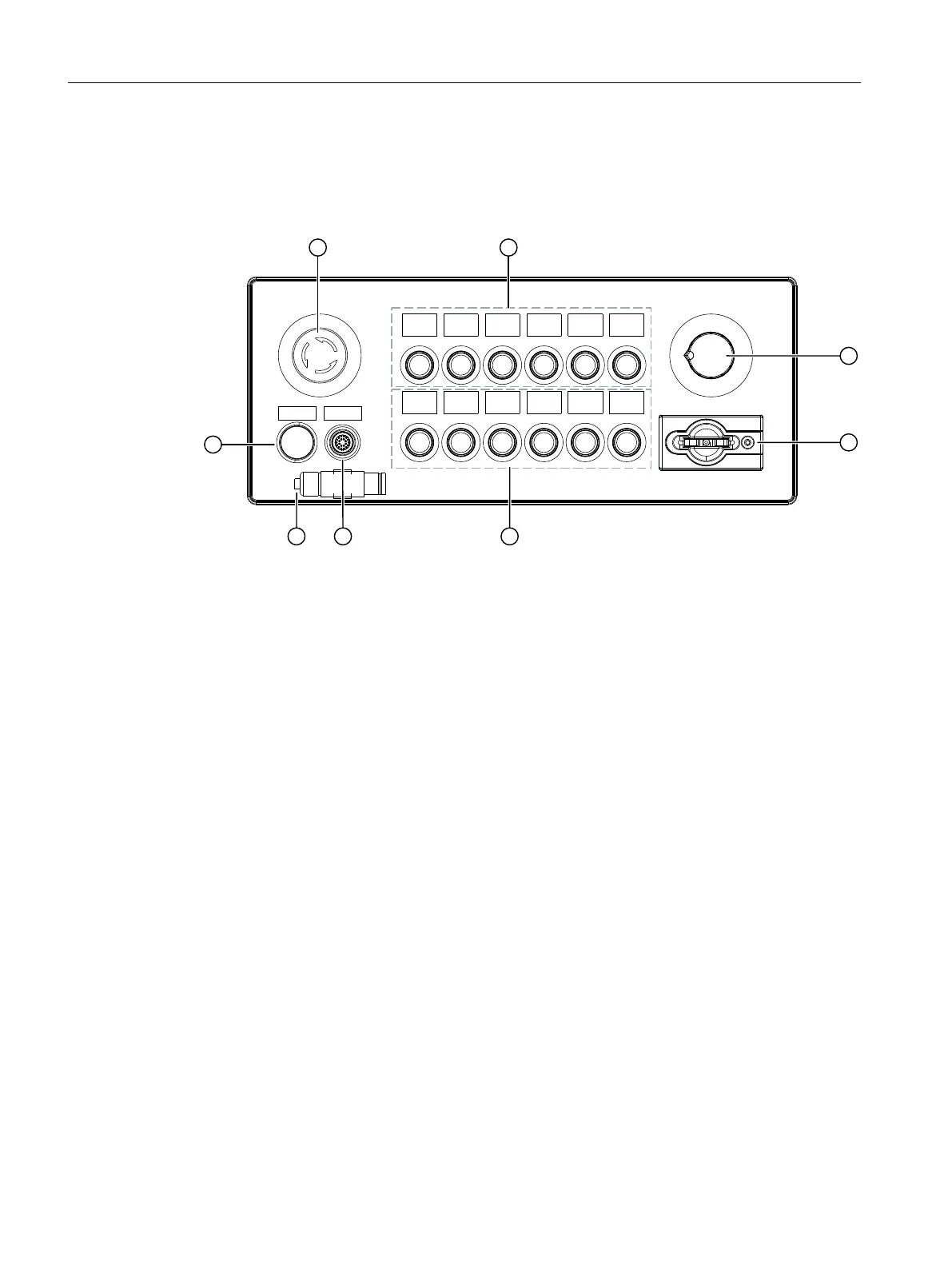

Figure 4-1 MPP 1500D operating/display elements
The MPP 1500D Machine Push Button Panel has the following operating and display elements:
① EMERGENCY STOP S13
② Illuminated keys S1-S6
③ Feedrate override
④ EKS
⑤ Illuminated keys S7-S12
⑥ Handheld unit connection XS12
⑦ Terminating plug connector if a handheld unit is not connected
⑧ Emergency stop override for handheld unit S113
Operating and display elements
4.2 View
Machine Push Button Panel: MPP 1500D / MPP 1500E
