Dimension drawings
3

s



s
*) Required installation clearance 55mm

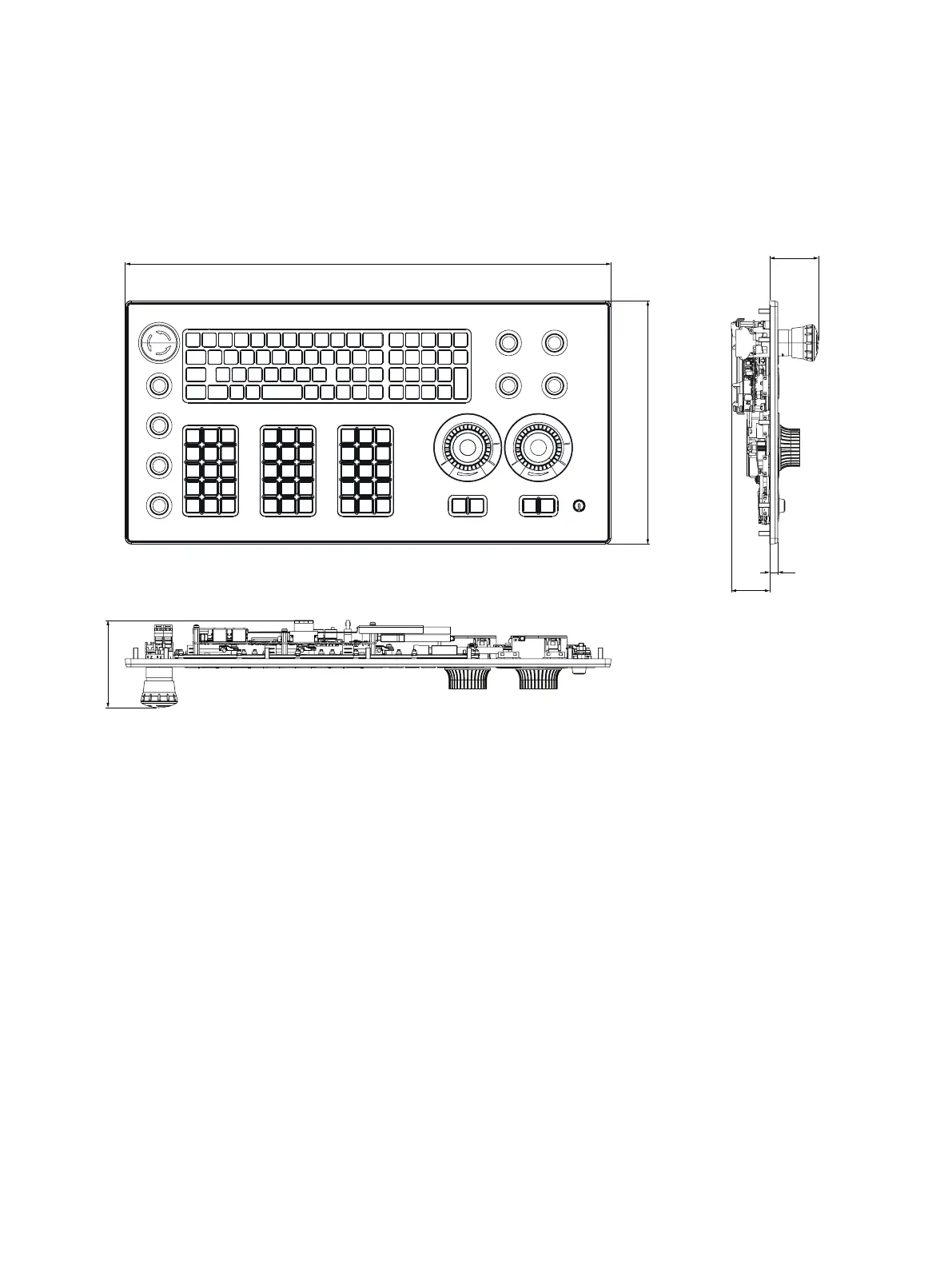

Figure3-1 Front, rear and side view of MCP 2200 (all speci󹪝cations in mm)
