Operator control and display elements
4
4.1 Front side
Overview


① Emergency stop button
② QWERTY keyboard
③ 4x mounting space for 22.5mm elements with slide-in labels
④ Key-operated authorization switch
⑤ Powerride 1 (feed) + keypad 3.1
⑥ Powerride 2 (spindle) + keypad 3.2
⑦ Keypad 3 (axis block)
⑧ Keypad 2 (customer keys)
⑨ Keypad 1 (operating mode block)
⑩ 4x mounting space for 22.5mm elements

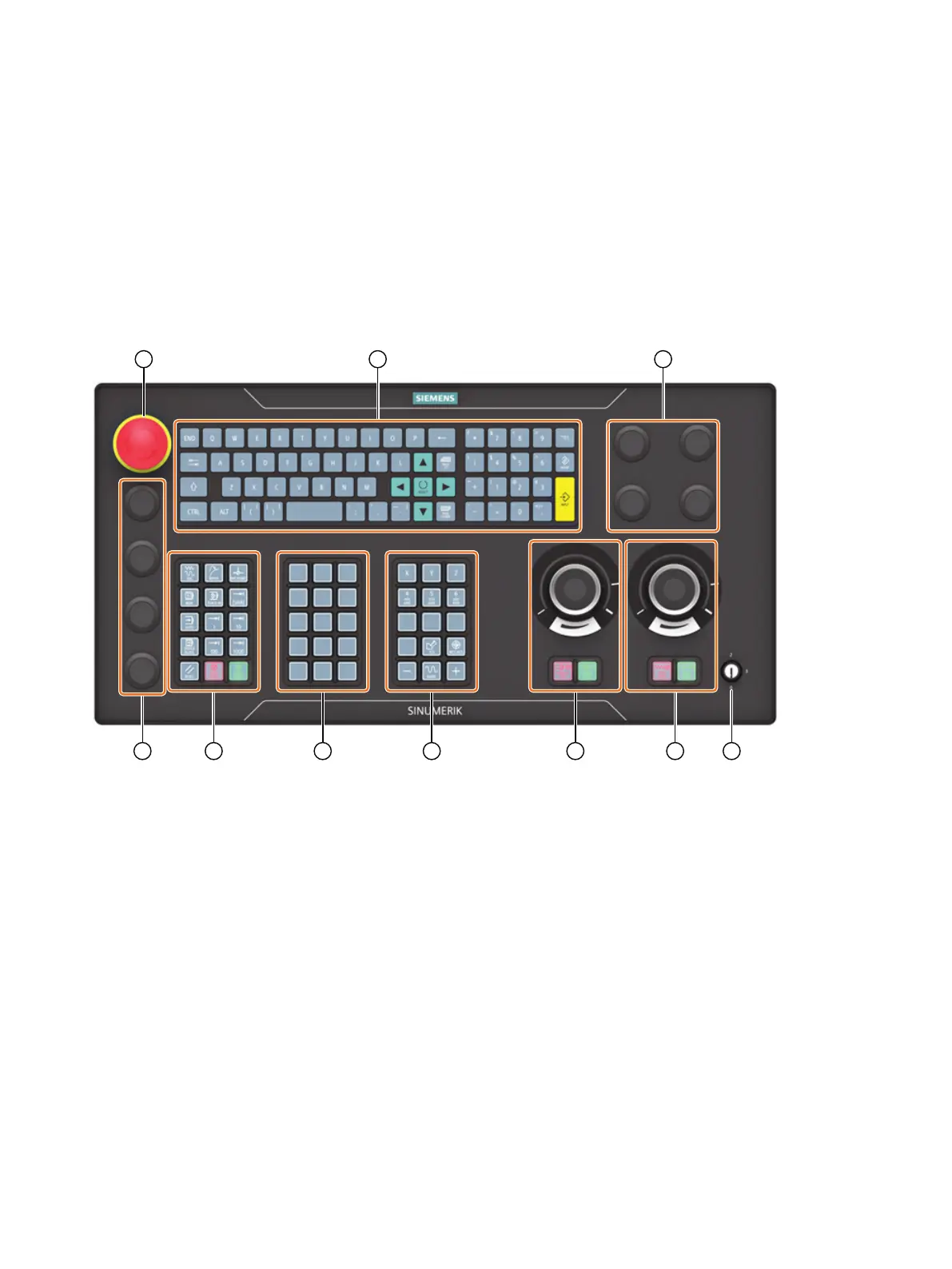

Figure4-1 Position of operator controls on the MCP 2200
Labeling of the keys
The keys are designed with replaceable caps for machine-speci󹪝c adaptations. The key caps can
be freely inscribed using a laser. Alternatively, you can use transparent key caps and insert labels.
