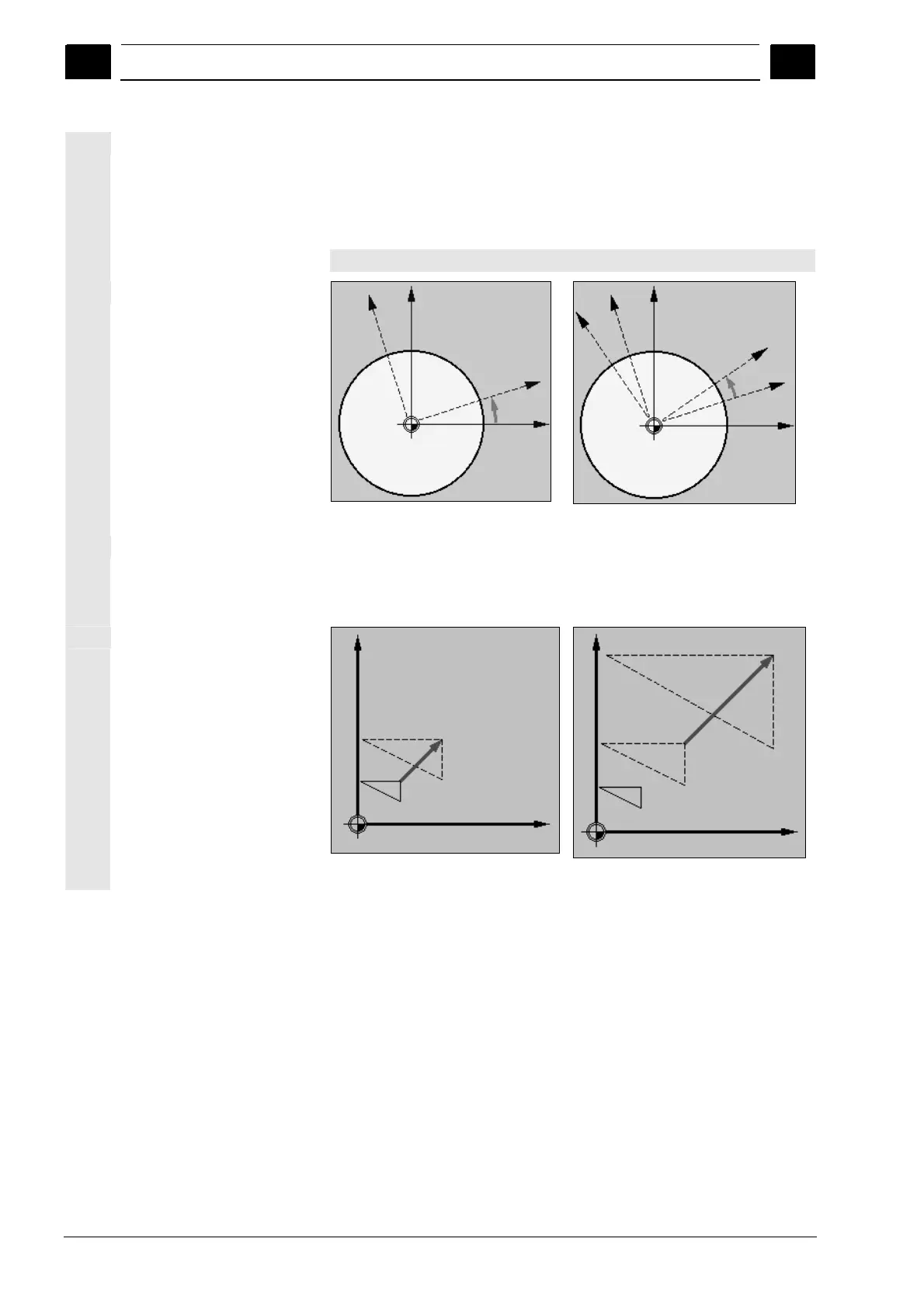

C axis rotation
You can turn the C axis through a specific angle to enable
subsequent machining operations to be performed at a particular
position on the end face or peripheral surface.
The direction of rotation is set in a machine data code.
Please also refer to the machine manufacturer's instructions.
New C axis rotation
Additive C axis rotation
Scaling
You can specify a scale factor for the active machining plane as
well as for the tool axis. The programmed coordinates are then
multiplied by this factor.
New scaling
Additive scaling
