08/2005 ShopTurn Functions
5.12 Definin
g
coordinate trans
f
ormations
5
Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-325

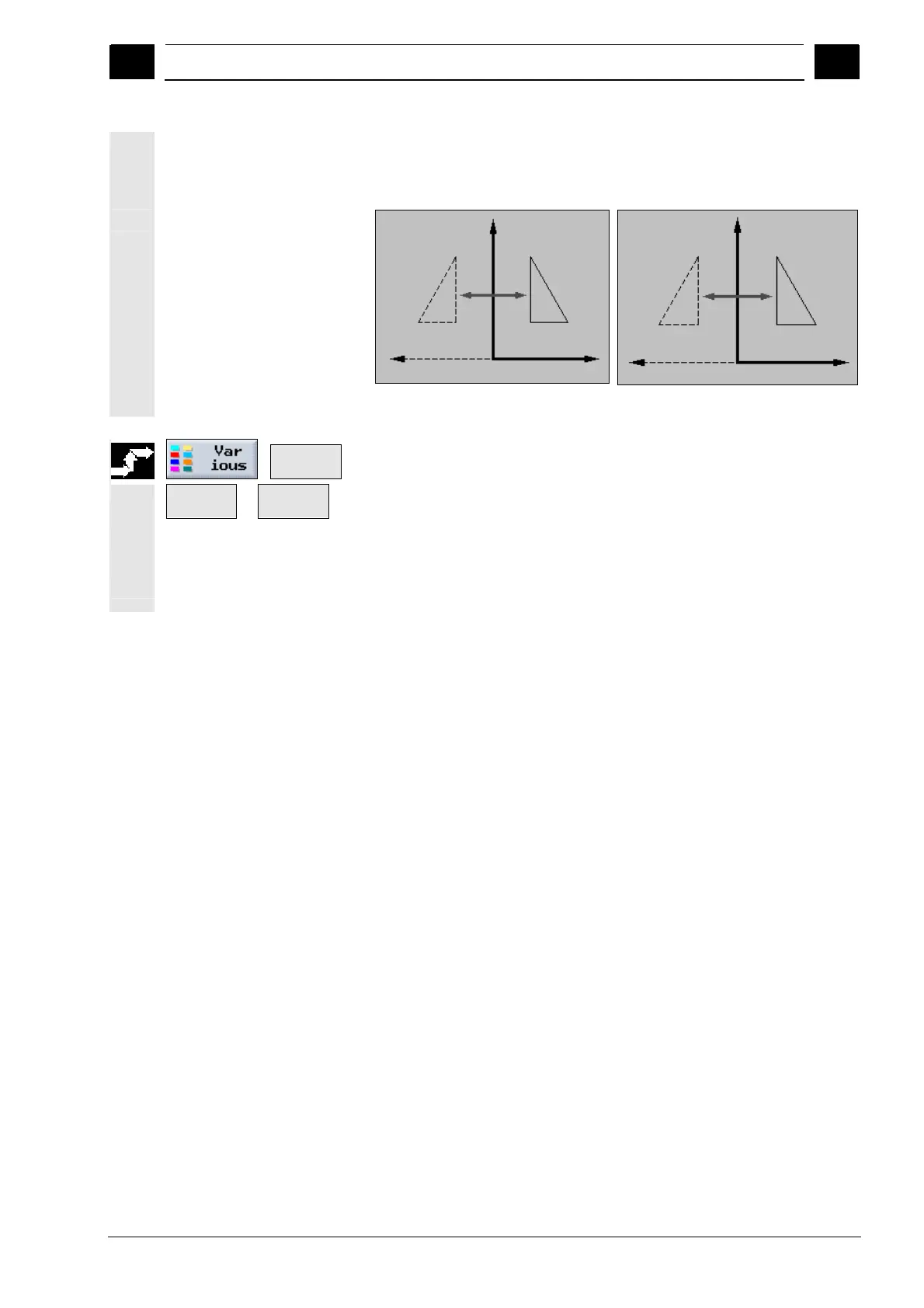

Mirroring
Furthermore, you can mirror all axes.
Enter the axis to be mirrored in each case.
New mirroring
Additive mirroring
Transfor-
mation >
Press the "Various" and "Transformation" softkeys.
Offset
>
...
Mirroring
>
Select the coordinate transformation using the softkey.
Select whether you want to program a new or an additive
coordinate transformation.
Enter the desired coordinates.
