Recalibrate touch screen
Procedure:
1. The key combination below can be used to initiate further TCU calibration during operation,
if required: <F9> + <F10>.
This corresponds to the key combination on an OP: Menu back key + <MENUSELECT>.
2. Select the menu item "Calibrate touch screen" to start calibration.
Operator panel service system - service menu for operator panel (TCU)
Ok
Show status
Show local logfile
Show logfile of remote devices
Modify operator panel settings
Calibrate touch screen
Reboot
Page
Page
Cancel
TOUCHSCREEN CALIBRATION
(Screen Orientation)
Please touch upper left corner

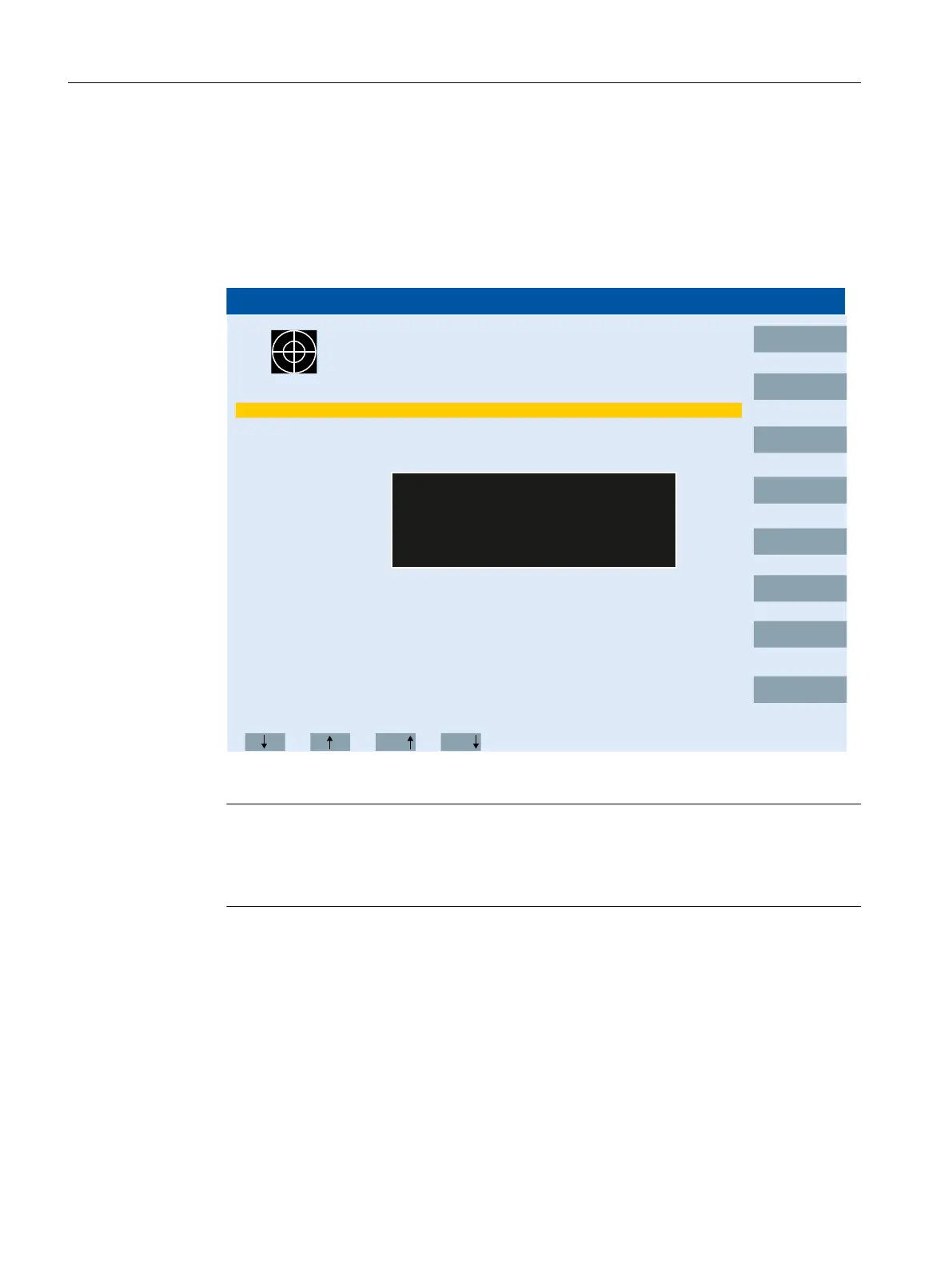

Figure4-18 HT8 calibrating points
Note
The "Touchware" program, which is available with Windows XP, is deactivated on the TCU.
The calibration process on the HT 8 can alternatively be started with the following key
combination: <Recall> + <MENU SELECT> and then the <U> key.
