Operating the Touch Panel
To operate the Touch Panel, use the integrated keyboard:

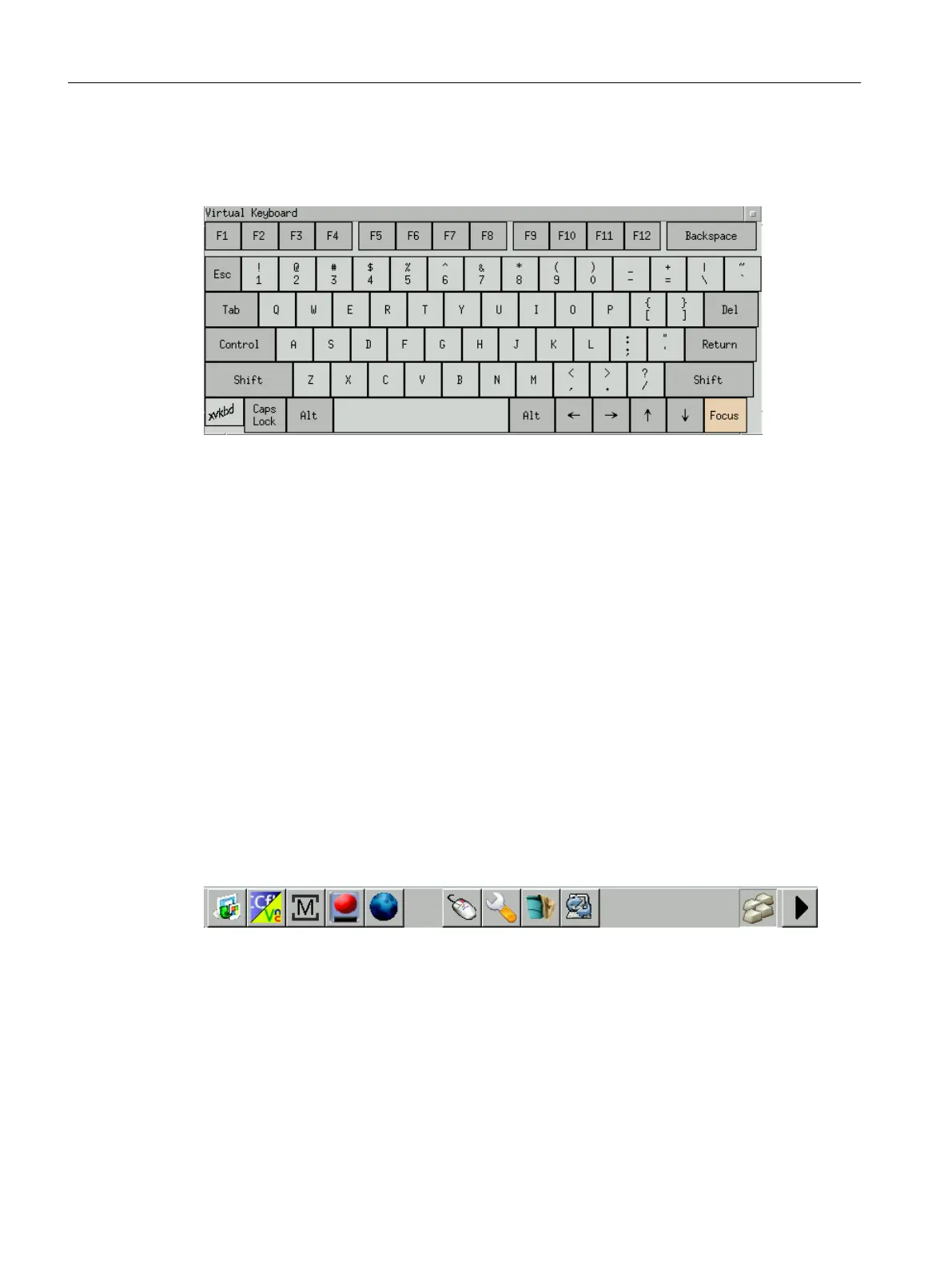

Figure4-20 Virtual Keyboard
The integrated keyboard is activated using the button to the far right on the start bar.
See also
How to register a TCU on the system network (Page55)
Using the TCU's main menu (Page42)
Reference
SIMATIC HMI, Operating instructions: Thin Client, Thin Client PRO
4.3.2.6 This is how you congure the SIMATIC Thin Client Touch Panel
Operating the start bar
The following functions are available in the start bar of the SIMATIC Thin Client:
To select the SINUMERIK mode, press the button:
General information and networking
4.3Networking
Handheld Terminal HT 8
62 Equipment Manual, 02/2024, A5E52918633B AA
