Connecting
7
7.1 Overview
Terminal box
PN Basic / PN Plus
Connection module
Basic PN
USB
interface
Ethernet cable
or
or
Article No.
Prefabricated cable
Emergency stop/enabling circuit
Emergency stop/enabling circuit
Emergency stop/enabling circuit
6XV1440-4B...
6FC5348-0AA08-3AA0
SIMATIC IPC
SINUMERIK
MPP 310 IEH/
MPP 483 IEH/
MPP 483 HTC
SINUMERIK
NCU 7x0.3 PN
SINUMERIK
Handheld
Terminal
HT 8

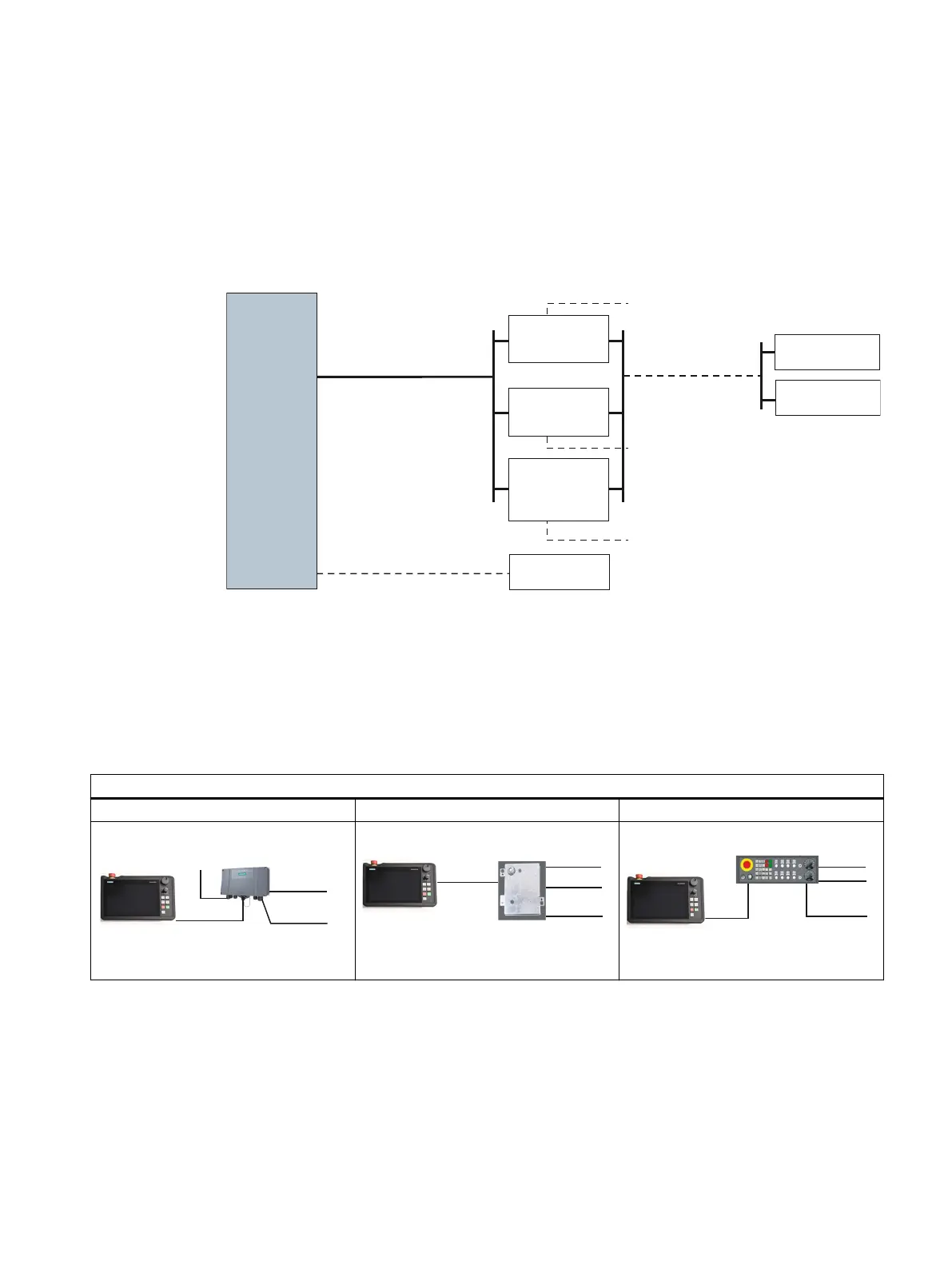

Figure7-1 Connection overview HT 8
The HT 8 is designed for communication in an Ethernet network. The following connection
options are available:
• PN Basic terminal box/PN Plus terminal box
• PN Basic connection module (for control cabinet installation) or
• MPP 310 IEH / MPP 483 IEH / MPP 483 HTC
HT 8 with
PN Basic/PN Plus terminal box PN Basic connection module MPP 483 HTC

6DIHW\
VLJQDOV
(WKHUQHW
(WKHUQHW
&RQQHFWLQJFDEOH


6DIHW\
VLJQDOV
(WKHUQHW
(WKHUQHW
&RQQHFWLQJ
FDEOH


6DIHW\
VLJQDOV
&RQQHFWLQJFDEOH
(WKHUQHW
(WKHUQHW

Connection via the PN Plus terminal box allows quick connection and disconnection during
machine operation without an emergency stop being triggered.
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 99
