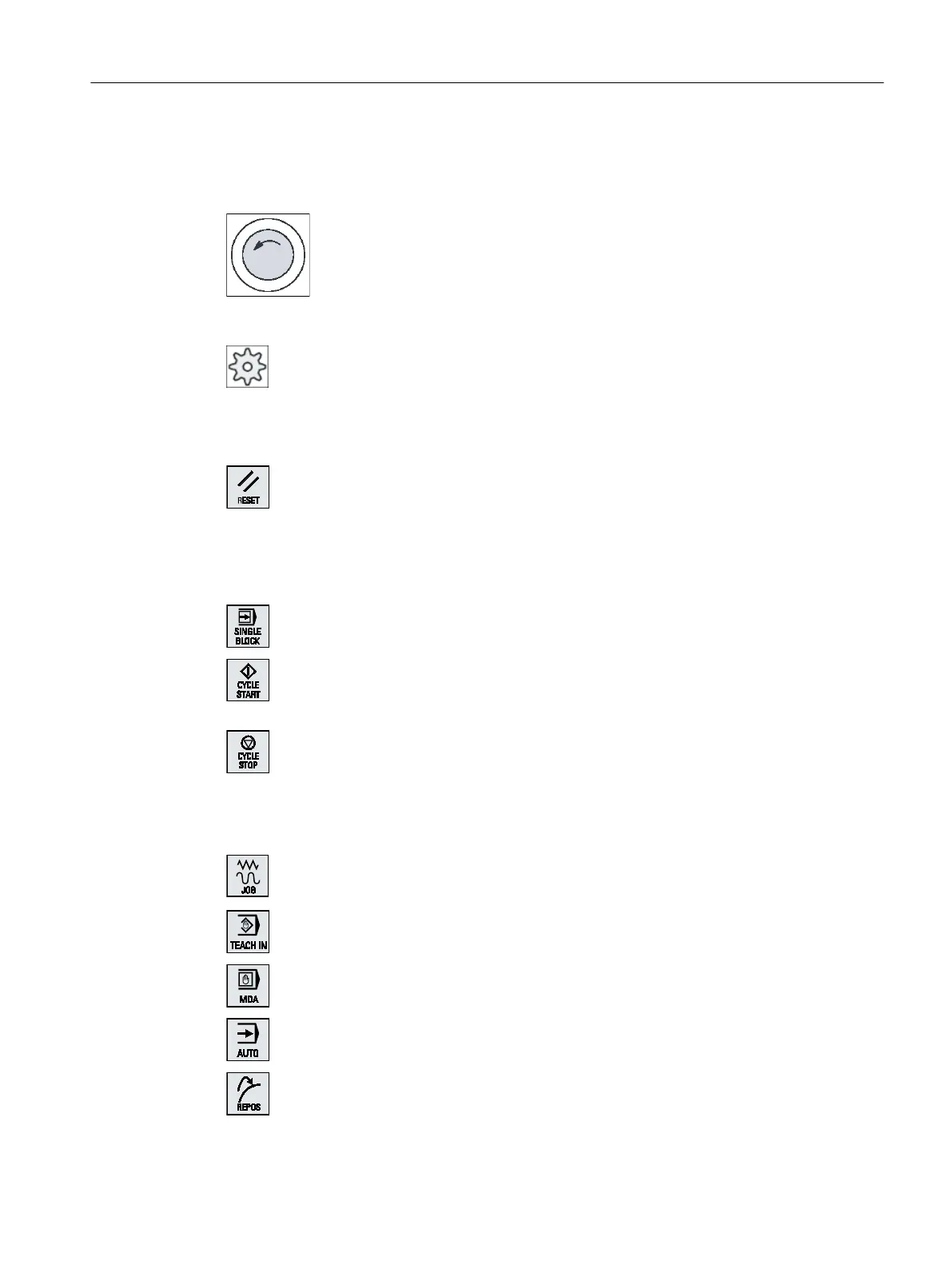

Operator controls
EMERGENCY STOP button
Press the button in situations where:
● life is at risk.
● there is the danger of a machine or workpiece being damaged.
All drives will be stopped with the greatest possible braking torque.
Machine manufacturer
For additional responses to pressing the EMERGENCY STOP button, please refer to
the machine manufacturer's instructions.
RESET
● Stop processing the current programs.
The NCK control remains synchronized with the machine. It is in its initial
state and ready for a new program run.
● Cancel alarm.
Program control
<SINGLE BLOCK>
Single block mode on/off.
<CYCLE START>
The key is also referred to as NC Start.
Execution of a program is started.
<CYCLE STOP>
The key is also referred to as NC Stop.
Execution of a program is stopped.
Operating modes, machine functions
<JOG>
Select "JOG" mode.
<TEACH IN>
Select "Teach In" submode.
<MDI>
Select "MDI" mode.
<AUTO>
Select "AUTO" mode.
<REPOS>
Repositions, re-approaches the contour.
Introduction
2.3 Machine control panels
Milling
