8.1.3 Mounting
Designs
The NX10.3 / NX15.3 is integrated into the SINAMICS drive line-up. For the preferred
installation sequence, the NX module should be mounted at the side of the Line Module.
NOTICE
Protection against overheating
The 80 mm ventilation spaces above and below the components must be observed.
Mounting aids
6SDFHUV
&XWRXWVIRU
ODWHUDOPRXQWLQJ

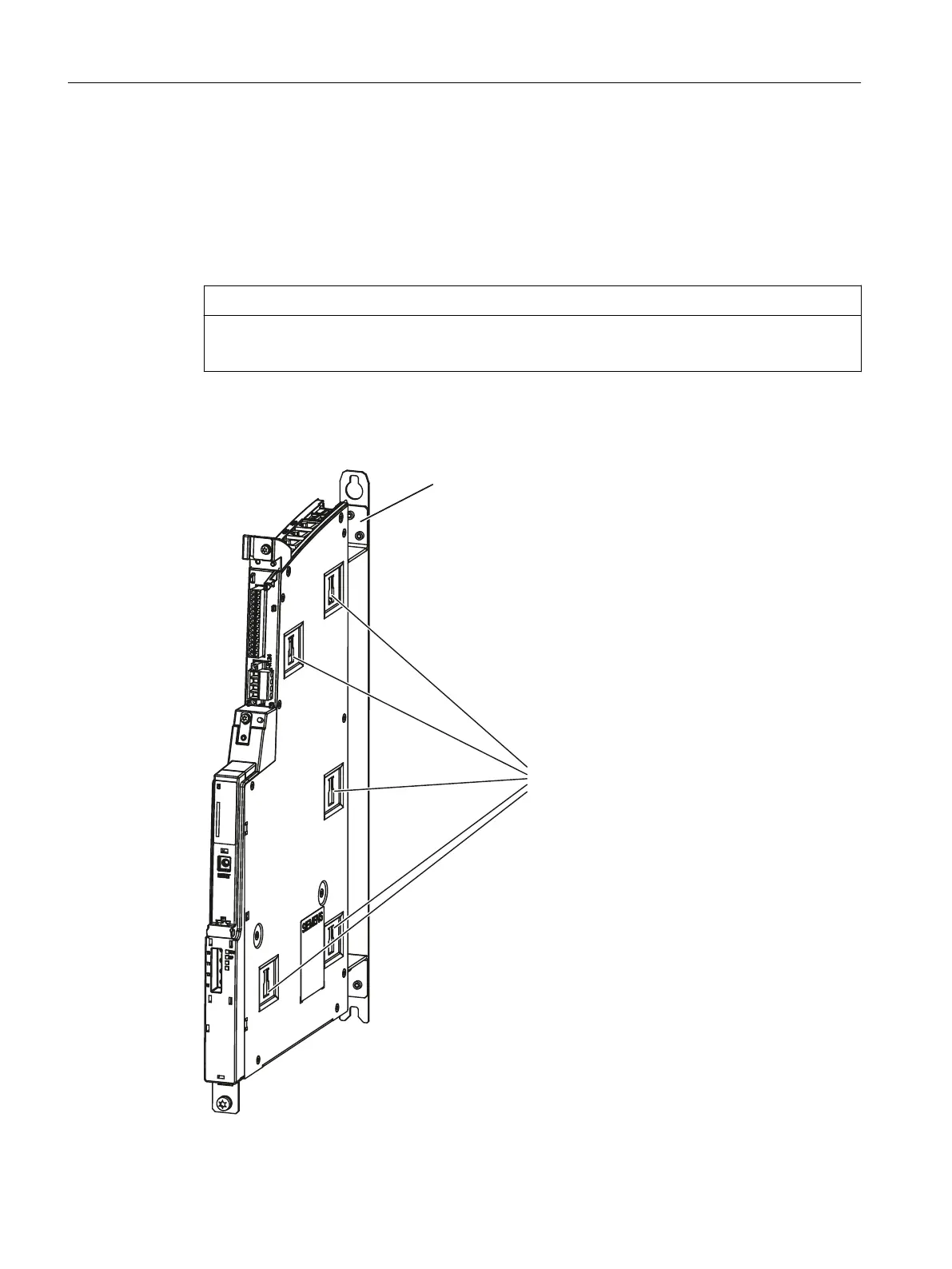

Figure 8-3 Mounting aids for the NX10.3 / NX15.3
Connectable components
8.1 NX10.3 / NX15.3
PPU 1740
86 Equipment Manual, 01/2019, A5E47615272B AA
