Siemens SIPART DR24 User Manual

Manual
3 Operation
3.3 Configuring Mode (Parameterization and Configuring Mode)
3.3.6 Configuring Mode FdEF (Define Functions)
SIP ART DR24 6DR2410
C79000-G7476-C153-03
153
High speed adustment of answer in SEt
without function in roLL
Enter key ↗: without function
Enter LED: off
Question arithmetic
blocks
b01.F...bh9.F
c01.F...c33.F
d01.F...d04.F
h01.F...h04.F
Exit LED: flashes
PS (Parameterization/
configuring)
Answer functions ndEF
AbS...tiME at b**.F
AFi1...dti2 at c**.F
CLoc...Cnt1 at d0*. F
Ccn1...CSi4 at h0*. F
Striped pattern
ID offline
High speed
adjustment question
All unnamed keys have no function, all
unnamed LEDs and indicators are dark
dd1
dd2
dA2/
L14
dA1
tA1
tA2
tA3
tA4
tA5
tA6
tA7
L13
L1
L2
L4
L3
L5
L6
L7
L9
L8
L10
L11
dd3 L12
Exit key↗: return to configuring
preselection level after FdEF

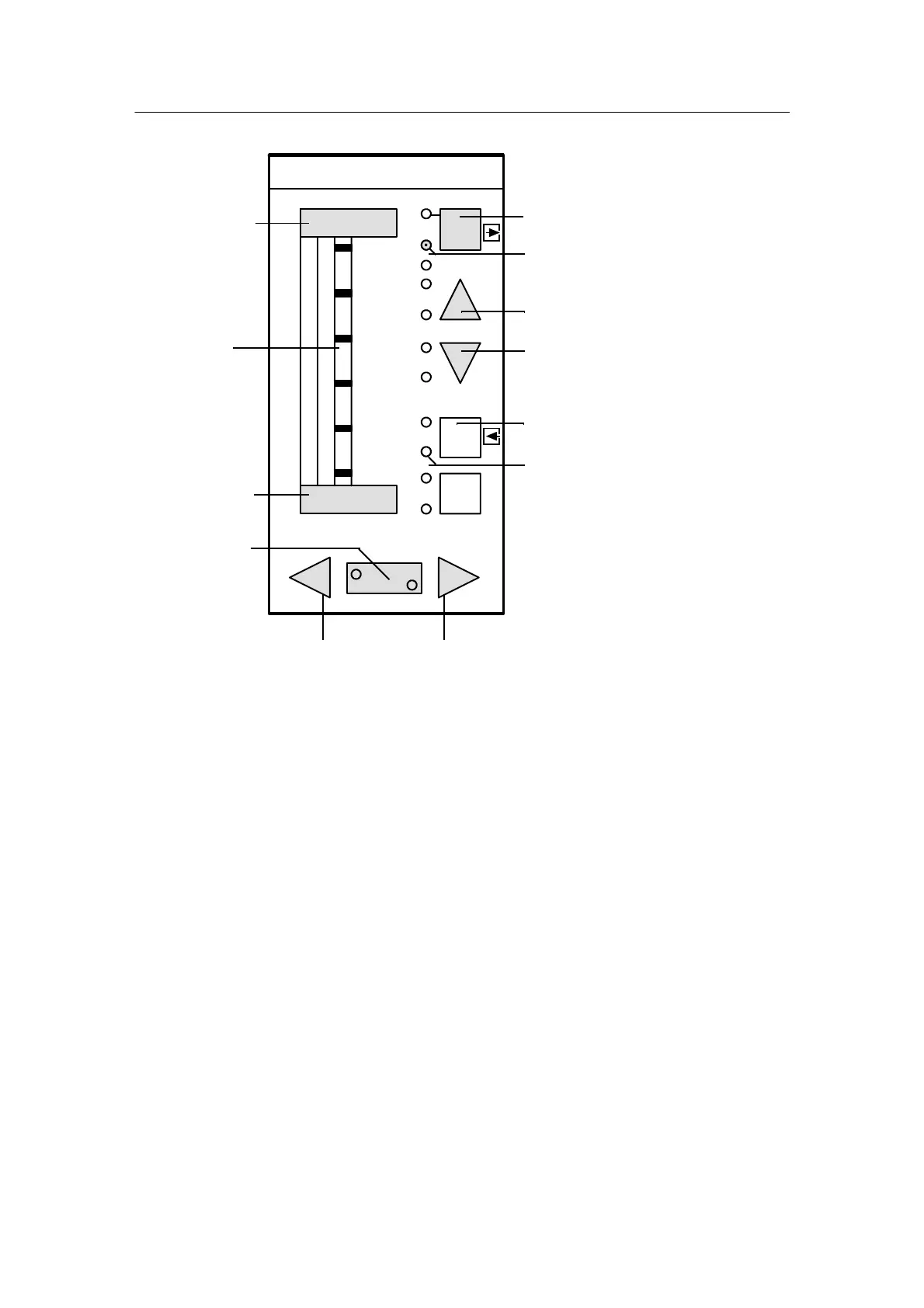

Figure 3-11 Control and display elements in the configuring mode FdEF
