Siemens SIPART DR24 User Manual

7 User Examples
7.3 Set Value Controller K (Example 3)
Manual
184
SIP ART DR24 6DR2410
C79000-G7476-C153-03
7.3 Set Valu e Con t roller K (Example 3)

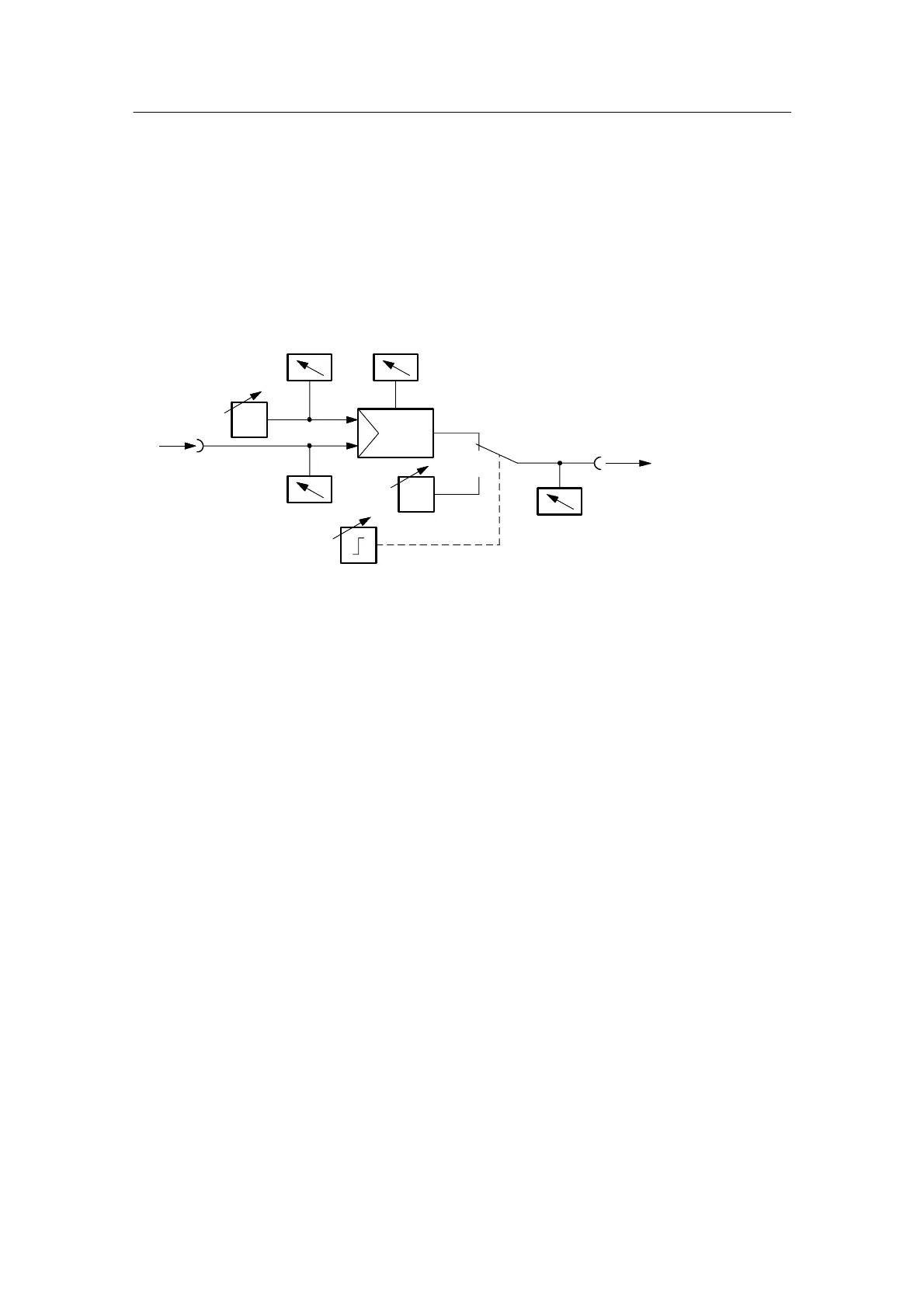

D Problem: set value controller K with adaptation
Display switchover during adaptation w ! xd
The following should be displayed
x, w 0 to 100 %
y 0 to 100 %
x
d
--50 % to +50 %
w
x=4to20mA
y
x (during adaptation)
d
w
Automatic mode
y=4to20mA
Manual/Automatic mode
Manual
mode
y
x
H
- Interfaces of the multi--function unit to the process:
1 analog input AE: x= 4 to 20 mA
1 analog output AA: y = 4 to 20 mA
- Equipment required
Standard SIPART DR24 controller
