3 Operation
3.3 Configuring Mode (Parameterization and Configuring Mode)
3.3.7 Configuring Mode FCon (Switch Functions, Connection)
Manual
156
SIP ART DR24 6DR2410
C79000-G7476-C153-03
- Overwriting with another function (or YES in hdEF)
The existng connection to the inputs and outputs of the changed arithmetic block is re-
moved. The inputs of the redefined function block are occupied by the default of the
newly defined function. The inputs of the other function blocks previously fed by the out-
puts of this function block are identified by ncon.
D Error message ncon Err
It is also permissible to terminate the connection with data sinks identified by ncon. However,
it is advisable to add the missing connections because the desired functions cannot run with
undefined inputs.
See chapter 1.5.6, page 38 ”Error message” for details!
High speed adjust-
ment question
ncon
b01.A
Striped pattern
ID offline
dd1
dd2
dA2/
L14
dA1
tA1
tA2
tA3
tA4
tA5
tA6
tA7
L13
L1
L2
L4
L3
L5
L6
L7
L9
L8
L10
L11
dd3 L12
tA7.6
tACt
Answer
(data source)
b01.1
tA7U
Question
.
.
.
.
PS
(Parameterization/
configuring)
High speed adjustment of answer in SEt
without function in roLL
Enter key ↗: without function
Enter LED: off
Exit LED: flashes
All unnamed keys have no function, all unnamed
LEDs and displays are dark
Exit key↗: return to configuring
preselection mode after FCon

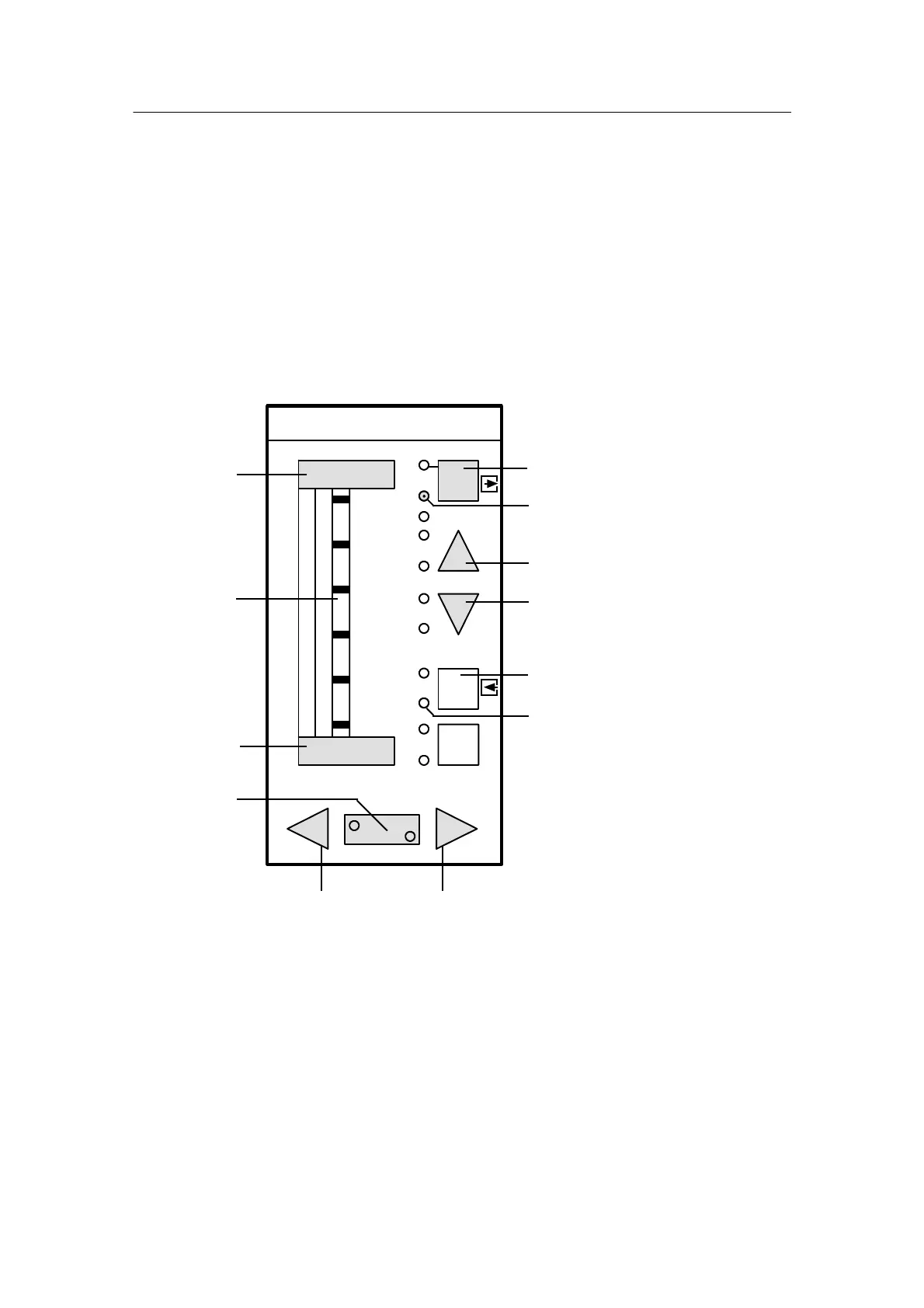

Figure 3-12 Control and display elements in the configuring mode FCon
