Preparing for Operation
50
SIP ART PS2 Manual
A5E00074631-01
3.4.1.2 Connection variant: intrinsically safe
.
NOTE
Only certified intrinsically safe circuits may be connected as power
supply, control and signal circuits.
+
J
4to20mA
Positioner
Digital inputs 1
6DR5010-xExxx
6DR5020-xExxx
6DR5011-xExxx
6
7
8
9
10
+3 V
A
E
Non-hazardous
area
Intrinsically
safe power
source
EEx
Hazardous area zone 1 or zone 2

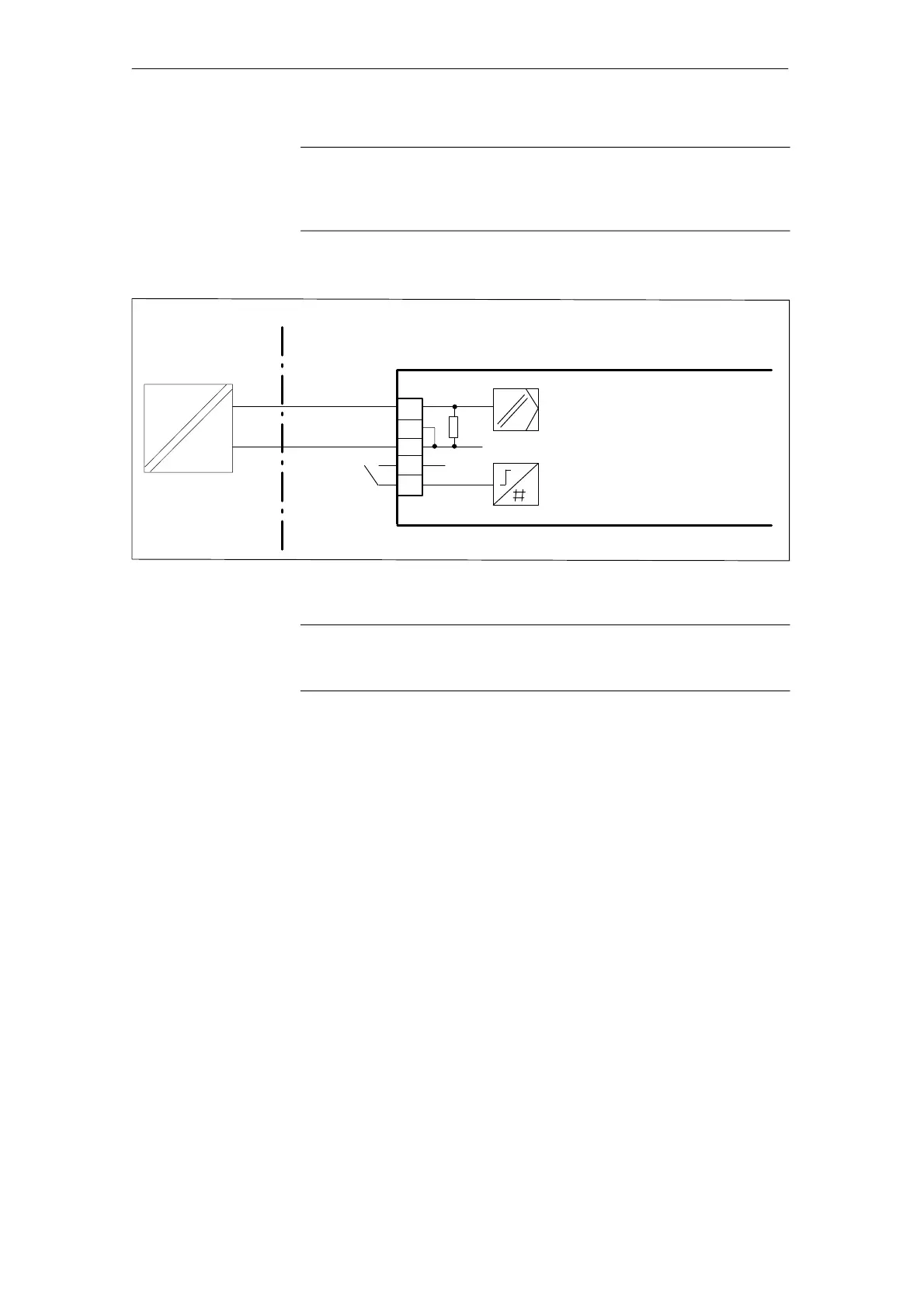

Figure 3-13 Two--wire connection standard controller 6DR50xx-xExxx (power supply from signal current)
.
NOTE
The current i
y
≥ must be 3.6 mA to maintain the power supply.

Siemens SIPART PS2 6DR5010 Series Specifications

General

Enclosure Rating	IP66/NEMA 4X
Communication Protocol	HART
Housing Material	Aluminum or stainless steel
Type	Electropneumatic
Input Signal	4-20 mA
Supply Pressure	1.4 to 7 bar
Stroke Range	3 to 130 mm
Temperature Range	-40°C to +80°C
Ambient Temperature Range	-40°C to +80°C
Mounting	Linear or rotary actuators
Power Supply	4-20 mA loop powered
