Operation
76
SIP ART PS2 Manual
A5E00074631-01
4.3 Operating modes
The positioner can be operated in five operating modes.
1. P-manual mode (ex--factory state)
2. Configuration and initialization
3. Manual mode (MAN)
4. Automatic (AUT)
5. Diagnostic display

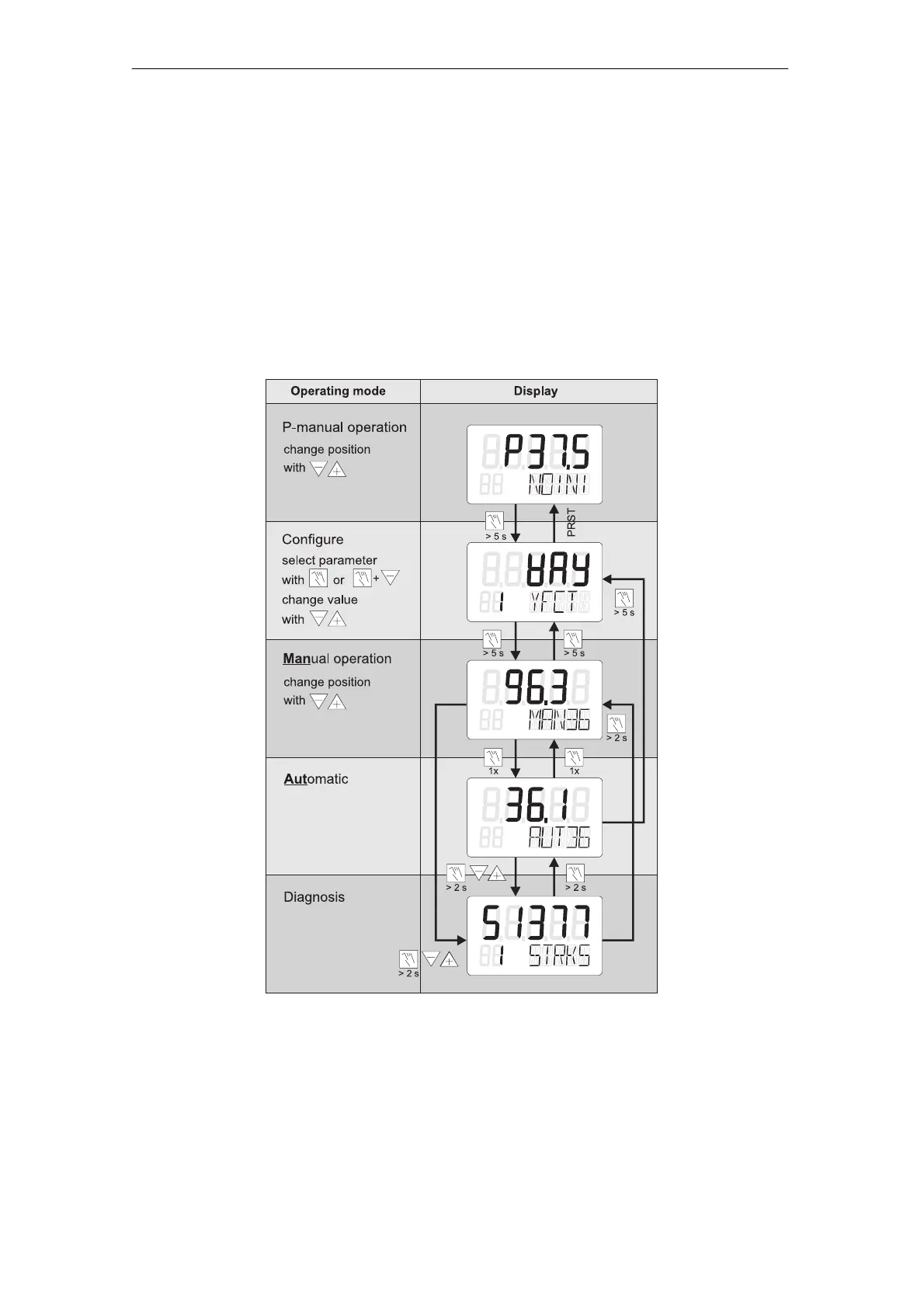

Figure 4-4 gives you an overview of the possible operating modes and
the change between them.
Figure 4-4 Change between the operating modes

Siemens SIPART PS2 6DR5010 Series Specifications

General

Enclosure Rating	IP66/NEMA 4X
Communication Protocol	HART
Housing Material	Aluminum or stainless steel
Type	Electropneumatic
Input Signal	4-20 mA
Supply Pressure	1.4 to 7 bar
Stroke Range	3 to 130 mm
Temperature Range	-40°C to +80°C
Ambient Temperature Range	-40°C to +80°C
Mounting	Linear or rotary actuators
Power Supply	4-20 mA loop powered
