Siemens SIPART PS2 series Hardware Installation Manual

Installing/mounting
3.2 Introduction
Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD
15
3.2
Introduction
In that condition where you are using a Double Acting SIPART PS2 with a Single Acting
actuator, the following must be considered:
With loss of supply air the Double Acting SIPART PS2 will lock in the last position. This
prevents the actuator spring from returning the valve to its fail-safe position. By using the
"venting" gauge block and properly piping the positioner to the actuator the air on the side
opposite the spring can be exhausted back through the air supply line.

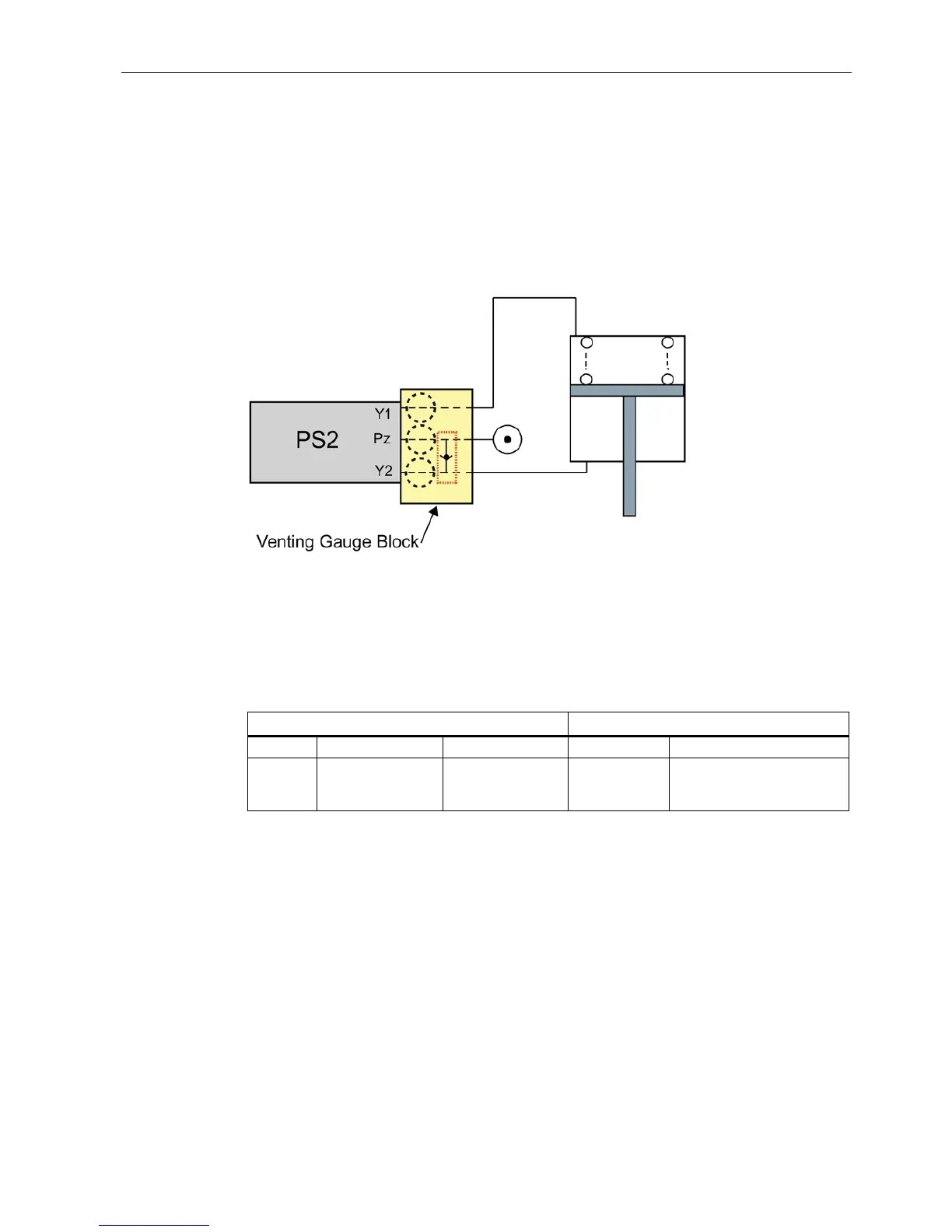

Figure 3-1 SIPART PS2 Venting Gauge Block
Specifications
Supply Pressure
= 7 BAR (101.5 PSI)
Table 3- 1 Weight
Makrolon
Explosion Proof
With PS2
Kit only
With PS2
Kit only
Venting
Gauge
Block
1.7 kg (3.8 lbs) 680.39 g (1.5 lbs) 5.3 kg (11.6
lbs)
680.39 g (1.5 lbs)
Ordering Information
The booster can be ordered as a kit to add to an existing positioner in the field, or can
ordered as an option on a new unit.
Kit Numbers
6DR4004-2RF Venting Gauge Block, Double Acting, ¼” NPT connections
6DR4004-2RE Venting Gauge Block, Double Acting, G 1/4 connections

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
