Siemens SIPART PS2 Compact Operating Instructions

SIPART PS2 (6DR5...)
A5E03436620-06, 04/2015
21

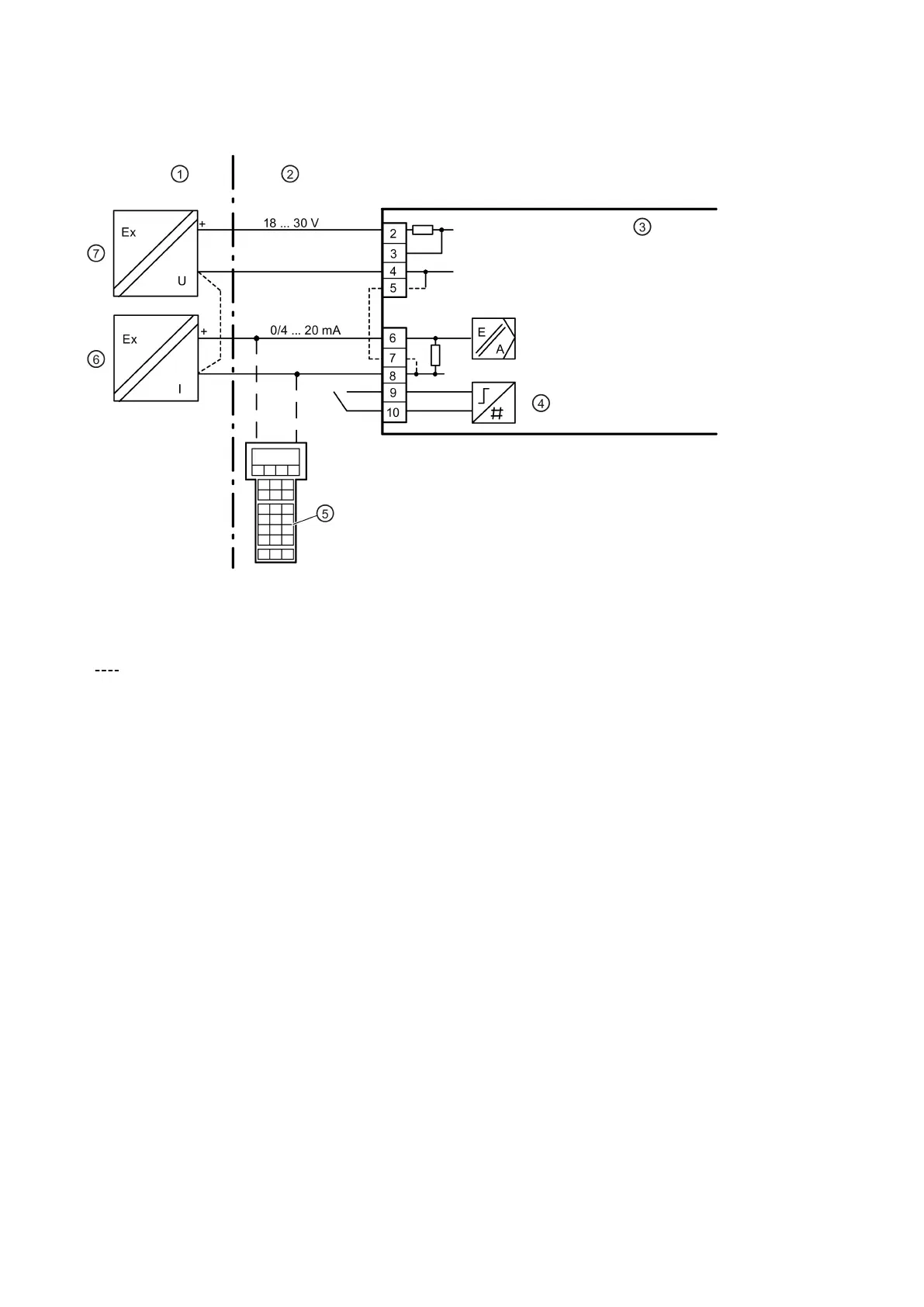

Connection diagram for article numbers 6DR52..-0E/D/F/G/K...
①
Non-hazardous area
⑤
HART communicator
②
Explosive atmosphere
⑥
Signal source
③
Basic electronics
⑦
Power source
④
Binary input 1
Dotted connection lines: only for three-wire connection
Figure 4-8 Device version 2-/3-/4-wire, with connection type 3-/4-wire
For further information about "Split-range" operation, refer to the detailed operating instructions for your respective device
version.

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
