Siemens SIPART PS2 Compact Operating Instructions

SIPART PS2 (6DR5...)
A5E03436620-06, 04/2015
17
4.2 Electric connection
4.2.1 Device 6DR5..0/1/2/3-0N or 6DR5..5-0E
4.2.1.1 Basic electronics with and without HART

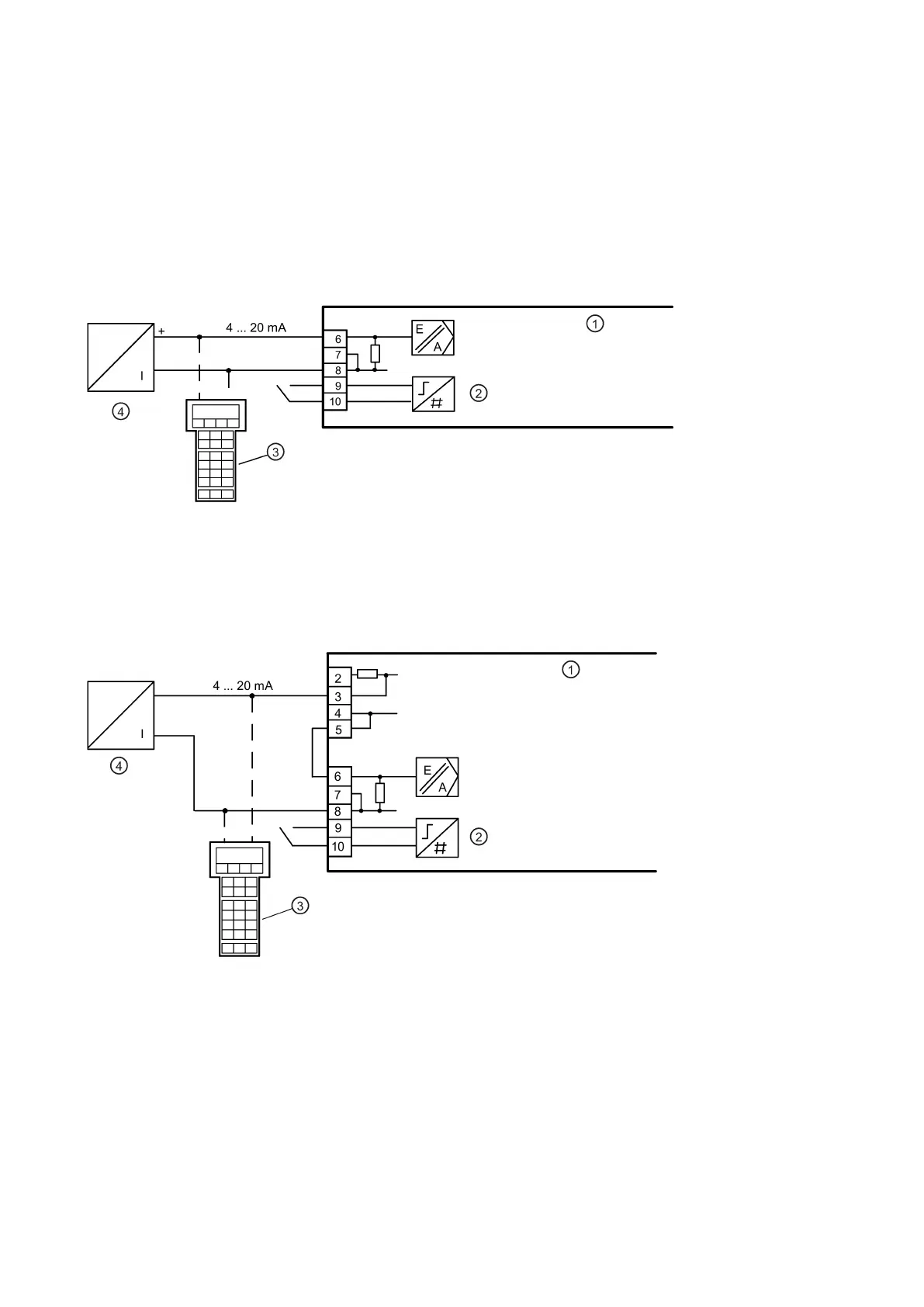

Connection diagram for article numbers 6DR50.0/1/2/3-0N; 6DR50.5-0E; 6DR51.0/1/2/3-0N; 6DR51.5-0E
HART communicator only for 6DR51.0/1/2/3-0N and 6DR51.5-0E
①
Basic electronics
③
HART communicator
②
Binary input 1
④
Signal source
Figure 4-1 Device version 2-wire
Connection diagram for article numbers 6DR52.0/1/2/3-0N; 6DR52.5-0E; 6DR53.0/1/2/3-0N; 6DR53.5-0E
HART communicator only for 6DR52.0/1/2/3-0N and 6DR52.5-0E
①
Basic electronics
③
HART communicator
②
Binary input 1
④
Signal source
Figure 4-2 Device version 2-/3-/4-wire, with connection type 2-wire

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
