Siemens SIPART PS2 Compact Operating Instructions

SIPART PS2 (6DR5...)
18 A5E03436620-06, 04/2015

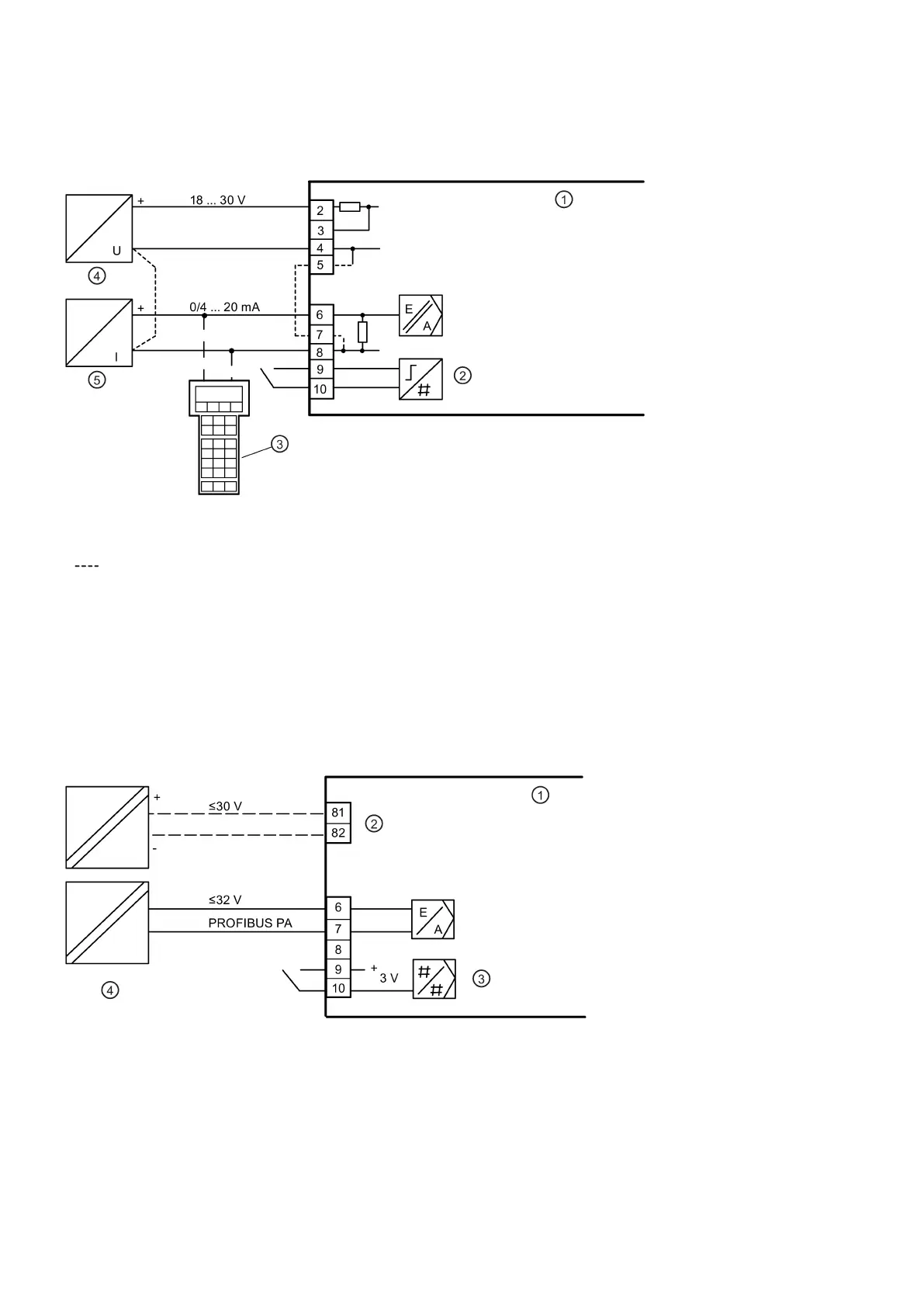

Connection diagram for article numbers 6DR52.0/1/2/3-0N; 6DR52.5-0E; 6DR53.0/1/2/3-0N; 6DR53.5-0E
HART communicator only for 6DR52.0/1/2/3-0N and 6DR52.5-0E
①
Basic electronics
④
Power source
②
Binary input 1
⑤
Signal source
③
HART communicator
Dotted connection lines: only for three-wire connection
Figure 4-3 Device version 2-/3-/4-wire, with connection type 3-/4-wire
Split range
For further information about "Split-range" operation, refer to the detailed operating instructions for your respective device
version.
4.2.1.2 Basic electronics PROFIBUS PA
Connection graphic for article numbers 6DR55.0/1/2/3-0N and 6DR55.5-0E
①
Basic electronics
③
Binary input 1
②
Input: Safety shutdown
④
Power source
Figure 4-4 Device version 2-wire with PROFIBUS PA

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
