Siemens SIPART PS2 Compact Operating Instructions

SIPART PS2 (6DR5...)
A5E03436620-06, 04/2015
19
4.2.1.3 Basic electronics FOUNDATION Fieldbus

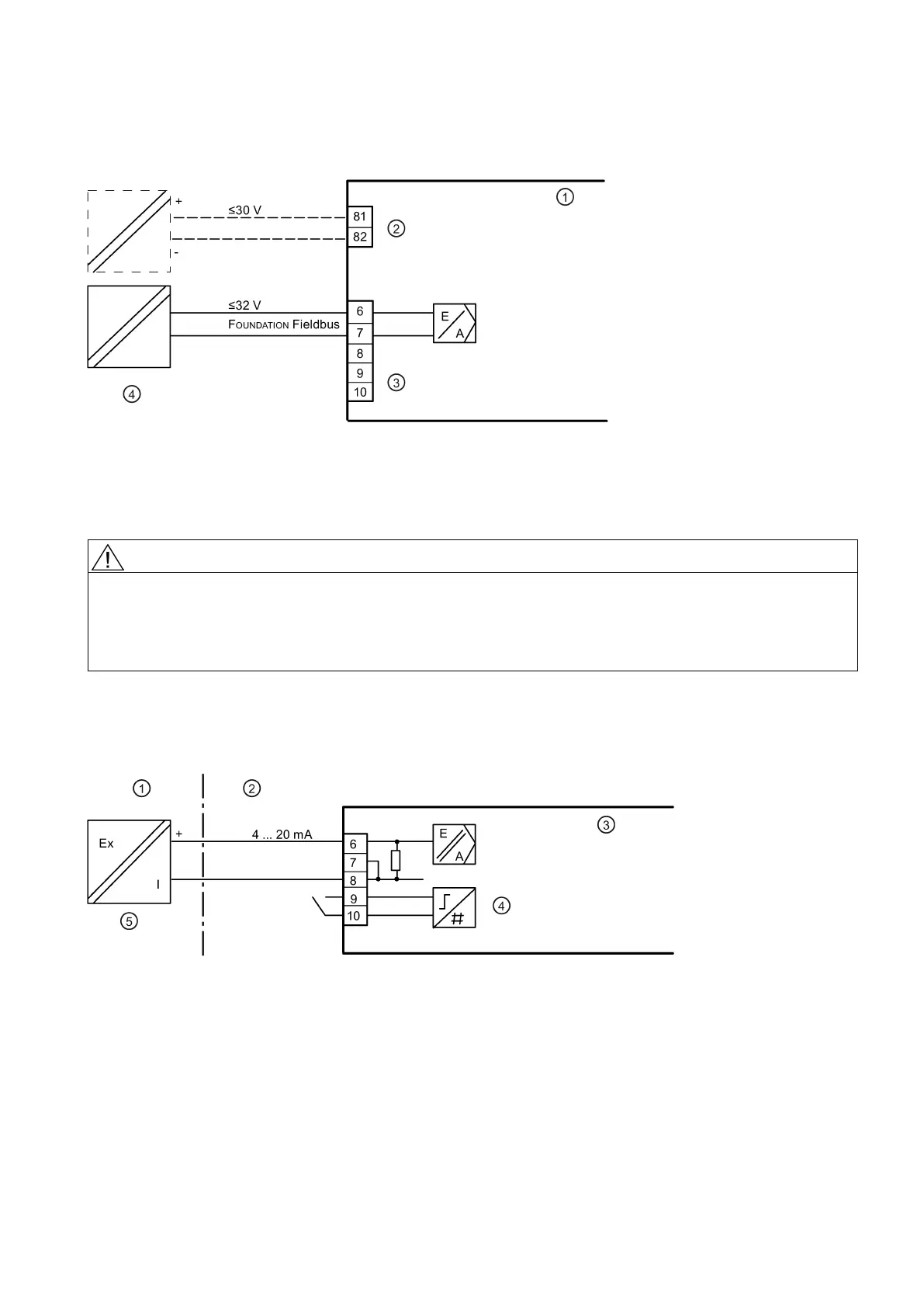

Connection graphic for article numbers 6DR56.0/1/2/3-0N and 6DR56.5-0E
①
Basic electronics
③
Simulation enable
②
Input: Safety shutdown
④
Power source
Figure 4-5 Device version 2-wire with FOUNDATION Fieldbus
4.2.2 Device 6DR5..0/1/2/3-0E/D/F/G/K
WARNING
With intrinsically device version (Ex i)
Risk of explosion in hazardous areas.
For intrinsically safe device versions only the certified circuits may be connected as auxiliary power supply, control and
signal circuits.
•
Make sure that the power source of the used circuits is marked as intrinsically safe.
4.2.2.1 Basic electronics with and without HART
Connection diagram for article numbers 6DR50..-0E/D/F/G/K...
①
Non-hazardous area
④
Binary input 1
②
Explosive atmosphere
⑤
Signal source
③
Basic electronics
Figure 4-6 Device version 2-wire

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
