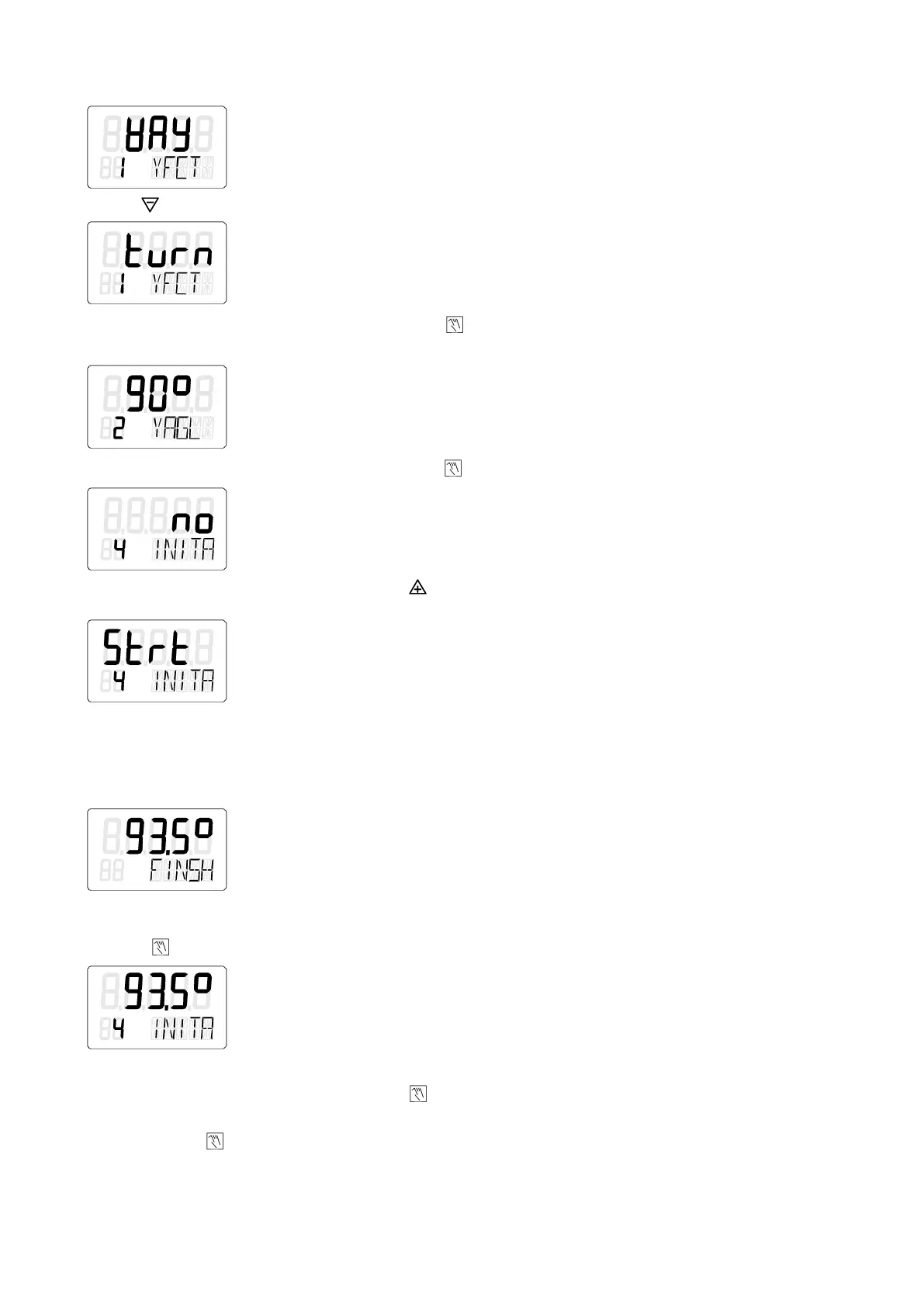

2. Use the button to change from linear actuator to part-turn actuator until the display shows the following:
3. Call the "2.YAGL" parameter. To do this, briefly press the button. This parameter has already been set to 90°
automatically. The display shows the following:
4. Call the "4.INITA" parameter. To do this, briefly press the button. The display shows the following:
5. Start the initialization process. To do this, press the button for at least 5 seconds until the display shows the
following:
The positioner runs through five initialization steps during the automatic initialization process. Displays for the
initialization steps from "RUN1" to "RUN5" are shown in the lower line on the display. The initialization process depends
on the actuator used, and takes up to 15 minutes.
6. The following display indicates that the automatic initialization is complete. The total angle of rotation of the actuator is
shown on the upper line on the display:
Aborting the automatic initialization process
1. Press the button. The display shows the following:
The positioner is in the "Configuration" mode.
2. Exit the "Configuration" mode. To do this, press the
button for at least 5 seconds.
The software status is displayed.
After releasing the
button, the positioner is in "P manual mode". The part-turn actuator is not initialized.
