3 Installation
3.1 Installation Position, Dimensions
Installation Position
The interface node IFN AI-D is suited for installation on a DIN Rail or for attachment with
mounting angles.
Dimensions and Expansion Spaces
Chart 1 Dimensions
Dimensions
(mm)
with DIN rail with mounting angles
Installation face
length
86 86
Installation height 210 243
Installation depth 96 97

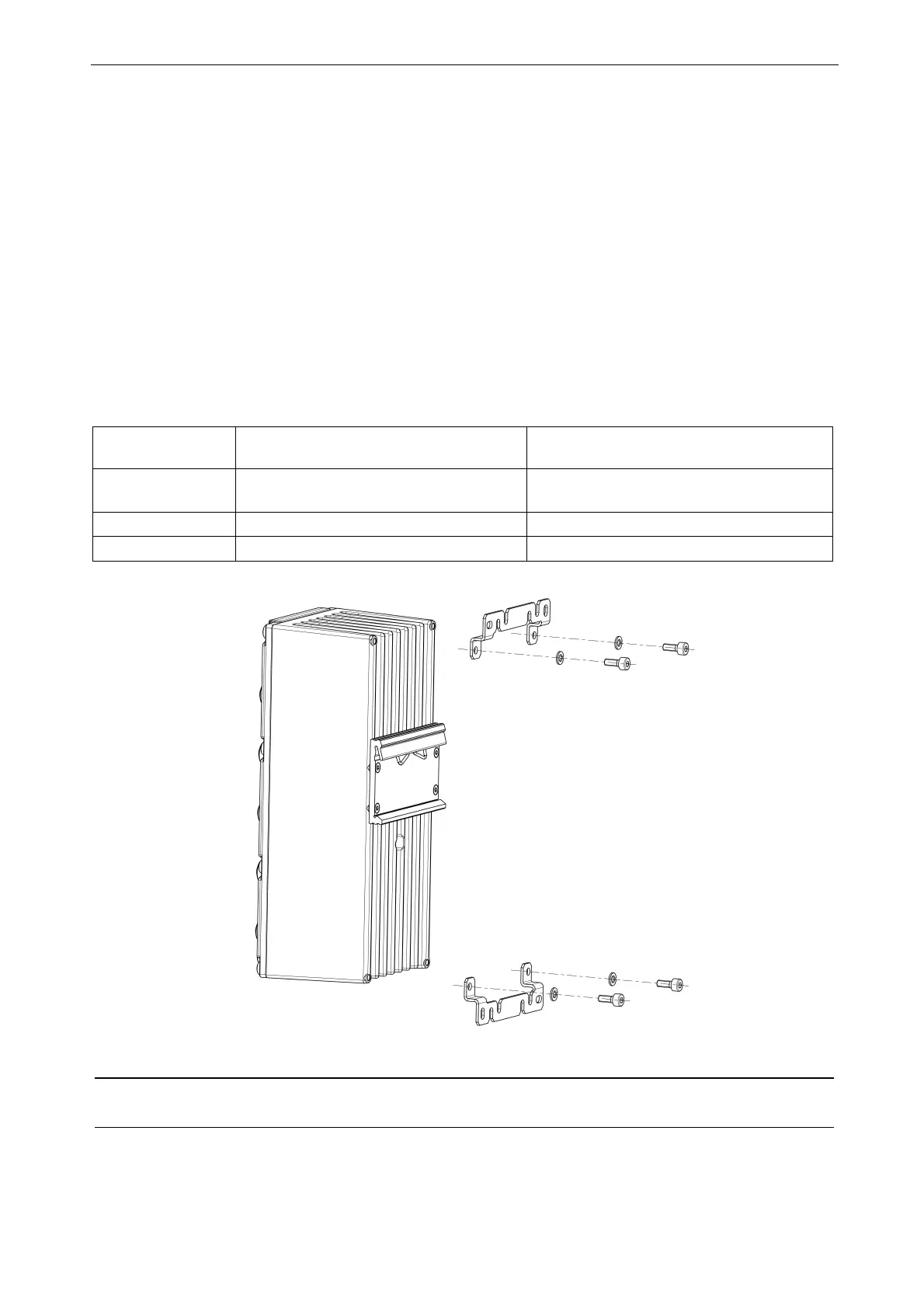

Picture 3 Correct Installation Position
Caution
The spaces which are specified in chapter 6 on top, underneath and in front of the device have to be kept.
