Data type definitions
7SJ61/62/63 6MD63 – Modbus
C53000-L1840-C001-01
5-2
5.1 Single command (SC) / Single-point indiation (SP)
Range of values:
0 – OFF
1 – ON
Bit x+1
SC/SP 1
...
...
Bit x+2
Bit x
SC/SP 2
Coil / input status register or one bit of a holding register
SC/SP 3

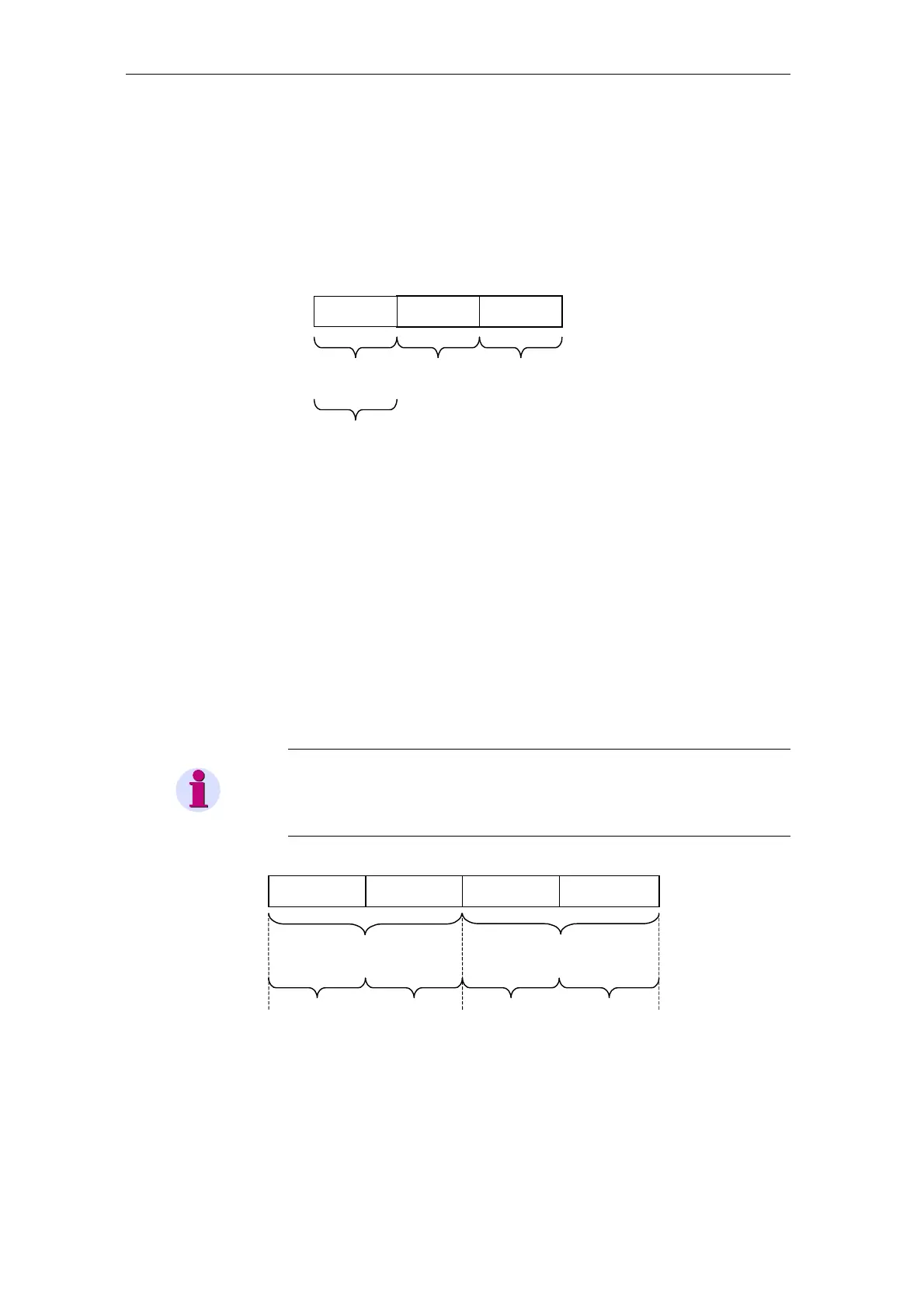

Figure 5-1 Data typ single command / single-point indication
5.2 Double command (DC) / Double-point indication (DP)
Range of values:
0 (bit 1 = 0 and bit 0 = 0) - „Not applicable“ for DP,
not permissible for DC
1 (bit 1 = 0 and bit 0 = 1) - OFF
2 (bit 1 = 1 and bit 0 = 0) - ON
3 (bit 1 = 1 and bit 0 = 1) - Error status/Intermediate position for DP,
not permissible for DC
Note
• „Not applicable“: double-point indication is not configured (not
assigned to a binary input).
• The value „11“ ist transmitted for intermediate position „00“ too.
Bit 0
DC/DP 1
... ...
Bit 1 Bit 0
DC/DP 2
Coil status
register
xxxx
Bit 1
Coil status
register
xxxx+1
Coil status
register
xxxx+2
Coil status
register
xxxx+3
Figure 5-2 Data type double command / double-point indication
