Feeder Shutdown and Commissioning
245
7SS52 V4 Manual
C53000-G1176-C182-3

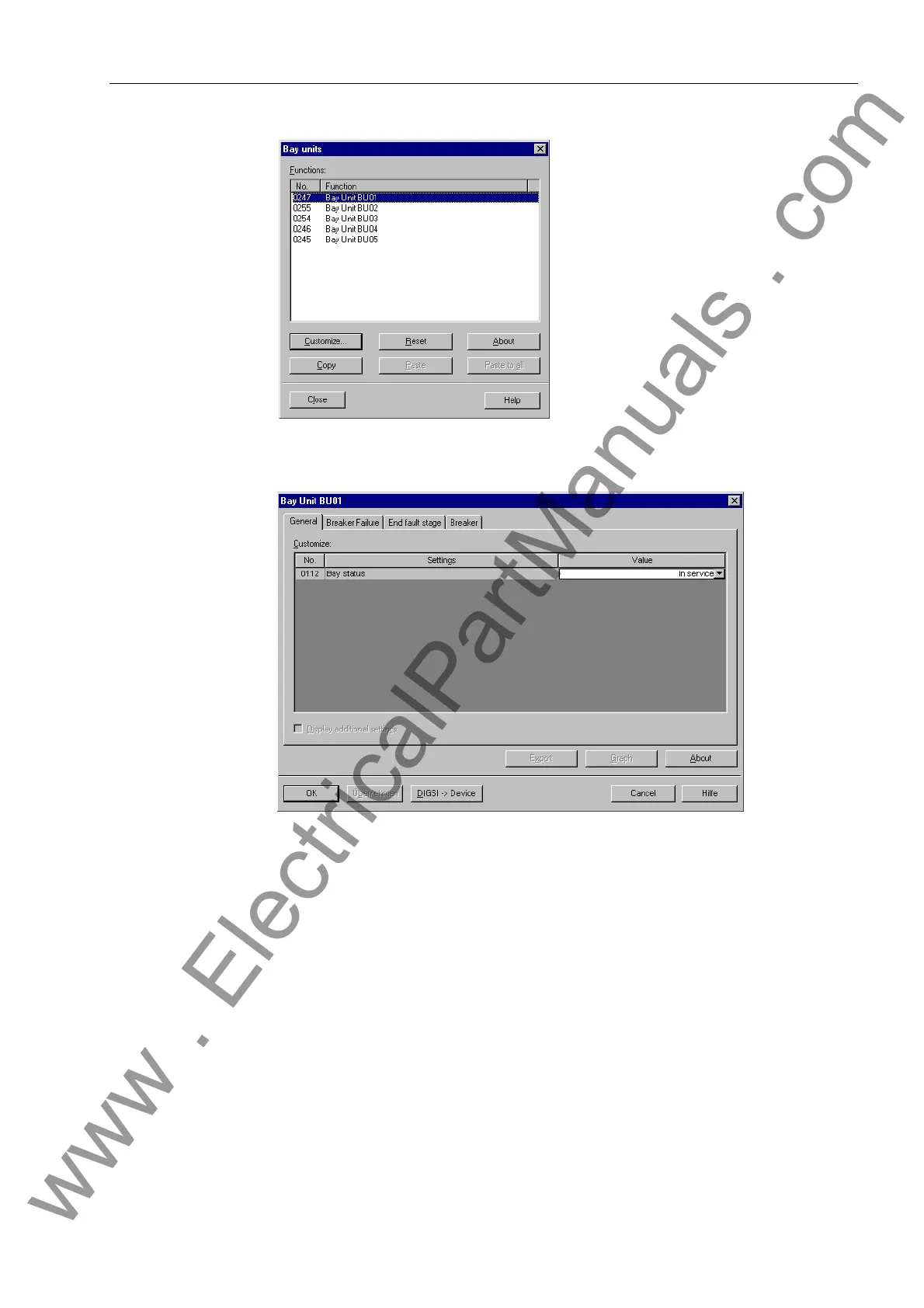

Figure 6-29 Bay units window − Example
Figure 6-30 Bay status window − Example
To put a single bay for the busbar protection out of or into service at the bay unit (PC
linked to central unit or to bay unit) proceed as follows:
 Open the corresponding bay unit in DIGSI Manager.
 Click Test in the navigation window.
 Double-click Test in the function selection. The Tests window opens (Figure 6-22,
page 236).
 Click the entry COMMUNICATION WITH CENTRAL UNIT and then click Run....
The window “Test - 4500 COMMUNICATION WITH CENTRAL UNIT” opens
(Figure 6-31, page 246).
