Repair
305
7SS52 V4 Manual
C53000-G1176-C182-3
Bay unit To replace the battery in the bay unit:
Loosen the screws and swing open the front panel to the left.
The battery is located on the bottom front of the PFE module
(Figure 8-6, page 305).

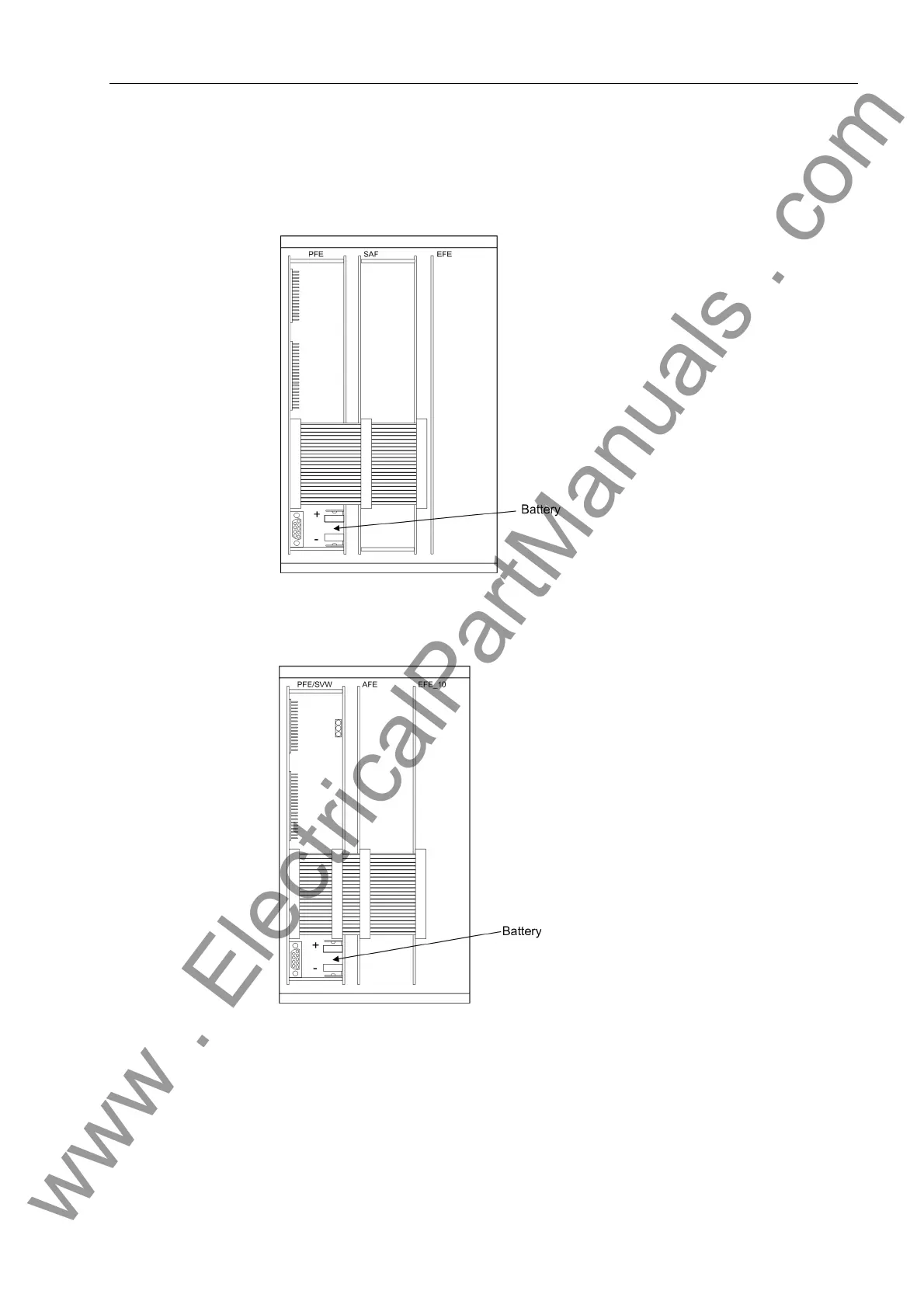

Figure 8-6 Front view after removing the front panel, and location of the buffer battery
7SS523
Figure 8-7 Front view after removing the front panel, and location of the buffer battery
7SS525
Use the cable binder to pull the spent battery out from its snap-in holder.
