Synchronous Motors 1FK7
Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1
25
Application
2
2.1 Environment
2.1.1 Mounting position

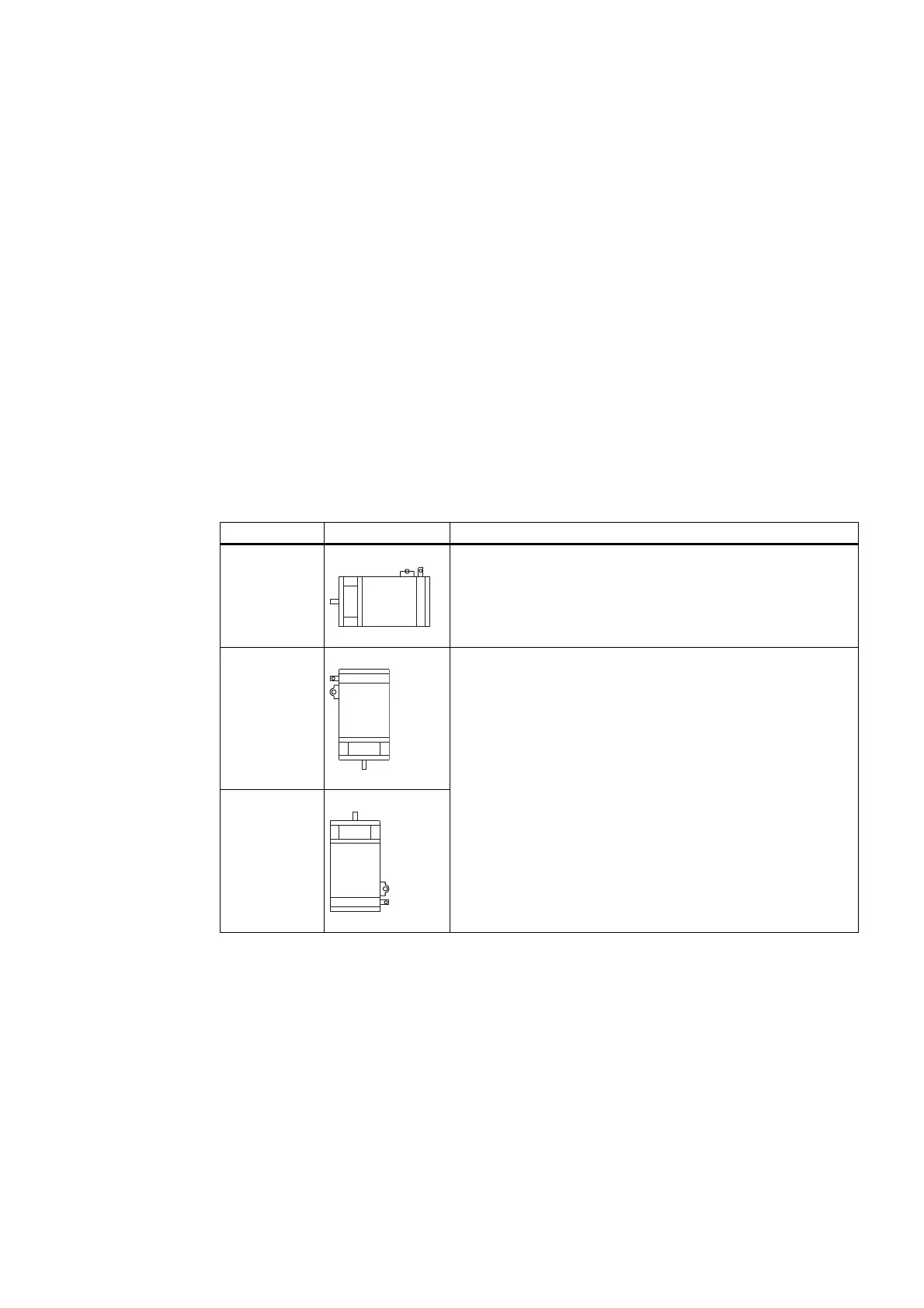

Table 2-1 Types of construction (accdg. to IEC 60034-7)
Name Representation Description
IM B5
Standard
IM V1
IM V3
The 1FK7 motors can be used in types of construction
IM V1 and IM V3 without special ordering.
Note:
When configuring the IM V3 type of construction, attention must
be paid to the permissible axial forces (weight force of the drive
elements) and especially to the necessary degree of protection.
2.1.2 Influence of the mounting type and mounted components
Some of the motor power loss is dissipated through the flange when the motor is connected
to the mounting flange.
