Synchronous Motors 1FK7
30 Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1
2.1.6 Operation under vibrational or shock stress conditions
In order to ensure problem-free operation and a long service life, the vibration values defined
in DIN ISO 10816 should not be exceeded.
Table 2-5 Vibration values
Vibrational velocity V
rms
[mm/s] accdg. to
DIN ISO 10816
Frequency f [Hz] Acceleration a [m/s
2
]
4,5 10 0,4
4,5 250 10
Deviating from the specified standard, motors 1FK702 to 1FK710 may be operated with
higher loads, with the stipulation that the service life will be reduced. In this case, only
operation outside the mounted natural frequency is permissible.
Peak acceleration Axial 20 m/s
2
Radial 50 m/s
2
Shock duration 3 ms 3 ms
2.1.7 Cantilever and axial forces
Cantilever force stressing
Point of application of cantilever forces F
Q
at the shaft end
• for average operating speeds
• for a nominal bearing service life (L
10 h
) of 20,000 h
)
4
[
O

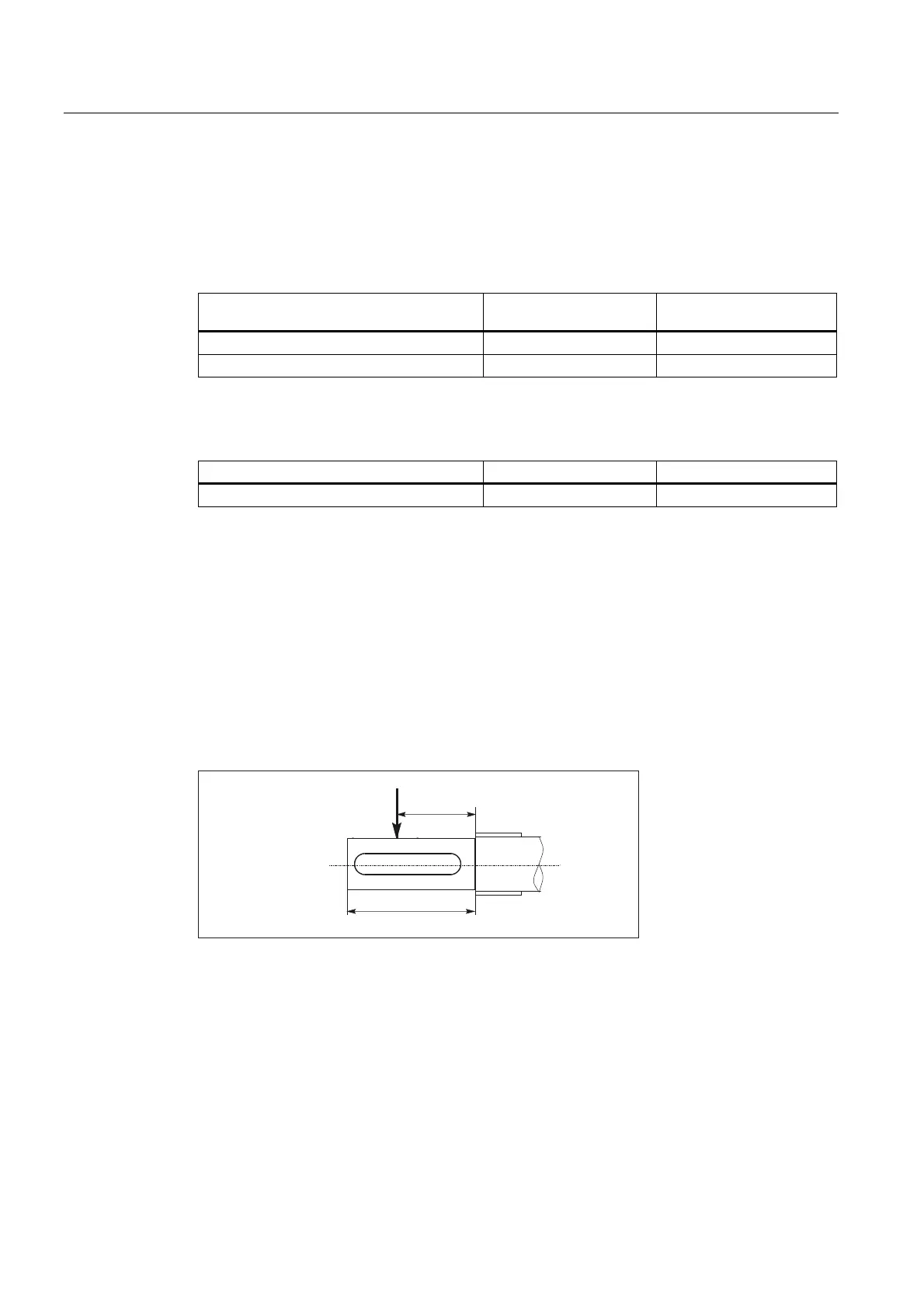

Figure 2-3 Force application point at the drive shaft end
Dimension x: Distance between the point of application of force F
Q
and the shaft shoulder
in mm.
Dimension l: Length of the shaft end in mm.
For cantilever force diagrams, refer to the section "Technical Data and Characteristics,
Cantilever Force Diagrams".
