Description, device design, dimension drawing
2.5 Buttons and selector switches
Selectivity modules
Manual, 12.2014, C98130-A7579-A1-1-7629
17
Buttons and selector switches
2.5.1

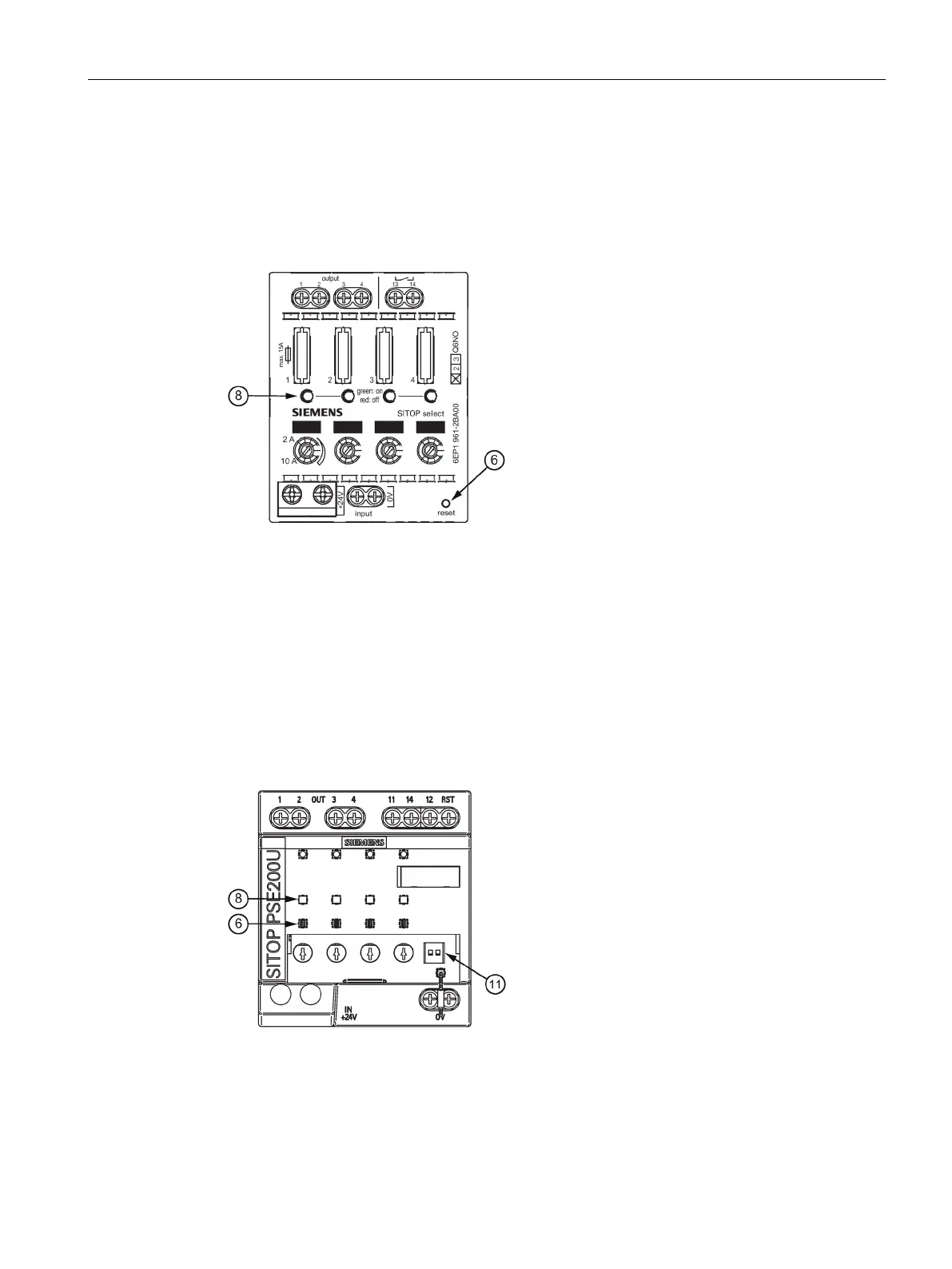

Figure 2-6 Reset button SITOP select
The reset button ⑥ for the SITOP select selectivity module has the following two functions:
1. resets all outputs automatically switched off due to an overload condition (see Chapter
Electronic overload shutdown and reset (Page 19)).
2. is used to program the sequential switch-on delay (see Chapter Setting the switch-on
delay time (Page 24).
Figure 2-7 Buttons and selector switches, SITOP PSE200U
