Selectivity modules
Manual, 12.2014, C98130-A7579-A1-1-7629
33
Mounting position, mounting clearances
Standard mounting position
The device is mounted on standard mounting rails according to EN 60715 35×7,5/15. The
device must be mounted vertically in such a way that the input terminals are at the bottom.
A clearance of at least 50 mm should be maintained above and below the device (maximum
depth of the cable duct, 50 mm).
No space is required at the side.

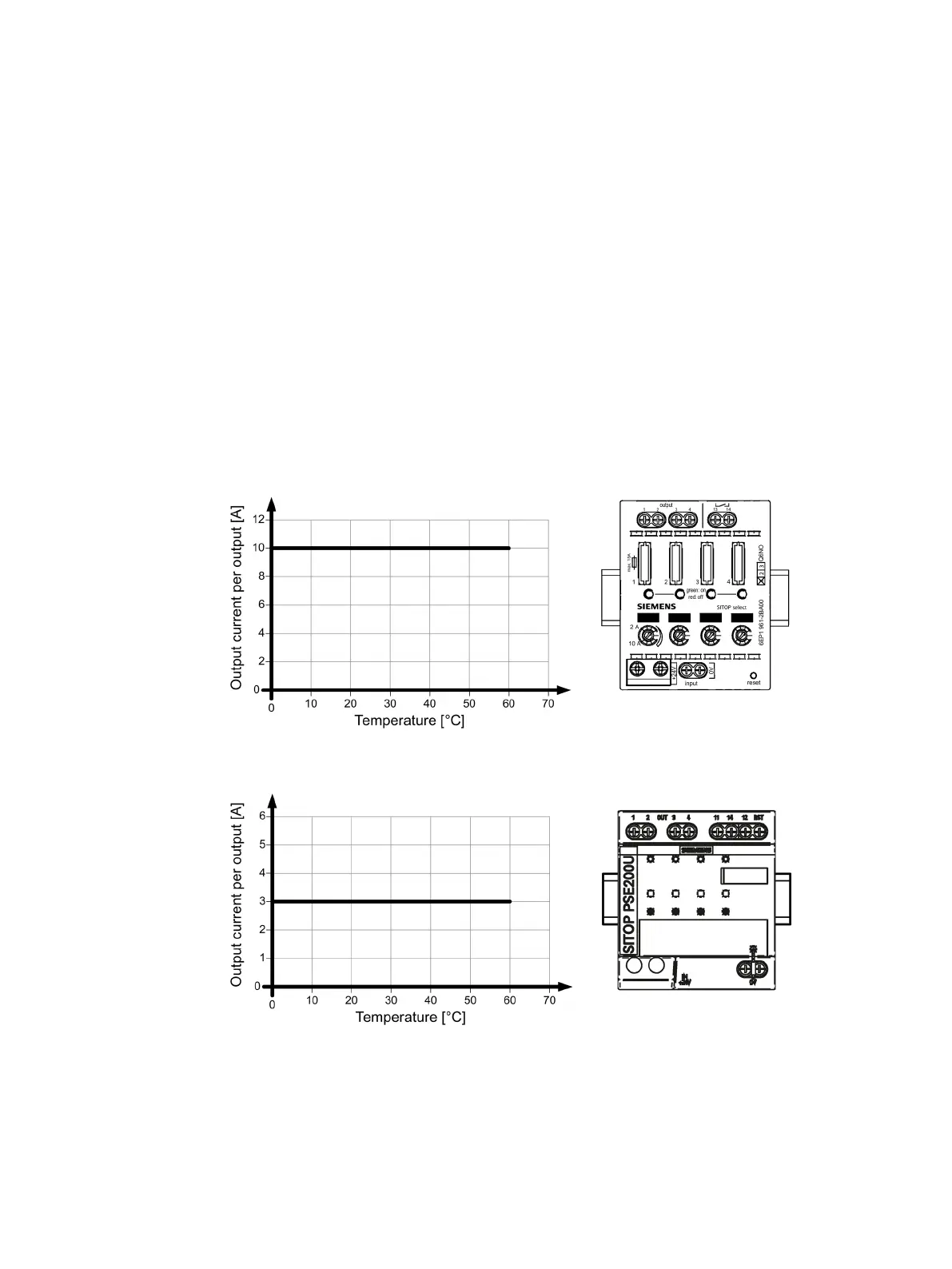

Individual output current as a function of the ambient temperature and installation altitude
Figure 4-1 6EP1961-2BA00: Output current in the standard mounting position
Figure 4-2 6EP1961-2BA11 and 6EP1961-2BA31 output current for the standard mounting position
