5.2 Output-side connection
Selectivity modules
Manual, 01.2017, C98130-A7579-A1-2-7629
45
5.2
Output-side connection
(see Chapter Technical data (Page 47))
③
+24 V output

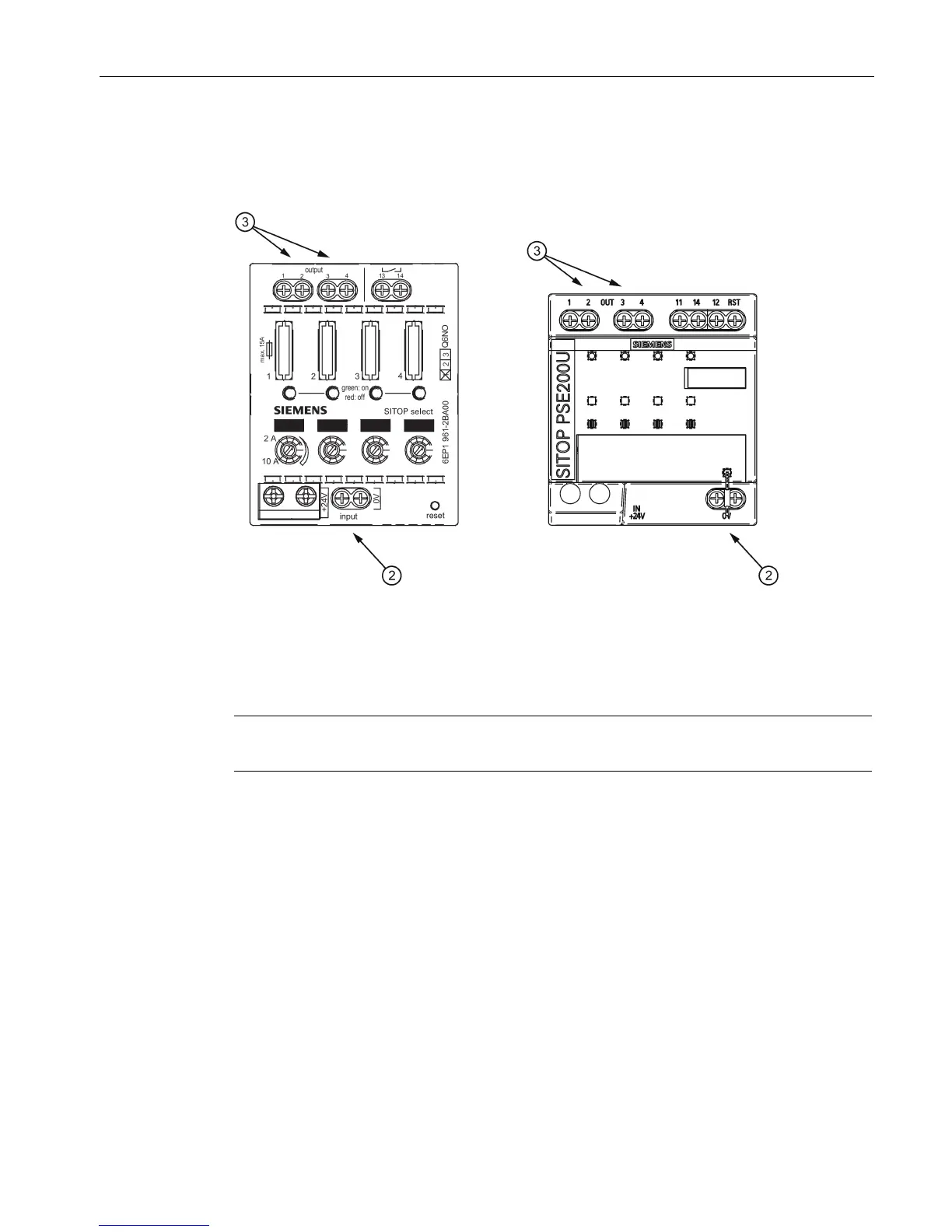

Figure 5-2 Output connection
The load to be supplied is connected through output terminals ③ labeled OUT 1, 2, 3, 4.
(terminal cross-sections, see Figure Terminal data (Page 13)).
Note
The 0
V of the loads must be routed directly to the power supply using separate cables!
