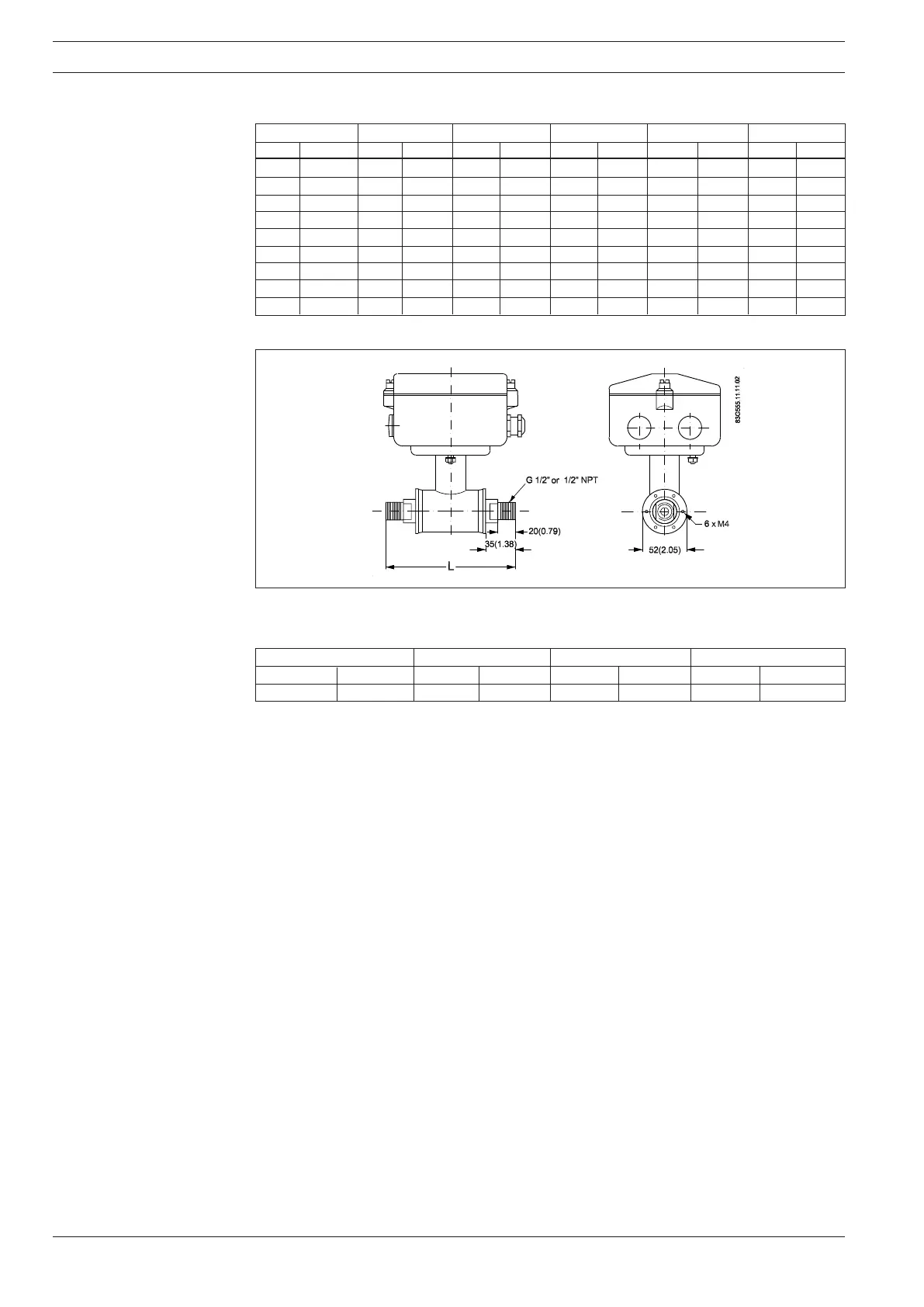

SITRANS F M Electromagnetic flowmeter type MAG 1100, DN 2 - DN 100, 1/12" - 4"
The MAG 1100 DN 2, 3, 6 and DN 10 are prepared for G ½" (ISO) or ½" NPT pipe connection.
The length "L" varies dependent on the gasket choice.
Dimensions and weight
(continued)
The total build-in length "L" [mm/[inch]] depends on the gasket selected.
Size EPDM Graphite PTFE (Teflon) Without gasket Earthing ring
DN Inch [mm] [inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm] [inch]
2
1
/
12
64 2.52 66 2.60 70 2.75 64 2.52 77 3.03
2 ...10
1)
1
/
12
...
3
/
8
64 2.52 66 2.60 70 2.75 64 2.52 77 3.03
15 ½ 65 2.56 66 2.60 70 2.75 64 2.52 77 3.03
25 1 80 3.15 81 3.19 85 3.35 79 3.10 92 3.62
40 1½ 95 3.74 96 3.78 100 3.94 94 3.70 107 4.21
50 2 105 4.13 106 4.17 110 4.33 104 4.05 117 4.61
65 2½ 130 5.12 131 5.15 135 5.31 129 5.05 142 5.60
80 3 155 6.10 156 6.14 160 6.30 154 6.00 167 6.57
100 4 185 7.28 186 7.31 190 7.48 184 7.20 197 7.76
Sensor MAG 1100 DN2...10 (1/12”...3/8") with adaptors
Without gasket EPDM Graphite Teflon
[mm] [inch] [mm] [inch] [mm] [inch] [mm] [inch]
150 5.9 150 5.9 152 6.0 156 6.1
Important note:
For compact installation with the MAG 6000 I, transmitter to be supported to avoid tension on sensor
part.
