2
Configuring intrusion control units
Configuring an SPC4000/SPC5000/SPC6000
18
Building Technologies A6V10359489_a_en
CPS Fire Safety 30.09.2016
– In case of network link (see Figure
Setting the network communication
options
), set the IP address of the SI410 control unit and the TCP Port
Number used in the network communication.

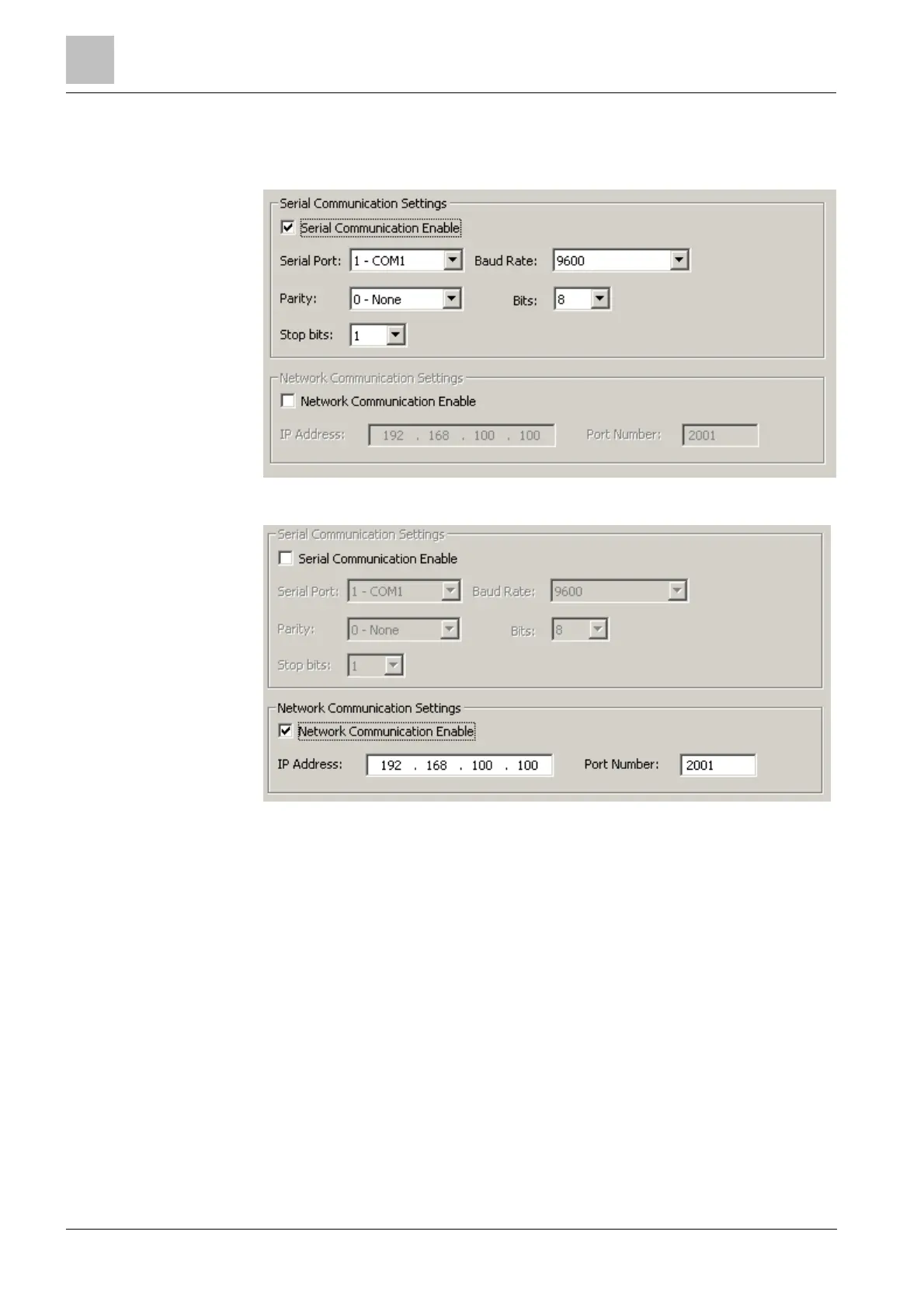

Setting the serial communication options
Setting the network communication options
2.2 Configuring an SPC4000/SPC5000/SPC6000
The SPC4000, SPC5000 and SPC6000 are intrusion detection units belonging to
the SPC series. They can support both wired and wireless intrusion devices (true
hybrid controller) and a LAN interface possibly integrated by additional
communications modules (PSTN/GSM/RF). Starting from SPC V3.1 all the SPC
model types support Ethernet connection.
Intrusion inputs can be operated in groups, organised in
Areas
and
Zones
. Exact
limits depend on the SPC model.
The SPC units can communicate to an external system over a network TCP/IP
connection. The MM8000/MK8000 systems can support the FlexC protocol
(starting from SPC V3.6) and the EDP protocol (Europlex Datagram Protocol). The
two protocols are managed by 2 different drivers. The SPC panel can be linked to 1
driver only, but you can create both drivers in the SPC project with a single license.
The FlexC protocol is an encrypted protocol which provides more information and
commands than the EDP protocol, and offers a redundancy mechanism which
supports up to 9 backup physical paths between the SPC panel and the
management station.
