Configuring intrusion control units
Configuring a CZ12
42
Building Technologies A6V10359489_a_en
CPS Fire Safety 30.09.2016
- Door monitoring zones
- Users
- Time programs
Linking the zones to the sections
l Drag and drop the zones to the sections where they belong.
Linking the CZ12 to the Communication network
Link the CZ12 node to the Cerloop, CDI-Net, or NK8000:
1. Expand the network folders until you reach the node that represents the
network physically connected to the CZ12 (Cerloop, CDI-Net, or NK8000).
2. Select the CZ12 node.
3. Drag and drop the CZ12 node to the network node.
a When the link is established, a new node appears on the structure tree, and its
properties can be seen on the Node tab.
Note:
The valid link position for Cerloop is always the same main node,
representing the entire loop. The valid link positions on CDI-Net/NK8000 units are
distributed along the subsystem lines.
Note: Composer helps you in recognising a valid link by showing a shortcut Link
icon instead of the circle No-link icon .

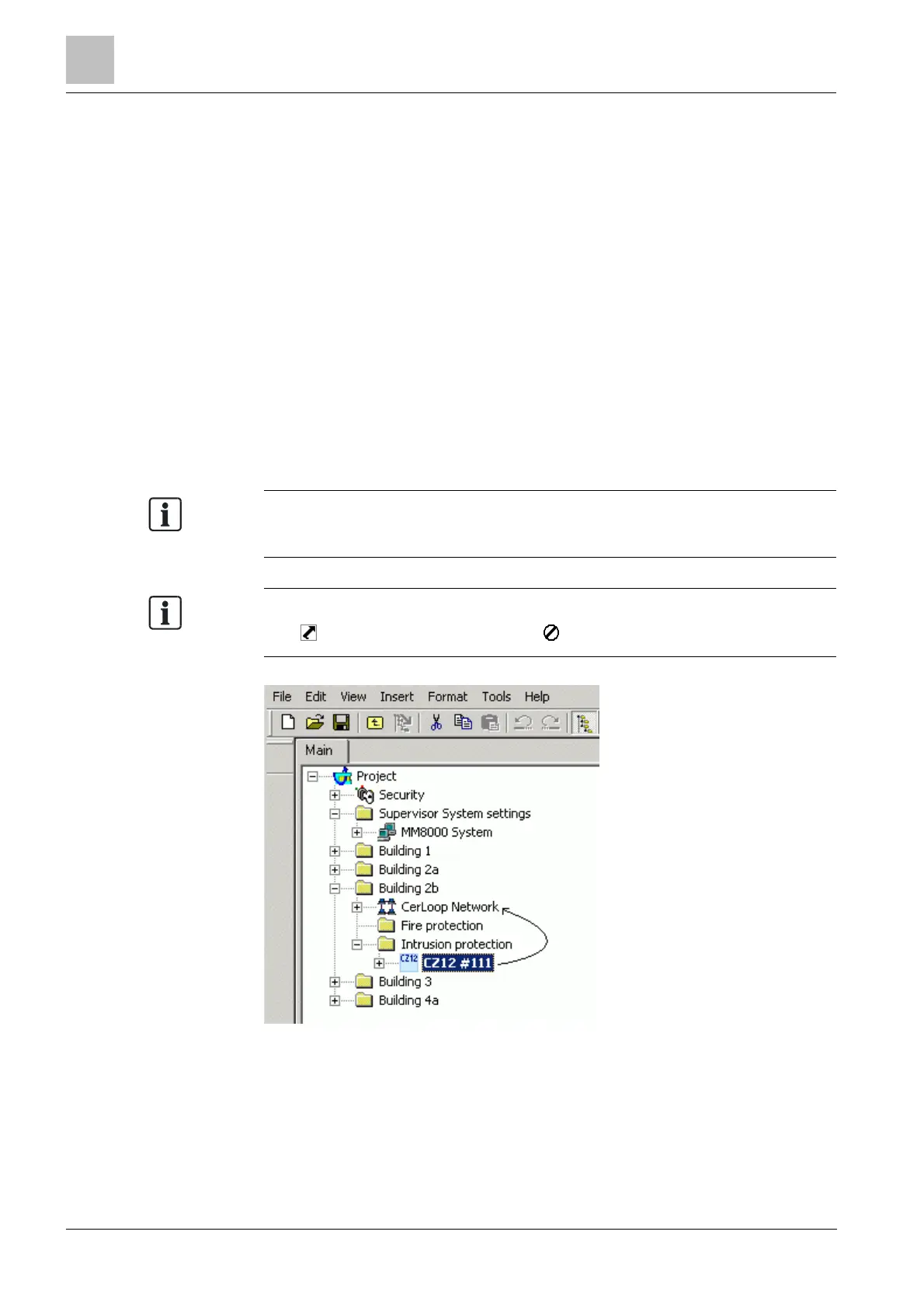

Linking CZ12 to a Cerloop network
