Positioning and connecting en
33

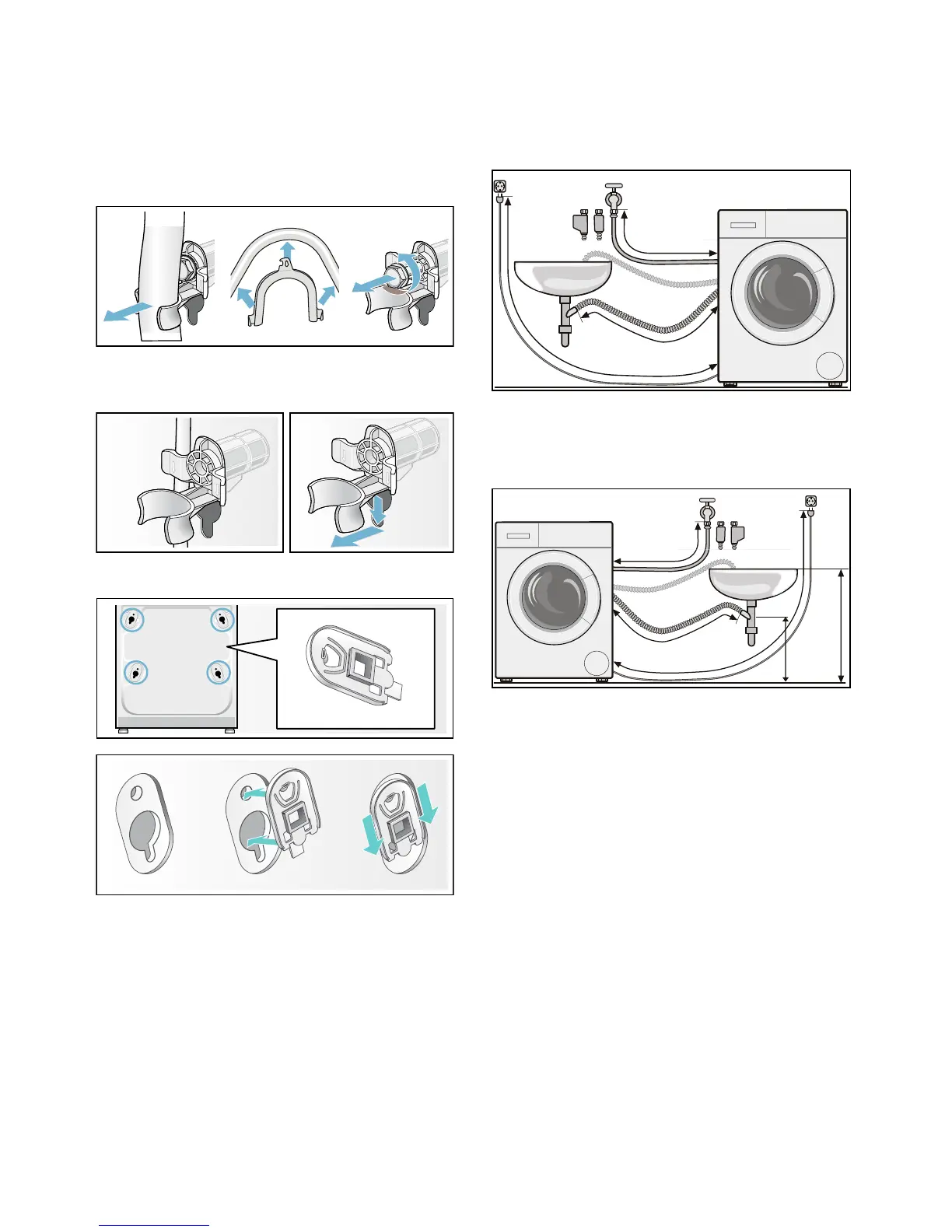

1. Take the hoses out of the holders.
2. Take hoses out of the elbow and
remove elbow.
3. Unscrew and remove all four
transport brace screws.
4. Remove the mains cable from the
holders. Remove sleeves.
5. Insert covers.
Note: Lock the covers firmly in
place by applying pressure to the
snap-in hooks.
Hose and cable lengths
Connection on left side
or
Connection on right side
Note: If the hose holders are used, the
possible hose lengths are reduced!
Tip: The following are available from
specialist dealers/after-sales service:
■ Extension for Aqua-Stop or cold
water inlet hose (approx. 2.50 m).
Order no. WZ10130
■ A longer supply hose (approx. 2.20
m) for standard model.
a
FP
a
FP
a
FP
a
FP
a
FP
a
FP
a
FP
a
FP
PD[
FP
PLQ
FP
