Sierra Wireless oMG 2000 - Install the OMG

Rev 1 Jul.16 10 4119612
5
5: Install the oMG
1. If you are bench testing using the optional AC adapter, proceed to Chapter 7 on
page 13.
2. Mount the unit inside the vehicle in a waterproof area using its mounting holes.
Be sure there is 3.5 inches clearance as shown in Figure 5-1.

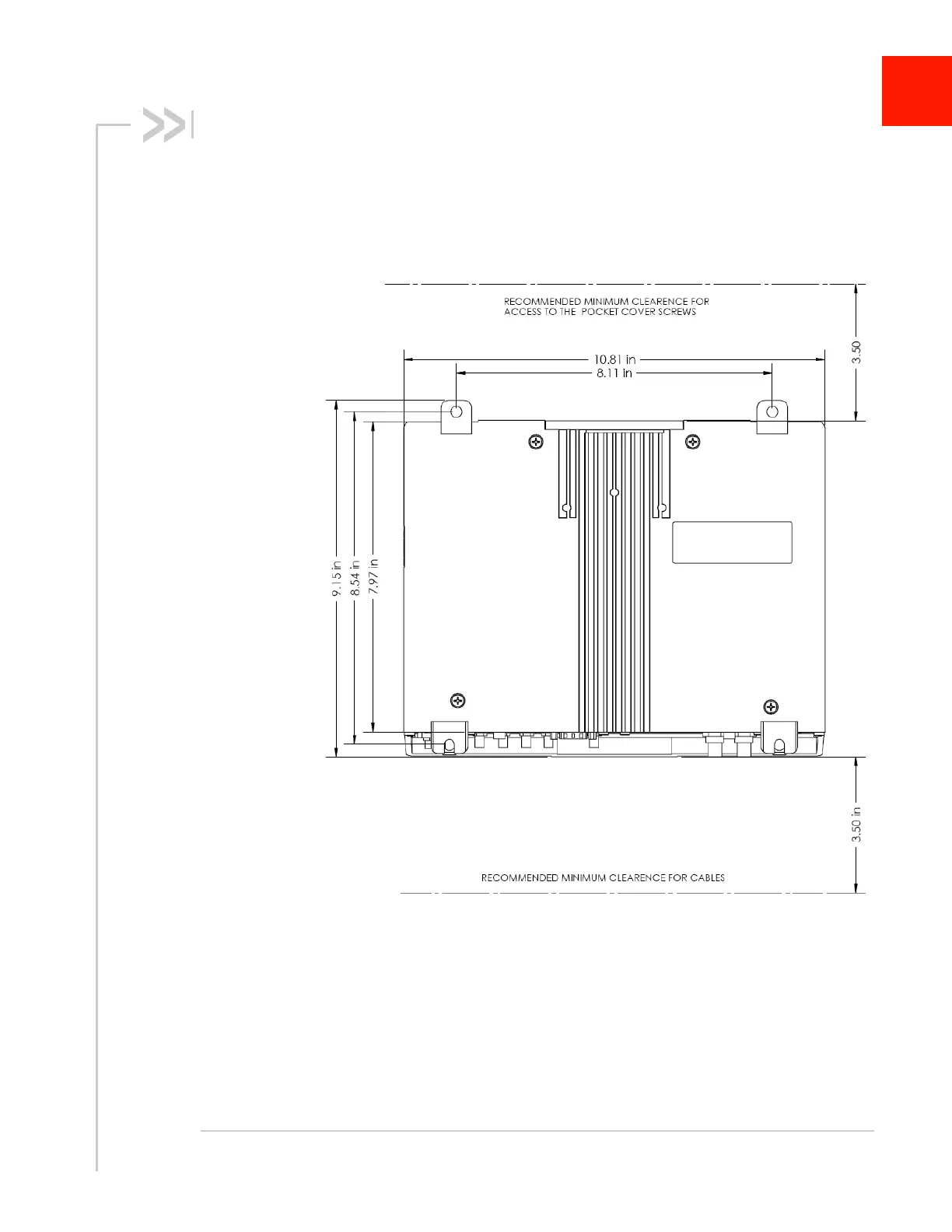

Figure 5-1: oMG Mounting Holes and Recommended Clearance
